| Prod Model: |
HL-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
10mm |
| Shape: |
Round |
| Usage: |
Stone Cutting |
Product Description

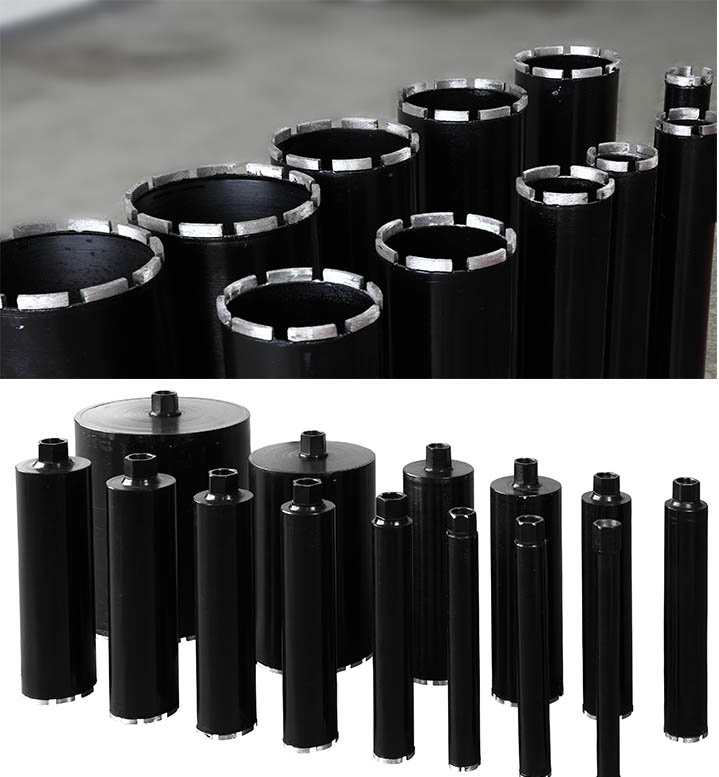

Diamond core drill bit
Specifications
1.Work with core drills
2.All are laser welding, can be used without water ,high frequency also available .
3.Different sizes avaliable
1.high frequency, silver welding for wet drilling
2.Laser welded, silver welding for wet or dry drilling
All high diamond drill bits are laser welded for superior strength 3 times stronger than conventional brased bits.
Suitable for dry & wet drilling.
Different sizes avaliable (diameter:32mm-350mm)
Standard length: 400mm, other length also avaliable upon requirements
Standard connecting threads: 1 1/4"-7UNC, (M33 ,M22 also avaliable)
Different color avaliable (minimum quantity 20 pcs to start)
Selection chart
| Diameter | Length | threads |
| 32mm | 400mm | 1 1/4"-7UNC |
| 38mm | 400mm | 1 1/4"-7UNC |
| 51mm | 400mm | 1 1/4"-7UNC |
| 63mm | 400mm | 1 1/4"-7UNC |
| 76mm | 400mm | 1 1/4"-7UNC |
| 83mm | 400mm | 1 1/4"-7UNC |
| 89mm | 400mm | 1 1/4"-7UNC |
| 102mm | 400mm | 1 1/4"-7UNC |
| 108mm | 400mm | 1 1/4"-7UNC |
| 114mm | 400mm | 1 1/4"-7UNC |
| 127mm | 400mm | 1 1/4"-7UNC |
| 132mm | 400mm | 1 1/4"-7UNC |
| 150mm | 400mm | 1 1/4"-7UNC |
| 159mm | 400mm | 1 1/4"-7UNC |
| 168mm | 400mm | 1 1/4"-7UNC |
| 180mm | 400mm | 1 1/4"-7UNC |
| 200mm | 400mm | 1 1/4"-7UNC |
| 219mm | 400mm | 1 1/4"-7UNC |
| 250mm | 400mm | 1 1/4"-7UNC |
| 299mm | 400mm | 1 1/4"-7UNC |
| 350mm | 400mm | 1 1/4"-7UNC |
| | | |
|
Drill bits
high frequency, silver welding for wet drilling |
| Diameter | Length | threads |
| 25mm | 400mm | 1 1/4"-7UNC |
| 27mm | 400mm | 1 1/4"-7UNC |
| 32mm | 400mm | 1 1/4"-7UNC |
| 38mm | 400mm | 1 1/4"-7UNC |
| 40mm | 400mm | 1 1/4"-7UNC |
| 44mm | 400mm | 1 1/4"-7UNC |
| 51mm | 400mm | 1 1/4"-7UNC |
| 57mm | 400mm | 1 1/4"-7UNC |
| 63mm | 400mm | 1 1/4"-7UNC |
| 71mm | 400mm | 1 1/4"-7UNC |
| 76mm | 400mm | 1 1/4"-7UNC |
| 83mm | 400mm | 1 1/4"-7UNC |
| 89mm | 400mm | 1 1/4"-7UNC |
| 102mm | 400mm | 1 1/4"-7UNC |
| 108mm | 400mm | 1 1/4"-7UNC |
| 114mm | 400mm | 1 1/4"-7UNC |
| 120mm | 400mm | 1 1/4"-7UNC |
| 127mm | 400mm | 1 1/4"-7UNC |
| 132mm | 400mm | 1 1/4"-7UNC |
| 150mm | 400mm | 1 1/4"-7UNC |
| 159mm | 400mm | 1 1/4"-7UNC |
| 168mm | 400mm | 1 1/4"-7UNC |
| 180mm | 400mm | 1 1/4"-7UNC |
| 200mm | 400mm | 1 1/4"-7UNC |
| 220mm | 400mm | 1 1/4"-7UNC |
| 245mm | 400mm | 1 1/4"-7UNC |
| 300mm | 400mm | 1 1/4"-7UNC |
