| Prod Model: |
JL-LWDB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Laser Welded |
| Size: |
D350mm |
| Min Quantity: |
10PCS/Size |
| Shape: |
Round |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting,Concrete Cutting |
Product Description

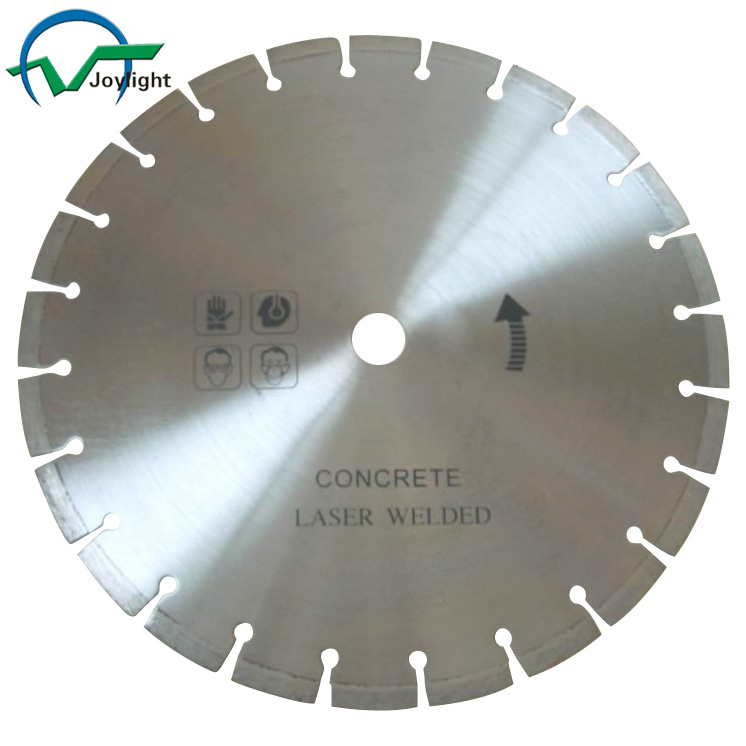

Laser Welded Diamond Saw Blade (JL-LWDB)
1.Applicable for cutting concrete, hard paver, refractory material,reinforced concrete wall etc.
2.Laser welded bond ensures safety and durability.
3.Dry cut is available and wet cut is better.
4.Size: D400mm segment size:40*10*3.3
other sizes : 8"-30"are available
5.Sharpness: 30% Faster than normal segments. Noise reduction by 30%. Save 20% power absorption.
6. Cutting life: 30%-40% Higher than normal segments.
Our Excellent blade cutting speed and long cutting life,guarantee the lowest cutting cost and perfect cutting edge(smooth cutting).To get the detailed data,please feel free to contact us.
| Diameter (mm) | Specification LxWxH (mm) | Segment Number | Cutting depth (m2/day) | Feed speed (m/min) | Cutting speed(m2/h) | Output(m2/disc) |
| 200 | 40x3.2x8/10 | 14 | 20 | 3~5 | 1~3 | 12~15 |
| 250 | 40x3.2x8/10 | 18 | 20 | 3~5 | 1~3 | 14~17 |
| 300 | 40x3.2x10/12 | 21 | 20 | 3~5 | 1~3 | 16~20 |
| 350 | 40x3.2x10/12 | 24 | 20 | 3~5 | 1~3 | 18~23 |
| 400 | 40x3.4x10/12 | 28 | 20 | 3~5 | 1~3 | 20~25 |
| 450 | 40x3.6x10/12 | 32 | 20~50 | 2~4 | 1~3 | 22~27 |
| 500 | 40x4x10/12 | 36 | 20~50 | 2~4 | 1~3 | 35~47 |
| 550 | 40x4.6x12 | 40 | 20~50 | 2~4 | 1~3 | 40~52 |
| 600 | 40x4.6x10/12 | 42 | 20~50 | 2~4 | 1~3 | 43~57 |
| 700 | 40x5x10/12 | 46 | 20~50 | 2~4 | 1~3 | 65~85 |
| 750 | 40x5.5x10/12 | 48 | 20~50 | 2~4 | 1~3 | 77~97 |
| 800 | 40x5.5x10/12 | 50 | 20~50 | 2~4 | 1~3 | 85~105 |
| 850 | 40x6.0x10/12 | 54 | 20~50 | 2~4 | 1~3 | 92~110 |
| 900 | 24x6.9/6.1x13 | 64 | 30~60 | 1.5~4 | 2~3 | 200~270 |
| 1000 | 24x6.9/6.1x13 | 70 | 30~60 | 1.5~4 | 2~3 | 220~300 |
To cater the need of various industries, Hongkong Joylight International Industrial Co., Ltd is one of dynamic companies in China which is specializing in Manufacturing and Supplying a wide range of drill bits, diamond tools, woodworking tools, power tools accessories etc including diamond saw blades, HSS drill bits, SDS drill bits, TCT saw blade, diamond tools, chisels, grinding cup wheels, auger drill bits, hole saw, tools set, household tools kit, hand tools, power tools etc for past over 16 years.
We have been emphasizing on quality and service from the beginning. Improving the quality-price ratio of the products and helping clients strengthen their market competition are not only our everlasting aims but also the steps for improving our competitive forces.
Therefore, our products are well accepted by many customers from all over the world, mainly in North America, Asia, Europe, MID East, South America and other countries and regions.
For a completive quotation or any further information, please don't hesitate to contact us at any way. Our sales staff will be pleased to assist you with our best.
