| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Graininess: |
100# |
| Thickness: |
10mm |
| Shape: |
Round |
| Customized: |
Customized |
| Usage: |
Stone Cutting, Drilling, Abrasive and Carving, Engineering Material |
| Manufacturing Arts: |
Cutting |
| Kind: |
Diamond Drill |
Product Description
Specifications
1.OEM thinwall bit
2.drilling glass,concrete ceramic,marble and granite
3.customized products
4.professional recommendation

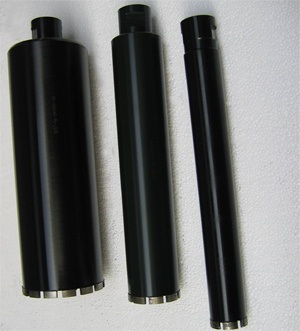

Thin Wall Core Bits
1.OEM bit,competitive price
2.drilling glass, ceramic, marble and granite and concrete
3.good quality,fast drilling speed 30mm/min
application:
1.for drilling glass, concrete,ceramic, marble and granite stone,concrete and asphalt etc
2.Laser welded can keep its long lifetime
available size:
DIAMETER
SEG. DIMENSIONS
TUBE LENGTH
THREAD
ITEM NO.
INCH
MM
THICK
HEIGHT
L
M
BCGW0100
1"
25.5
3.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0125
1-1/4"
32
3.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0150
1-1/2"
38.1
3.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0175
1-3/4"
44.5
3.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0200
2"
51.5
3.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0250
2-1/2"
63.8
3.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0300
3"
76.2
3.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0350
3-12"
89.0
3.8mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0400
4"
101.8
3.8mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0500
5"
127.2
4.2mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0550
5-1/2"
140.0
4.2mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0650
6"
152.4
4.3mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0700
7"
178.5
4.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0800
8"
203.2
4.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW0900
9"
229.0
5.0mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW1000
10"
254.0
5.0mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW1200
12"
305.0
5.5mm
10mm
14"(350mm)
1-1/4"-7UNC
BCGW1400
14"
356.0
5.5mm
10mm
14"(350mm)
1-1/4"-7UNC
we also provide different size according to customer's requirements
Chenguang machinery & Electric Equipment Co. Ltd specialized in development, production, and marketing of ultra-hard materials.
We started to provide high quality synthetic diamond to domestic diamond tool manufacturers since1993. We utilize a wide range of advanced production equipment and test instrumentation in an environment using strict quality control procedures for all our products. As a diamond supplier; We provide a wide range of diamond products and solutions for many well-known Chinese enterprises. Among these enterprises are more than 20 well-known enterprises who have enjoyed at least 10 years with us; We are proud to mention that our products are routinely exported worldwide since 2010, the stable quality and professional service is well appraised by huge users.
Our main superhard matierial products include: Synthetic diamond, Diamond saw blade, Diamond Drill bit, welcome friends from home and abroad to cooperate with us and create a brilliant future.
