| Prod Model: |
YCLF004-024 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technology: |
Laser Welded |
| Body Material: |
50mn2V |
| Segment Thickness: |
2.2mm-4mm |
| Segment Height: |
10mm |
| Segment Length: |
40mm |
| Segment Teeth: |
8-42 |
| Color: |
Any Color |
| Package: |
1PC/White Box |
| Weight: |
0.15-7.3kg |
| Application: |
Cutting Concrete |
| Kind: |
Handheld Saw |
| Manufacturing Arts: |
Welding |
| Graininess: |
Soft to Hard |
| Thickness: |
2.2-4mm |
| Usage: |
Concrete Cutting |
| Brand: |
OEM |
| Saw Blade External Diameter: |
105 - 600 Mm |
| Specification: |
4-24 Inches |
Product Description

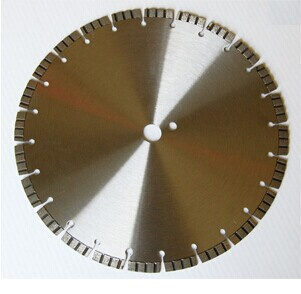

Laser welded diamond blades are made by the most advance and highly automatic laser welding technology. Diamond segments are firmly welded to the steel core by laser micro-fusion. Laser welded diamond blades are the most powerful diamond blades for they have Tough bonding, excellent stability, fast cutting and durable life. They even have an extraordinary performance on dry cutting without segment loss.
| ITEM | DIAMETER | ARBOR | SEGMENT DIMENSION | SEGMENT |
| NO. | INCHES | MM | MM | THICK | HEIGHT | NO. |
| YCLF004 | 4" | 105 | 16/20/22.23 | 2.2 | 8/10/12 | 8 |
| YCLF043 | 4.3" | 110 | 16/20/22.23 | 2.2 | 8/10/12 | 8 |
| YCLF045 | 4.5" | 115 | 16/20/22.23 | 2.2 | 8/10/12 | 9 |
| YCLF005 | 5" | 125 | 20/22.23 | 2.2 | 8/10/12 | 10 |
| YCLF006 | 6" | 150 | 20/22.23 | 2.2 | 8/10/12 | 12 |
| YCLF007 | 7" | 180 | 22.23/25.4 | 2.4 | 8/10/12 | 13 |
| YCLF008 | 8" | 200 | 22.23/25.4 | 2.5 | 8/10/12 | 14 |
| YCLF009 | 9" | 230 | 22.23/25.4 | 2.6 | 8/10/12 | 16 |
| YCLF010 | 10" | 250 | 22.23/25.4 | 2.8 | 8/10/12 | 17 |
| YCLF012 | 12" | 300 | 25.4 | 3 | 8/10/12 | 20 |
| YCLF014 | 14" | 350 | 25.4 | 3 | 8/10/12 | 24 |
| YCLF016 | 16" | 400 | 25.4 | 3.2 | 8/10/12 | 28 |
| YCLF018 | 18" | 450 | 25.4 | 3.6 | 8/10/12 | 32 |
| YCLF020 | 20" | 500 | 25.4 | 3.6 | 8/10/12 | 36 |
| YCLF024 | 24" | 600 | 25.4 | 4 | 8/10/12 | 42 |
