| Price: | US $ 2-10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | 15DN0101002 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: | 27-250mm |
| Length: | 120/160/370/450 |
| Seg.Thickness: | 3.8/4.0/4.5mm |
| Blade Welding Technology: | Laser/Silver Welding |
| Seg.Height: | 8/10mm |
| Thread: | 5/8"-11, 11/4"-7 |
| Connection: | 11/4-7unc, 1/2bsp,5/8-11'',M14, |
| Application: | for Granite,Marble,Concrete and Construcion |
| Feature: | Sharpness,Smooth Cutting |
| Use: | Granite,Marble,Concrete and Construcion |
Type: Laser welded diamond core drill bits for wet drilling reinforced concrete, 1-1/4"UNC connection thread concrete drilling diamond core bits, professional China diamond core drill bits manufacturer and supplier, laser welded wet drilling diamond core drill bits, diamond core drill bits for concrete brick wall.
Features: Drill aggressively with long working life, somooth drill with good balance, widely used in professional construction projects, high precision steel core tube, working length 450mm.
Applications: Concrete, reinforced concrete, brick, block, general building materials.
Machinery: Hydraulic Drilling machine, electric drilling machine, electric portable drill, hand held core drill, stand core drill.
Product Information
| Item Number:15DN0101 | |||||
| Description:*Silver brazed diamond core drill for wet cutting building materials such as concrete, bricks, granite, marble, stone,cements, etc. High professional quality to fast cut reaching 12-15meters. *Max. cutting depth 450mm. | |||||
| Diameter (D) | Max Coring Depth(C) | Overall Length(L) | Connecting | Item Number | |
| Metric(mm) | Inches | mm | mm | ||
| 51 | 2" | 450 | 500 | 1-1/4"UNS | 15DN0101001 |
| 58 | 2-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101002 |
| 63 | 2-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101003 |
| 70 | 2-3/4" | 450 | 500 | 1-1/4"UNS | 15DN0101004 |
| 78 | 3" | 450 | 500 | 1-1/4"UNS | 15DN0101005 |
| 83 | 3-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101006 |
| 89 | 3-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101007 |
| 102 | 4" | 450 | 500 | 1-1/4"UNS | 15DN0101008 |
| 112 | 4-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101009 |
| 121 | 4-3/4" | 450 | 500 | 1-1/4"UNS | 15DN0101010 |
| 127 | 5" | 450 | 500 | 1-1/4"UNS | 15DN0101011 |
| 132 | 5-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101012 |
| 140 | 5-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101013 |
| 152 | 6" | 450 | 500 | 1-1/4"UNS | 15DN0101014 |
| 159 | 6-1/4" | 450 | 500 | 1-1/4"UNS | 15DN0101015 |
| 165 | 6-1/2" | 450 | 500 | 1-1/4"UNS | 15DN0101016 |
| 182 | 7" | 450 | 500 | 1-1/4"UNS | 15DN0101017 |
| 205 | 8" | 450 | 500 | 1-1/4"UNS | 15DN0101018 |
| 230 | 9" | 450 | 500 | 1-1/4"UNS | 15DN0101019 |
| 255 | 10" | 450 | 500 | 1-1/4"UNS | 15DN0101020 |
| 300 | 12" | 450 | 500 | 1-1/4"UNS | 15DN0101021 |

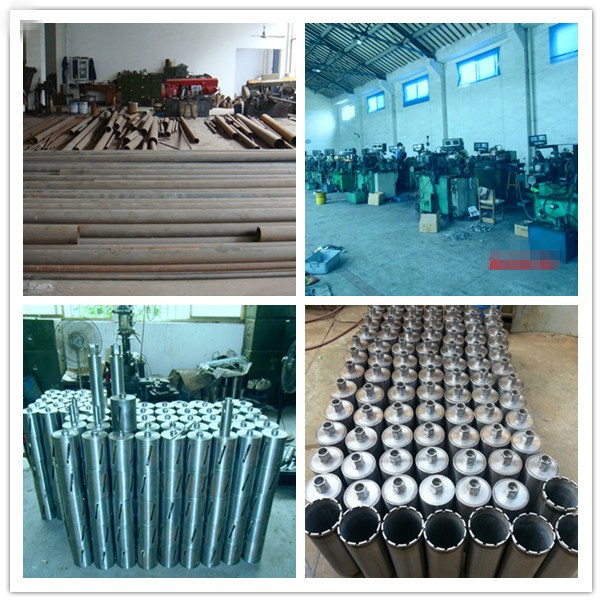

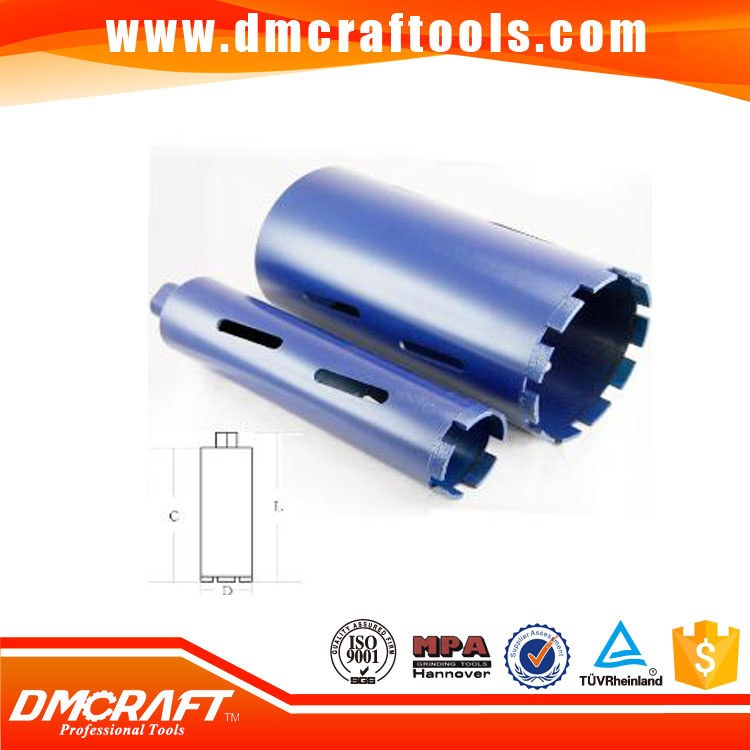

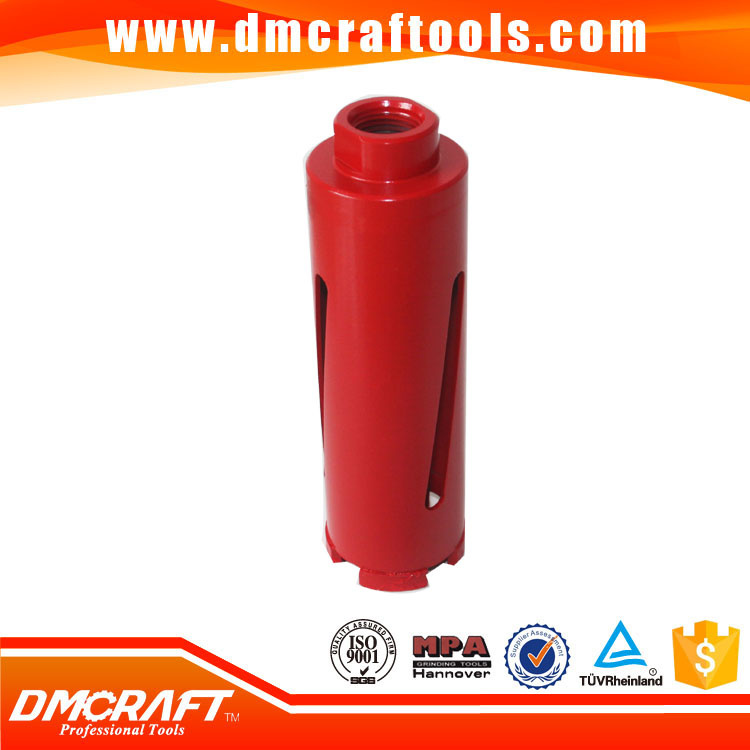

Product Picture
Packing&shipping
Inner paper box or blister card and outer carton box, white box or pallet
Shipping
1. TNT/FedEx/DHL/UPS for samples or under 45KG weight goods , Door to Door.
2. By Air or by Sea for batch goods,from airport(seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7days for samples; 2-3.5 weeks for batch goods
