Lb-10 & B-18 Line Array Speaker PRO Speaker Outdoor Active Sub-Woofer Professional Speaker

Lb-10 & B-18 Line Array Speaker PRO Speaker Outdoor Active Sub-Woofer Professional Speaker
Price: Negotiable/Set
Min Order: 5/Set
Pay Type: L/C,T/T,D/P
Contact Supplier
JIANGMEN BOWAY SOUND EQUIPMENT CO., LTD.
Showroom Product Company Profile
Prod Model: LB-10 & B-18
Noise: ≥105dB
Hi-Fi: Not Hi-Fi
Operation Mode: Wire / Remote Control
Speaker System: 2.0 Channel
Speaker Material: Wood
Application: Commercial
Certification: CCC
Monitor: LED Screen
THD: <0.005%

Product Description

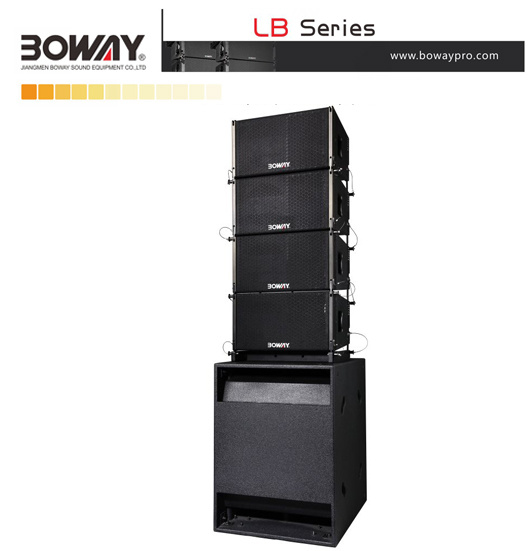

LB series is a avtive mini line array speaker system,which can support multiple line array combining styles,The very high sound performance makes LB line array system the ideal tool for small and portable applications.

  LB system's very compact size,shape and equipment are designed to provide a perfect transportation and installation,LB system cabinet features can be quickly and easily assembled on the ground and lifting.It composed of two midules,one for the full and one for the bass frequencies.




LB-10 is the full frequency module and is equipped with two 1.75"neodymium compression drivers and one 10"high power neodymium woofer.

•Two 1.75"High frequency compression driver with 1" exit throat

•10" neodymium woofer with 3"voice coil

•High frequency constant direction:120˚ H×10˚V

•Maximum sound pressure:130dB SPL

  LB -12 is the full frequency module and is equipped with two 1.75"neodymium compression drivers and one 12" higt power neodymium woofer.

•Two 1.75" High frequency compression driver with 1" exit throat

•12"neodymium woofer with 3" voice coil

•High frequency constant direction:120˚H×10˚V

•Maximum sound pressure:132dB SPL

  LB-18S is a active bass frequency section of the system and features ong 18" woofer for a perfect and poweful bass response.

•Built-in three channel digital amplifier

•Two channel for LB-10 2×600W/8Ω,one channel for LB-18S 1000W/8Ω

•Built-in 16 DSP effects,can switch through 16-bit


ModelLB-10B-18
Components

LF 1* 10" (250mm)

HF 2*1.75" (44mm)

LF 1* 18" (450mm)
Connectors2* NEUTRIK NL42* NEUTRIK NL4
Frequency Response60Hz- 20KHz38Hz-320Hz
Sensitivity (1W/1M)100 dB102 dB
Maximum Sound Pressure130 dB131 dB
Rated Power400 W800 W
Maximum Power800 W1600 W
Nominal Impedance8 Ohm8 Ohm
Recommended Amplifier500 to 800 W into 4 OhmActive module (1200W)
Dimensions (H*W*D)280 * 500 * 355 mm768* 568 * 885 mm
Weight17 Kg60 Kg

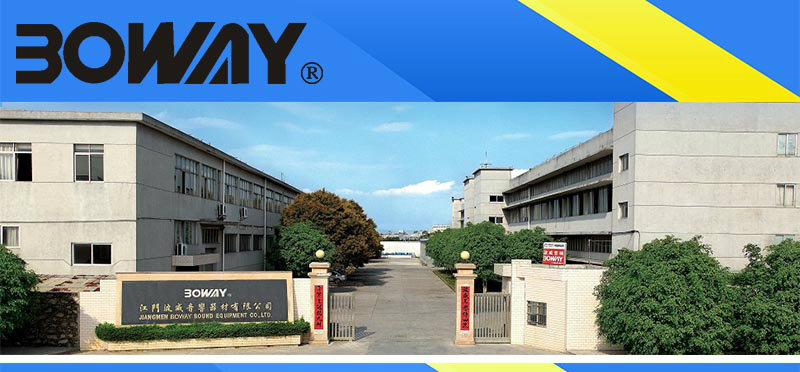

Company Overview

We, as a global manufcturer of professional sound equipment, has for many years been committed to provide customers with beautiful sound quality, innovative products with independent intellectual property rights. Our aim is to create the best audio products, providing maximum value for customers!

In 1995 the company was founded and rapidly growth, up to now, we already have been one of the professional audio major manufacturer in China. Our products, especially professional speakers & amplifier, renovate in the industry, attracting lots of new excellent customers every year, and we established long-term win-win cooperation relationship with them. As we are not doing an ordinary product, we are doing the product which can create maximum value for our customers and provide the best quality.

Development Course

1995 BOWAY company was found and made new professional speaker, in order to meet the growing demand, our company investments continuous.

1996 Launched power amplifier along with speaker to be more competitive.

1997 Launched Home Theater amplifier and speaker

1998-2002 BOWAY product rapidly growth

2003 BOWAY moved to a new industrial eatate which covers an area of 60 acres, the workshop occupies about 30000 square meters and expands the production lines.

2004-2007 BOWAY becomes one of the big international OEM and ODM supplier for speaker and amplifier

2008 BOWAY passed ISO9001: 2000 certification

2009 BOWAY passed CE, CB, CCC, RoHS, FCC, TIS certification. Products have already been sold in more than 150 countries with no risk.

2010 New test room established, and got SGS certification

2011 New Karaoke test room established

2012-2014 Got success in sales performance, creating more business

2017 Insisted on one faith for 22 years

In the future, you will see more our most updated technology.

Faith: The remarkable quality, reveals music charm, creat best value for our customers.
