| Prod Model: |
TXS-LCSC03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector: |
LC to Sc |
| Polished: |
Upc |
| Fiber: |
OS2 9/125 |
| Insertion Loss: |
0.2dB |
| Return Loss: |
50dB |
| Sheath: |
PVC |
| Cable Od: |
2.0mm |
| Cable Color: |
Yellow |
| Strengthen Member: |
Aramid Yarn |
| Operating Temperature: |
-20c to 60c |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
BV |
Product Description

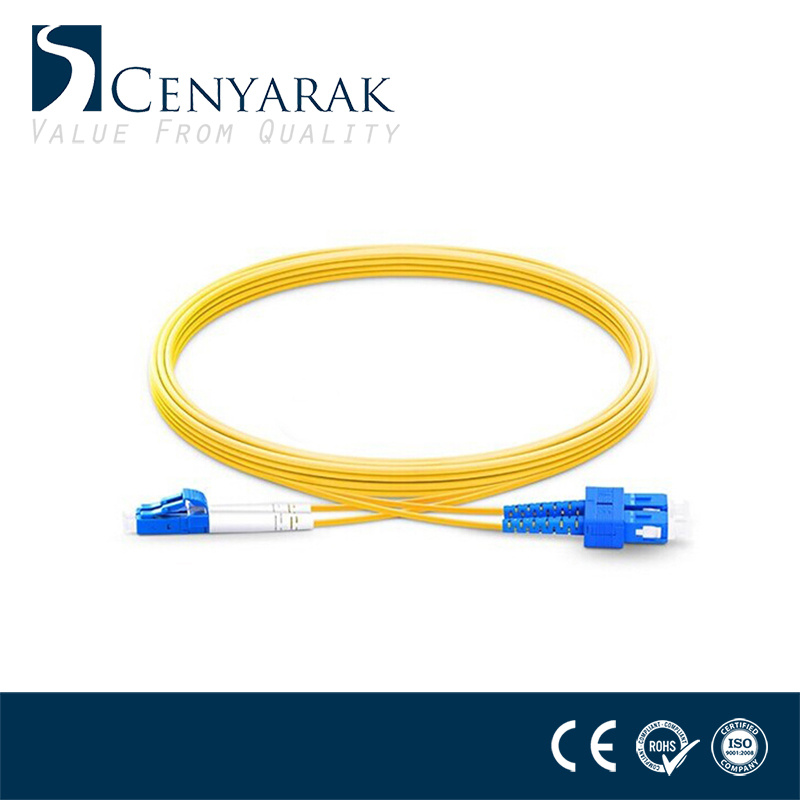

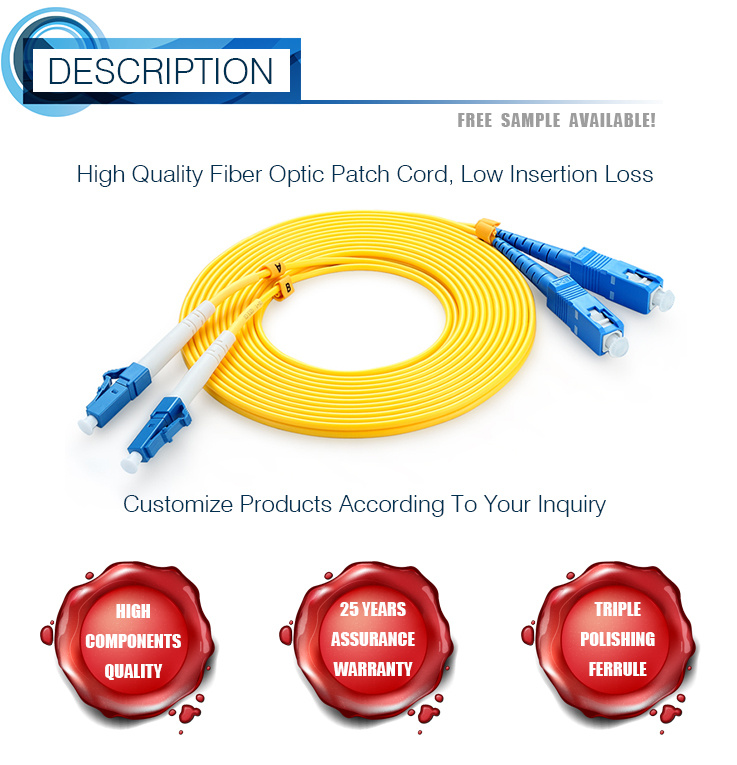

LC SC PC Fiber Optic Patch Cord
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Cenyarak also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Product FeaturesClass A fiber
provides better transmission performance;
Meets ISO 11801 ED2.2, EIA/TIA 568-C.3;
High quality environmental PVC jacket;
Triple ultra polished ceramic ferrule.
Specifications| Fiber: | Class A Singlemode OS2 | Connector Type: | LC to SC |
| Fiber Counts: | Duplex | Housing Material: | Plastic (UL94V-0) |
| Sheath: | PVC/LSZH | Insertion Loss: | 0.2dB |
| Outer Diameter: | 2.0 mm | Return Loss: | 50dB |
| Cable Weight: | 7.6 kg/km | Cladding Non-circularity: | ≤ 1% |
| Bending Radius: | 0.25 to 0.75dB @1550nm | Core/cladding Concentricity: | ≤ 6.0μm |
| Crush Resistance: | 1000N | Minimum bending radius: | 10x outside diameter |
| Ferrule Material: | Ceramic (ZrO2) | Typ.Attenuation @1310nm: | ≤ 2.8dB/km |
| Ferrule Polished: | UPC | Typ.Attenuation @1550nm: | ≤ 0.8dB/km |
ApplicationsDesigned for fiber optic adapters, hubs, switches, routers, dsl/cable modems, patch panels and other device
Fiber optic system applications;
FTTX distribution;
Handle bandwidth-intensive applications.
Cenyarak is a high-tech enterprise specialized in manufactureing computer network cables, connectors, fiber optic transmissions and other communication products.Cenyarak has a rich experience in providing services to top tier insistutions in the enterprise, health-care, education and carrier industries.
We have our own independent import and exports rights and we design and produce the products according to customer's requests.The prices of our products are evidently lower than the others which are the same grade on the condition of high quality.
FAQQ1. Can I have a sample order for your products?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3~7 days, mass production time needs 2-3 weeks for order quantity less than one container. Q3. Do you have any MOQ limit for network patch cord order?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: Airline and sea shipping are also optional. Shipping time depends on distance. Q5. How to proceed an order for network patch cord?A: Firstly, please let us know your requirements or application. Secondly, We provide specification according to your inquiry. Thirdly, customer confirms the samples and formal order. Fourthly, We arrange the production. Q6. Is it OK to print my logo on network patch cord products?A: Yes. Please inform us formally before our production and logo printing need 10000 PCS MOQ. Q7: Do you offer guarantee for the products?A: Yes, we offer 25 years warranty to our standards products.Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.

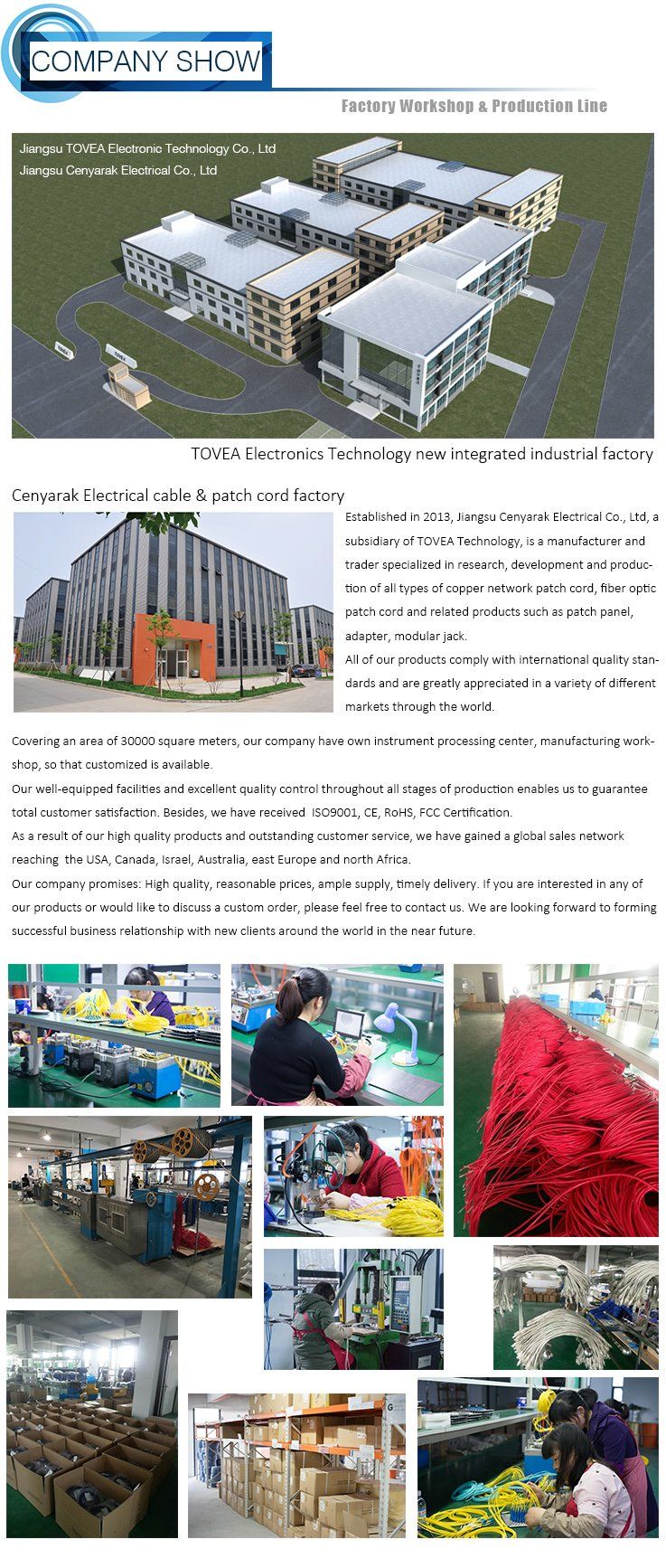

Established in 2013, Jiangsu Cenyarak Electrical Co., Ltd is a manufacturer and trader specialized in research, development and production of all types of Fiber Optic Patch Cords and related products(). We are located in Jiangsu Nanjing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets through the world.
Covering an area of 800 square meters, our company have own instrument processing center, manufacturing workshop, so that customized is available.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received _ISO90012008.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, South East Asia, Europe, Africa ect.
Our company promises: High quality, reasonable prices, ample supply, timely delivery. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
