| Price: | US $ 279-319/Piece |
|---|---|
| Min Order: | 162/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | LD-DL20000 |
|---|---|
| Motor: | 5.6HP/4.2kw,Series Wound |
| Type: | Electric Winch |
| Power Type: | Electric |
| Brand: | Lianda Winch |

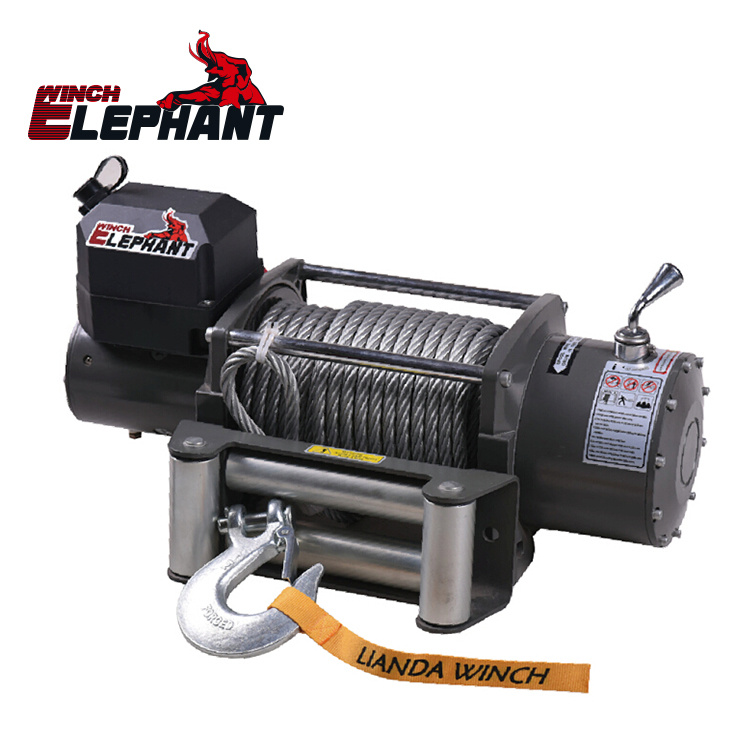

LD-DL20000 10TONS POWER WINCH
Performance | 12VDC/24VDC |
Rated line pull | 20000lb(9072kg) |
Motor | 6.5HP/4.8KW,Series Wound |
Control | Remote switch 12ft(3.7m)lead |
Gear train | 4 Stage Planetary |
Gear reduction ratio | 544:1 |
Braking Action | Automatic Load-holding Brake |
Drum size | 3.5'(88mm) Diameter X 8.7'' (221.6mm) Length |
Cable | ø13mm.22m |
Fairlead | 4-Way Roller Fairlead |
Remote Control | Included |
Battery | Recommended:650CCA minimum for winching |
Weight | N.W.110bs(50kg)G.W.118.8bs(54kg) |
Overall Dimensions | (LxWxH)26.1'x7.7'x11'(662x196x280mm) |
Mounting Bolt Pattern | 10" x4.5" (254x114.3mm). |
Line Pull(lbs/kgs) | Une Speed FPM(m/min) | Motor(Amps) |
0 | 23.9(7.28) | 68A |
2000(907) | 12.2(3.7) | 100A |
4000(1814) | 9.3(2.8) | 155A |
6000(2721) | 7.4(2.25) | 185A |
8000(3629) | 6.0(1.83) | 235A |
10000(4536) | 5.1(1.55) | 275A |
12000(5443) | 4.4(1.34) | 330A |
15000(6803) | 3.3(1.0) | 425A |
17000(7711) | 2.95(0.9) | 495A |
20000(9072) | 2.62(0.8) | 430A |
Layer | Rated Une Pull(lbs/kgs) | Total Rope On Drum(ft/m) |
1 | 20000(9091) | 17.15(5.23) |
2 | 16216(7371) | 38.4(11.7) |
3 | 13636(6198) | 63.7(19.4) |
4 | 11764(5347) | 85(26) |
Performance | 12VDC/24VDC |
Rated line pull | 18000lbs(8181kg) |
Motor | 6.3HP/4.75KW,Series Wound |
Control | Remote switch 12ft(3.7m)lead |
Gear train | 3 Stage Planetary |
Gear reduction ratio | 432:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The Drum |
Drum size | Diameter 3.4'(89mm) Length9'(228.6mm) |
Cable | 12mmod 28m diameter(15/32''x92') |
Fairlead | 4-Way Roller Fairlead |
Remote Control | Included |
Battery | Recommended:650CCA minimum for winching |
Weight | N.W.110Ibs(50kg)G.W.118.8Ibs(54kg) |
Overall Dimensions | (LxWxH)21.8'x7.7'x9.8'(555x196x249mm) |
Mounting Bolt Pattern | 10''x4.5" (254x114.3mm) |
Line Pull(lbs/kgs) | Une Speed FPM(m/min) | Motor(Amps) |
0 | 23.9ft(7.3m) | 75A |
3600(1633) | 10.85ft(3.31m) | 155A |
7200(3266) | 8.01ft(2.44m) | 206A |
10800(4899) | 5.08ft(1.55m) | 308A |
14400(6531) | 4.1ft(1.25m) | 384A |
18000(8181) | 3.05ft(0.93m) | 501A |
Layer | Rated Une Pull(lbs/kgs) | Total Rope On Drum(ft/m) |
1 | 18000(8181) | 17.5(5.33) |
2 | 14544(6611) | 39.2(11.9) |
3 | 12201(5546) | 65.2(19.9) |
4 | 10508(4776) | 92(28) |
