| Prod Model: |
SCU1290 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ce Certification: |
Moduled Steel Frame Structure |
| High Speed&Precision: |
Stable Performance |
| Laser Power: |
100W 130W |
| Repested Accuracy: |
0.025mm |
| Bed Trop Distance: |
90mm |
| Max Loading Weight: |
35kg |
| Cutting Speed: |
24~45mm/S |
| Controlling System: |
Rd |
| Software: |
Rdcam(256MB) |
| Support Format: |
Plt, BMP, Dxf, T100, etc/ Win7 System |
Product Description

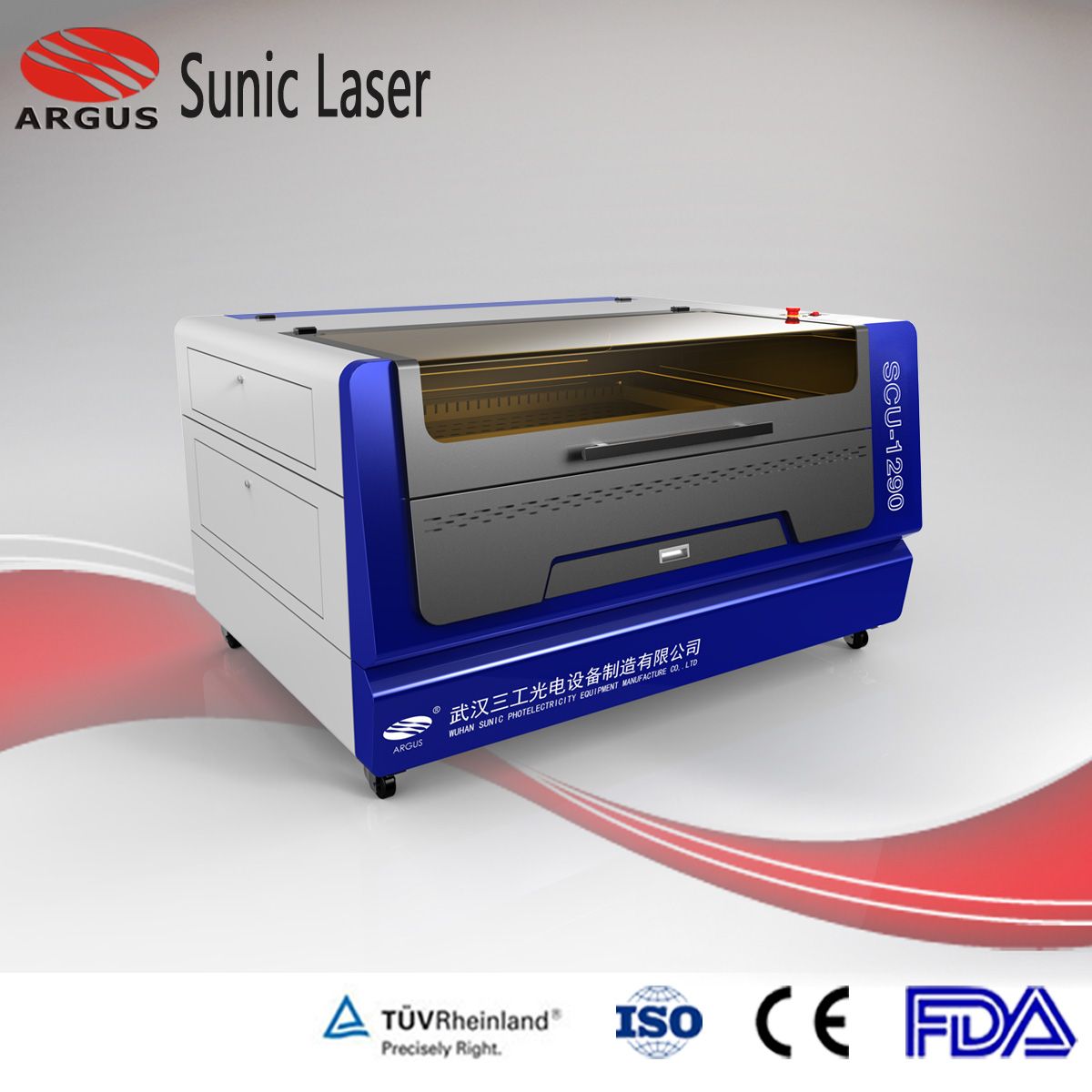

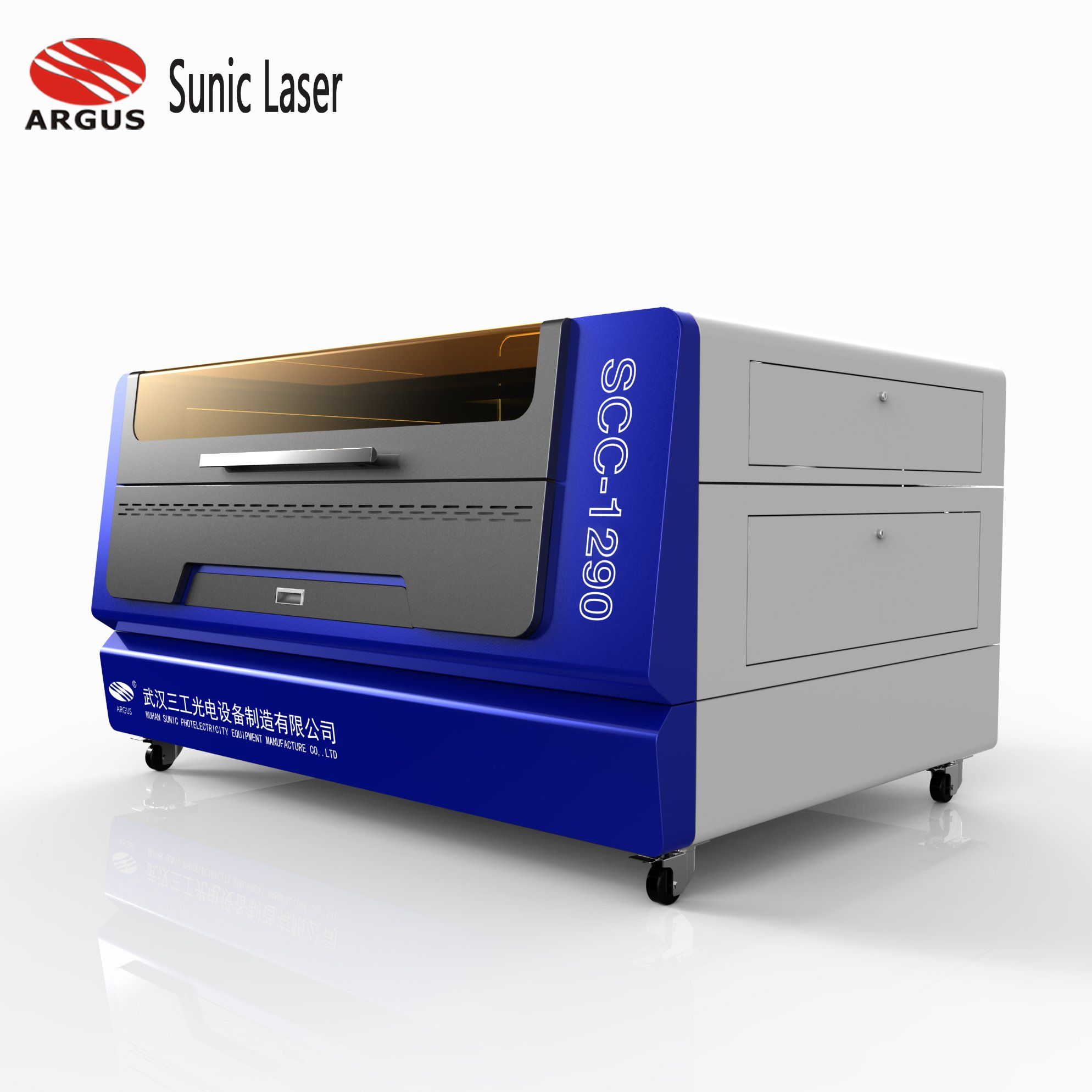

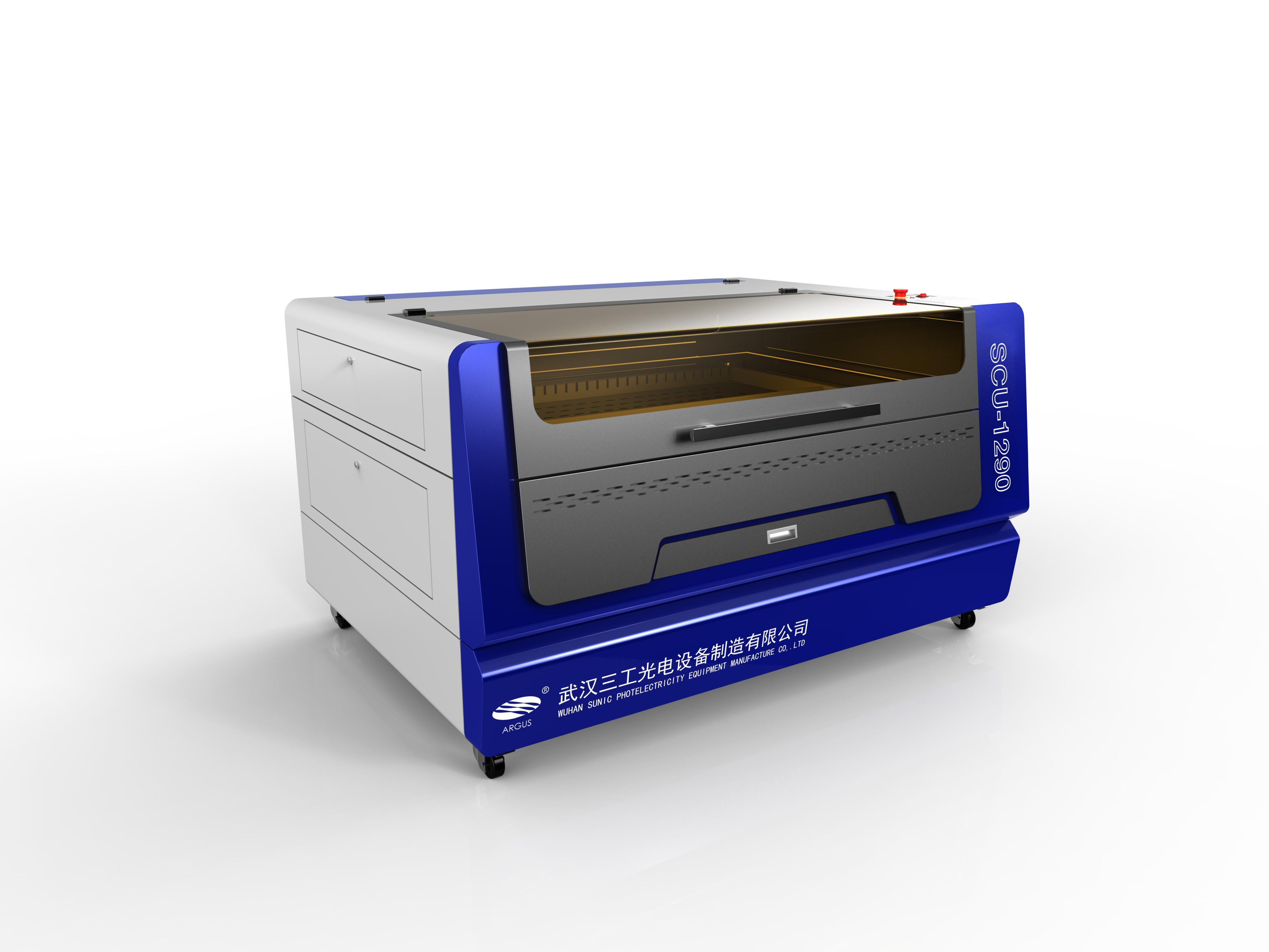

CO2 Mix Laser Cutting Machine SCU1290
| Name of Commodity | Type | Unit Price | Memo |
| Mix Laser Cutting Machine | SCU1290 | 14,500USD | Strictly produced with CE standard. |
| Payment Items | Lead Time | Warranty |
FOB Shanghai
(50% T/T In Advance, Balance Before Shipment) | 2 weeks | 1 year |
| Package Dimension: 2370*1550*1400mm; 5.2CBM |
| Description |
| Technical Index | Technical Parameter | | Working Platform Size | 1250x900mm | | Laser Power | 280W | | Controlling System | RD | | Software | RDCAM(256MB) | | Drive | Step Motor Drive System | | Transmission Way | Belt Transmission | | Support Format | PLT, BMP, DXF, T100, etc/ Win7 System | | Computer Interface | Standard Printer Port and USB Port | | Cutting Speed | ≤200mm/s | | Repeated Accuracy | ≤±0.25mm | | Min.Cutting Character | 0.1~1mm | | Max.Cutting Depth | Acrylic:25mm SS:2.5mm | | Cooling Ways | Circulation of Water Cooling | | Working Temperature | 0~35ºC | | Working Humidity | 5~95% | | Working Power | 220V/50Hz/3kVA(As Customized) | | Safety | Red Indication, Huff Protection, Emergency Switch etc | | Package | Standard Crate for Export | | The Machine Includes | Air Pump | | Exhausting Fan&Exhausting Pipes | | Water Chiller | | Auto-focus Laser Head |

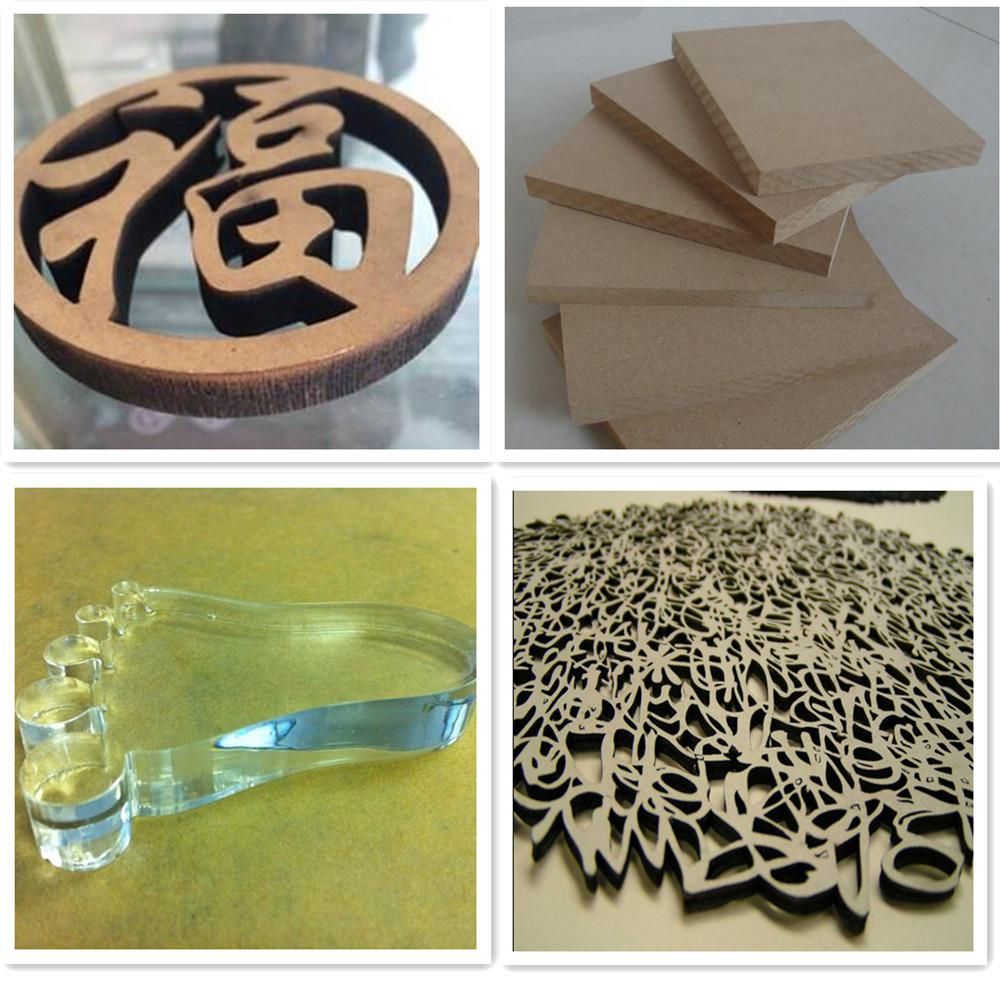

Samples
Machine

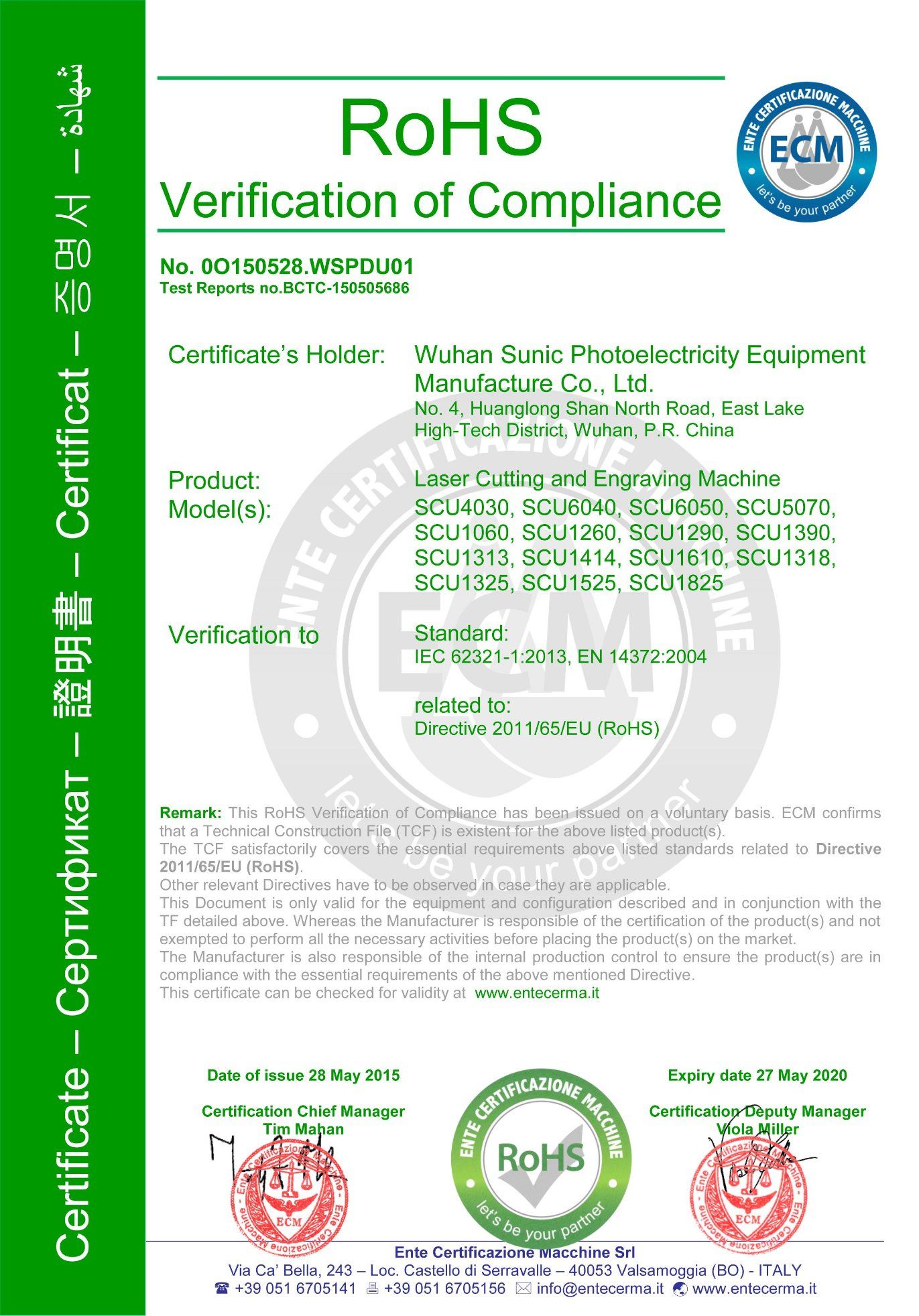

Certification
Wuhan Sunic International Trading CO.,LTD.
NO.4, Huanglong Shan North Road, East Lake High-Technology District, Wuhan City,Hubei, China.
Contact: Zenger
Tel: +86 15671685368
|
The Sunic Laser Co., Ltd began production in 1998 and is now one of the largest producers of industrial LASER equipment in China. With more than 200 employees (combined experience totals more than 1000 years! ), we have self-operation export and import rights to well over 80 different countries.
Since 1998, we have consistently weeded out older technology to implement the latest available technology in all of our 30+ LASER machines. The unparalleled growth of our company is evidenced in our four factory relocations over the last 7 years - each new premises allowing us to double the production capacity of the previous. Our sales of Scribing Machines are 85% domestic, making us the largest market occupier in this sector (in mainland China).
Aside from the Solar Industry, we supply a wide range of Marking Machines, Cutting Machines, and Engraving Machines that use the finest available German LASER sources where applicable. From cutting edge (no pun intended) Fibre LASERS to high-power CO2 LASERS, we will ensure that we provide you with the highest quality machine for your project - whilst maintaining a competitive price! Our mission is to provide you with consistently high quality in all areas of our business from the machines we make, through to our after-sales service. Our goal is to help you grow your business such that you come back to us for more of our quality products in the future.
