| Prod Model: |
16-40MM |
| Coupler Size: |
Jbcz Standard or Custormize |
| Certificate: |
Ce , ISO9001 , Aci-318, BS4449,Dcl , etc |
| Fatigue Test: |
2,000,000 Times |
| Coupler Samples: |
Global Available |
| Tensile Test: |
100% Bar Break Outside Coupler |
| Delivery Time: |
Within 10 Days If in Stock |
| Port: |
Shanghai Port |
| Service: |
Technical and Oversea Service After Sale |
| Payment: |
T/T Generally or LC According to Order Quantity |
| Rebar: |
Dia. From12~40mm |
| Standard: |
BSW |
| Material: |
Medium Carbon Steel |
| Connection: |
Mechanical Connection |
Product Description

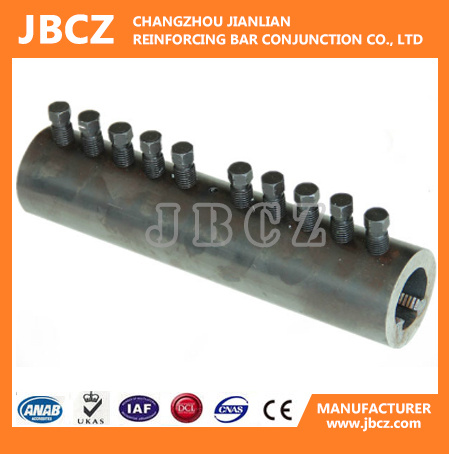

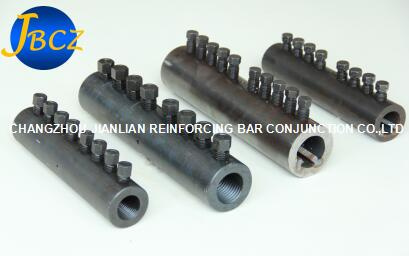

Lenton type bar lock coupler in building material
The advantage of Bar lock coupler:
Quick and easy to install,Bar Lock requires no special installation equipment. The high strength couplers are
excellent for new concrete construction or rehab projects. The Bar Lock rebar coupler system provides a cost
effective method for splicing smooth or deformed rebar in tension and/or compression applications.
Connection way of Bar Lock coupler:
JBCZ Bar Lock Coupler System provides a simple, quick, cost effective method for splicing smooth or deformed rebar in tension and/ or compression applications. Bar Lock couplers are effective when used as a "positional" coupler when the rebar is fixed in place or when the rebar is free to rotate. Bar Lock couplers utilize lock shear
bolts and serrated grip rails to mechanically splice the rebar.
This type of mechanical splice consists of a coupling sleeve with shearhead screws which are designed to shear off at a specified torque. The reinforcing bars are inserted to meet at a stop in the center of the coupling sleeve and the screws are tightened. The tightening process embeds the pointed screws into the bars. For one type splice, the screws force the bars into contact with internal gripping rails. For the other type of splice, the screws force the bars to wedge into the coupling sleeve's converging interior wall. The heads of the screws shear off at a prescribed tightening torque. The screws can be tightened using a standard socket wrench or pneumatic impact wrench. For making a splice between two fixed bars, coupling sleeves without a center stop are available. This sleeve can be slipped completely onto one bar and subsequently repositioned over teh two bar ends
| Diameter | OD(mm) | Length | Lock shear bolt quantity(pcs) | Tensile strength | Weight | Serrated grip rail quantity (pcs) |
| 12 | 34 | 140 | 6 | 135% yield strength | 0.75 | 2 |
| 16 | 43 | 160 | 6 | 135% yield strength | 1.08 | 2 |
| 20 | 48.3 | 204 | 8 | 135% yield strength | 1.69 | 2 |
| 25 | 54 | 258 | 8 | 135% yield strength | 2.51 | 2 |
| 32 | 71 | 312 | 8 | 135% yield strength | 6.07 | 2 |
| 40 | 81 | 484 | 12 | 135% yield strength | 11.63 | 2 |
How to Specify
A. By specific name: Bar Lock mechanical coupler system manufactured by JBCZ
B.By generic description: "Mechanical butt splices utilizing lock-shear bolts and internal serrated grip rails within the coupling sleeve. They shall exceed the specification requirements for both tension and compression specified by ACI 318 and the Uniform Building Code and be recognized by the International Code Council (ICC)."
Rebar Coupler Clients
JBCZ products have been to 30 countries over the world :
Saudi Arabia, Mexico, Poland,Colombia, Pakistan, Qatar, UAE , Japan ,France ,New Zealand ,India , Ukraine, Sudan, Brazl, Lebanon ,South Korea, Iran, Thailand , Argentina, Kuwait,Taiwan,Russia, Dominica , Turkey, Malaysia ,Jamaica,Ethiopia ,Zambia,Philippines, China
RFQ
Q: Are you trading company or manufacturer ?
A: We are factory. We are the FIRST manufacturer of rebar coupler since 1987.
Q: How long is your delivery time?
A: Generally it is within 5-10 days if the goods are in stock. or it is within 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge , but clients do not need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment 100% in advance. Can communicate.
B:All the payment go through Aliababa Onetouch or Alibaba assurance payment
| How to find good suppliers in China |
A good supplier should be at least 5 years
history and have export /import business
at least 3 years.
| JBCZ Company has been a manufacturer
of rebar coupler and connecting machine
which used to link two steel bar quickly in
construction projects since 1987. We have
been in this field for 29 years.
|
An excellent supplier must have professional
equipments to ensure the highest products quality.
| JBCZ Company has processional CNC
production line. |
Are samples available? If they don't have samples
readily available, they probably don't deal in your
product on a regular basis.
| Samples are available globally in
JBCZ Company .
|
Make sure the sales team can communicate in English
and understand of your basis requests ?
If you ask for information on a red cup and get sent
a sample of a blue , you will need to change
another one !
| JBCZ Company international department
colleagues have at least CET 6 English
Level.
|
Confirm the actual production location and ask for
certifications of the factory.
| JBCZ Company has the certification of the
JGJ107,BSB110,NF25-20-1,
UK STANDARD, American ISO, ACI 318 ,
BS4449, DIN1045 etc.
|
Does this company have some famous projects ?
| JBCZ products have been to 26 countries
over the world ,such as Saudi Arabia,
Mexico, India, Poland, Sudan, Columbia,
Pakistan, Qatar ,etc.
Of course , we also have huge number of
projects, such as Jeddah Water Pump
Station, Dubai Metro, Qinshan Nuclear
Power Plant, Qatar express way ,
Shanghai Oriental Pearl TV Tower ,etc.
|
Located in Heng Shan Qiao crossing of Shanghai-Nanjing Highway, Changzhou City, Jiangsu Province, China. JBCZ company was established in 1987, is a professional developer and manufacturer of rebar mechanical splice products, contains rebar processing machines and rebar couplers. We have four systems of machine:
1. Upset forging parallel thread machine and coupler
2. Rib peeling roll stamping machine and coupler
3. Cold extrusion press machine and coupler
4. Taper thread machine and coupler
The company has coupler streamline production workshop, mechanical precision production workshop, and equipped with engineering department in home and technical department which are responsible for the corresponding service for overseas. Company has an annual production capacity of 6 million 12-40mm reinforcing steel bar upset forging straight screw thread connection adapter sleeves, and more than 500 sets of machinery, which could well meet the requirements of major and key construction projects of home and overseas. The company has a perfect quantity, management and control system. We are strict to buy the raw materials, produce products and test the products. Our products and technology Have past GB/T19001-2000idt, ISO9001: 2000international quality management system and CE certification.
Our company supplies not only the products, but also good service. Our aim is to meet different clients' Requirments, and help clients to solve steel bar link problems in the project.
With more than 20 years development, we have ISO9001 certificate and CE certificate, Patent certificate for Upset forging parallel thread machine, the products were exported to five continents.
Our products have been used in following countries: United Arab Emirates, Ukraine, Poland, Sudan, Pakistan, Malaysia, Vietnam, Brazil, South Korea, Thailand, Iran, India, Mexico, New Zealand, Colombia, Ethiopia and Philippines etc.
We are looking forward to great cooperation with oversea customers based on mutual benefits. Please feel free to contact us for more details if you are interested in us.
