Lfr Series Linear Guide Rail Wheel Rollers Bearings

Lfr Series Linear Guide Rail Wheel Rollers Bearings
Price: US $ 1.15-1.19/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: LFR50/5-6 2RS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Chrome Steel
Size: 5*17*7*8mm
Stock: Rich
Quality: Best

Product Description

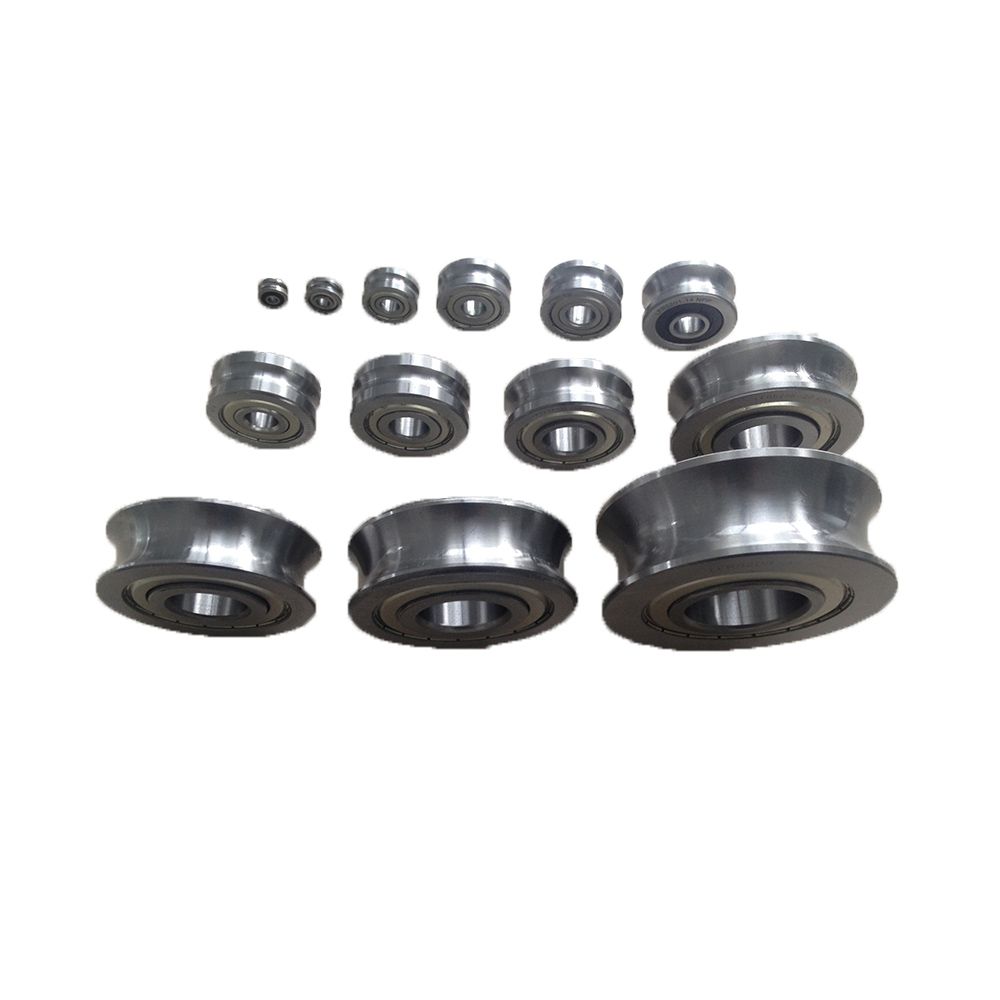

Guide rollers with a circular groove - LFR Series

1.LFR Series linear guide rail wheel rollers most widely used, economical and practical products that can fit in the cylindrical guide.
2.Contacting wheel and rail for two-point contact, having good contact performance.
3.Roller double row angular contact ball bearing design and thickening of the internal structure of the outer ring, the wheel has a higher carrying capacity.
4.The roller bearing steel with high-quality manufacturing, heat treatment, precision grinding machining, and are filled with long-life high-quality multi-purpose grease.Wheel dust metal dust cover (ZZ) or rubber seals (2RS).Can also provide the wheel with concentric or eccentric pivot, some specifications are also corrosion-resistant stainless steel roller.
Application of LFR series roller guide roller rail systems have the following characteristics:
1.The high-speed, low resistance, long life
The outer surface of the guide roller LFR series designed to Gothic shape, the roller work, wheel and rail forms an angle of 60 degrees for the two-point contact, friction resistance, load evenly to avoid the roller because the installation work and stress concentration caused by a manufacturing error, boundary effect, so that the rail system has a high-speed, low-power, long-life operating characteristics.
2.Easy to install
After the wheel and concentric or eccentric shaft axis, so installation is very easy to adjust the amount of eccentricity of the eccentric rollers can get the fitting preload.
3.Smooth running, low error, low noise operation
Dedicated processing equipment and testing equipment to ensure the accuracy of the shape of the wheel, mature processing technology and strict quality control procedure to make all of the rollers and the outer radial surface roundness good work, so that the rail system at run-time error pole small, smooth operation, low noise operation.



Specification as followings :

(mm)


≈(g)

Dw

D

D

C

B

A

Cw(Kn)

Cow(Kn)

LFR50/4NPP

3.5

5

4

13

6

7

8.04

1.05

0.85

LFR50/5-4NPP

R50/5-42RS

7.5

4

5

16

7

8

9

1.2

0.86

LFR50/5NPP

R50/5-62RS

8

6

5

17

7

8

10.5

1.27

0.82

LFR50/8NPP

R50/8-62RS

24

6

8

24

11

11

14

3.67

2.28

LFR50/8-8NPP

24

8

8

24

11

11

14.75

3.67

2.28

LFR5200KDD

R5200-8ZZ

50

8

10

32

14

14

18

5.6

3.6

LFR5201KDD

R5201-10ZZ

68

10

12

35

15.9

15.9

20.65

8.5

5.1

LFR5201-12KDD

R5201-12ZZ

68

12

12

35

15.9

15.9

21.75

8.5

5.1

LFR5201-14KDD

R5201-14ZZ

107

14

12

39.9

20

19

24

8.9

5

LFR5301KDD

R5301-10ZZ

130

10

12

42

19

15.9

24

13

7.7

LFR5202KDD

R5202-12ZZ

80

12

15

40

15.9

19

23.4

10

7.8

LFR5302KDD

R5302-10ZZ

163

10

15

47

19

20

26.65

16.2

9.2

LFR5204KDD

R5204-16ZZ

195

16

20

52

20.6

20.6

31

16.8

9.5











Packaging:


1.Neutral Package:Plastic Bag + Carton + Pallet;
2.Commercial Package:Plastic Bag + Box + Carton + Pallet;
3.As the clients' requirement.

Delivery:
1.Less than 1000 pcs , we will send by express.( Door to Door, Convenient ),
Or by  air transport.( Fastest and safest, but expensive )
2.More than 1000pcs , we will send by sea.( Cheapest, safe )

Payment:
1.Less than 1000 pcs , 100% T/T, Western Union in advance.
2.Between 1000-10000pcs, TT, Western Union, MoneyGram.
3.More than 10000pcs , TT, L/C ,Western Union, MoneyGram.



NANJING JPG BEARING & Quipment co. Ltd. /ABX Bearing Limited was founded in 2000 which is an whole seller of

Many kinds of bearings which include Taper roller bearing Deep groove ball bearings, cylindrical roller bearings and spherical roller bearings and so on.

Also we are agent of many world famous brand bearing. We devote to the business of sale of many world famous bearing.

In order to provide the best possible customer satisfaction, JPG/ABX Bearings limited has dedicated itself to quality metrics. It has developed separate customer service cells for providing technical services to our customers, where customers can get help for their technical, operational and maintenance problems.

Now JPG/ ABX bearings limited has serviced customers all over the world. Mainly marketing is Europe and South Asia, Middle East etc.

We look forward to providing you with the best bearing experience and customer satisfaction possible. Help us join you in making your organization globally competitive.

Our products as followings:

Taper roller bearings

Deep groove ball bearings

Pillow block bearings

Spherical roller bearings

Spherical Roller Thrust Bearing

Self-aligning ball bearings

Agricultural bearings

Thrust ball bearings

Cylindrical roller bearings

Angular contact ball bearings

Needle roller bearings

Wheel hub bearings

Conveyor bearing

Spherical plain bearing

Plummer Block

Automotive Clutch Release Bearing
