Light Duty Electric Chain Pipe Borer
| Price: |
US $ 1750/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ISM |
| Power: |
Electric |
| Type: |
Rotary Drilling Rig |
| Usage: |
Pipe & Pressure Vessel |
| Structure: |
Deep Hole Drilling |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Layout: |
Portable |
| Hole Diameter: |
6-114mm |
Product Description

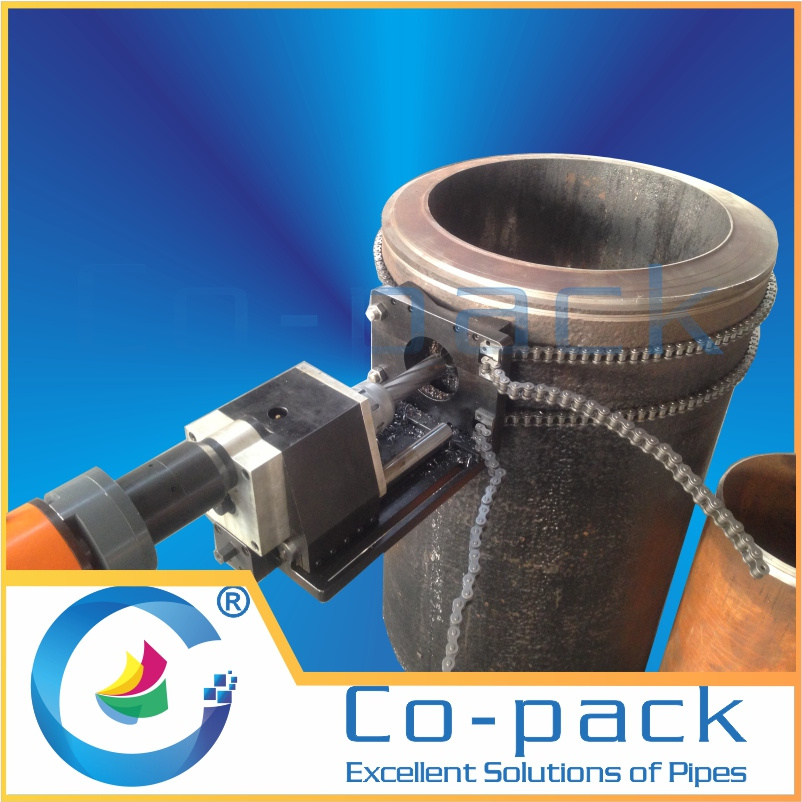

Portable Pipe Drilling Machine

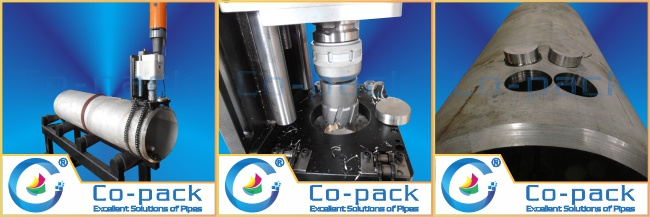

The machine used for drilling hole on the steel pipe, maximum diameter available up to 114mm, drive by high-power carbon brush motor (can use pneumatic motor for preventing explosion in case of dangerous workplace), reduce speed by gear reducer, strong spring clip clamping tool, wolfram carbide hollow drilling bit drill hole and slither machine guide tool feeding. High hardness and large torque, it is good at stainless steel pipe and thick wall pipe drilling hole on site and maintenance of machinery industry. Widely used in petroleum and chemical industry, electric power construction, fire fighting pipeline etc.
Technical Parameters:
Single-phase electric motor, rated voltage 220V, power 2.5KW, frequency 50~60Hz
Optional drive by hydraulic motor or pneumatic motor
Standard Accessory:
Locking chain 1 pce
Feed wrench 1 pce
Working Capacity:Model
(Electric) | Model
(Pneumatic) | Clamping Capacity
(O.D. mm) | Drilling Thickness
(mm) | Drilling Diameter
(I.D. mm) | Net Weight
(kg) |
| ISM-170 | TSM-170 | Φ140-800 | 2-200 | Φ6-114 | 28 |
| ISM-170-I | TSM-170-I | Φ140-1600 | 2-200 | Φ6-114 | 34 |
| ISM-170-II | TSM-170-II | Φ140-2400 | 2-200 | Φ6-114 | 40 |
