Lightweight Powerful Chain Hydraulic Pipe Puncher
| Price: |
US $ 1750/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ISM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Power Type: |
Electric |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |
| Usage: |
Pipe & Pressure Vessel |
Product Description

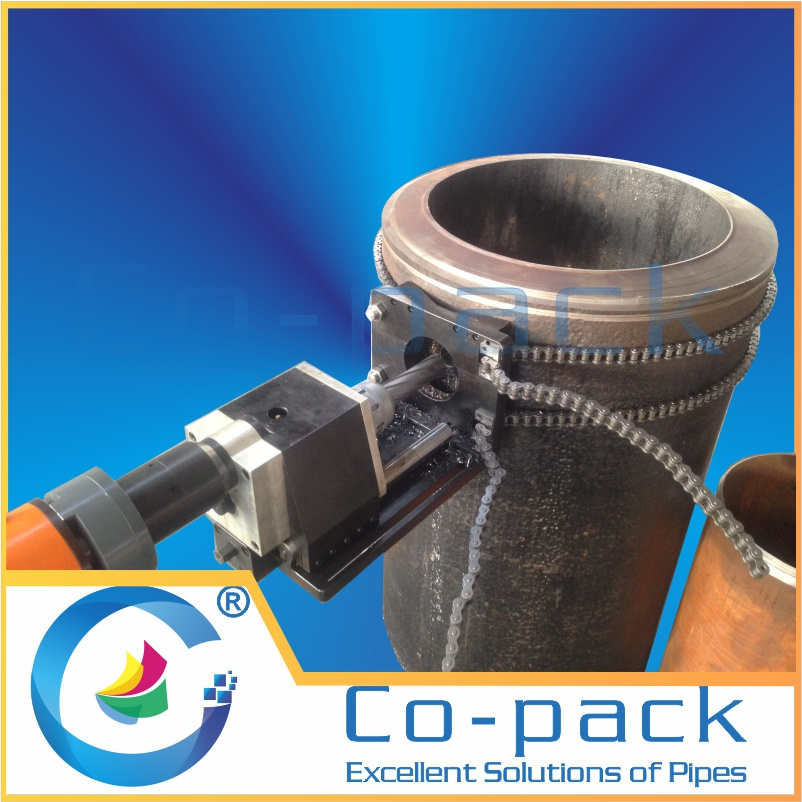

Portable Pipe Drilling Machine

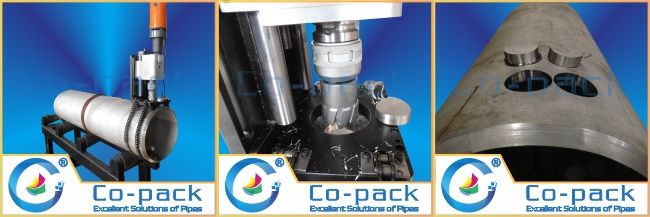

The machine used for drilling hole on the steel pipe, maximum diameter available up to 114mm, drive by high-power carbon brush motor (can use pneumatic motor for preventing explosion in case of dangerous workplace), reduce speed by gear reducer, strong spring clip clamping tool, wolfram carbide hollow drilling bit drill hole and slither machine guide tool feeding. High hardness and large torque, it is good at stainless steel pipe and thick wall pipe drilling hole on site and maintenance of machinery industry. Widely used in petroleum and chemical industry, electric power construction, fire fighting pipeline etc.
Technical Parameters:
Single-phase electric motor, rated voltage 220V, power 2.5KW, frequency 50~60Hz
Optional drive by hydraulic motor or pneumatic motor
Standard Accessory:
Locking chain 1 pce
Feed wrench 1 pce
Working Capacity:Model
(Electric) | Model
(Pneumatic) | Clamping Capacity
(O.D. mm) | Drilling Thickness
(mm) | Drilling Diameter
(I.D. mm) | Net Weight
(kg) |
| ISM-170 | TSM-170 | Φ140-800 | 2-200 | Φ6-114 | 28 |
| ISM-170-I | TSM-170-I | Φ140-1600 | 2-200 | Φ6-114 | 34 |
| ISM-170-II | TSM-170-II | Φ140-2400 | 2-200 | Φ6-114 | 40 |
Welcome to Wenzhou Co-Pack Co., Ltd., Excellent Solutions of Pipes / Plates / Flanges.
Co-Pack Machine is specialized in manufacturing Pipe Cutting and Beveling Machine, Pipe Beveling Machine, Flange Facing Machine and Plate Beveling Machine. The products used in the fields of petroleum, natural gas, power supply construction, nuclear power, boiler, pressure vessel, shipbuilding, project repairing etc, such as the Project of West Gas Transporting to East China.
We are a modern enterprise centralized in researching, manufacturing and marketing for cold cutting and beveling machines, and have been conferred China High & New Technology Enterprise. We are dedicated to become one of the best competitive beveling machine manufacturing base of the world, have imported the most advanced equipments and technology. Innovation sustained, have independent intellectual property rights, have total 36 patent. The company have passed ISO9001 Quality System Management, CE Certificate etc.
The factory locates in Wenzhou City, a seaside city of China, a national developing city with international airport. Our management eidos is presenting the best quality and services to our clients, getting reciprocity and mutual profit, and supplying you Excellent Solutions of Pipes / Plates / Flanges.
