| Prod Model: |
MDW-KT-105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Limestone Rope Saw |
| Model: |
Gdw-Kt-115 |
| Diameters: |
11.5mm |
| Coating: |
Spring and Rubber |
| Beads: |
Sintered |
| No. Of Beads: |
26/37 PCS |
| Length: |
50m/Roll |
| Weight: |
18.5/17kg |
| Applcation: |
Diamond Cable for Travertine Quarrying |
| Certification: |
SGS |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
| Saw Blade External Diameter: |
11.5mm |
Product Description
We, Keen Diamond Tool Co. Ltd specialize in manufacturing diamond wires and equipment for stone quarrying and processing for years, especially in the fields of diamond wires for sandstone quarrying, block trimming, profiling; Wire saws for quarrying and block trimming; DTH drill etc.
We monthly produce around 8000 meters diamond wires and 30 sets quarry wire saws at present, and 80% of our products are export to to USA, European, Brazil, South Africa and Middle East etc.
Crude rubber coating limestone rope saw with advantages of good flexibility, good protection for internal steel cable, Good safety and stability during cutting, which is the best choice for quarrying of hard materials like Granite, Sandstone, Basalt etc.

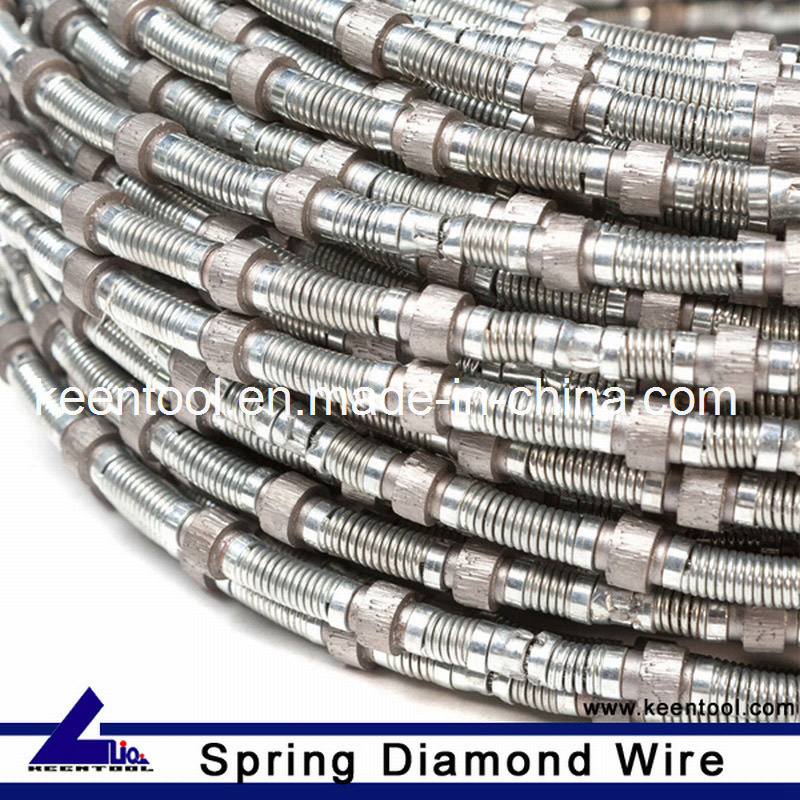

Spring limestone rope saw with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repairment, low cost, can be considered as the most simple and versatile of instruments for quarrying Marble, Limestone, Travertine etc.
Remarks:
1. Other specifications are available as per customer requirement.
2. Different types of wire beads special for different material are available.
|
Spring Diamond limestone rope saw for Quarry |
|
Specification of Beads(mm) |
Model |
Coating |
Beads No.
(Pcs/Meter) |
Hardness of Marble |
Cutting speed
(M2 /Hour) |
Cutting life
( M2/Meter) |
Φ11.0mm
Φ10.5mm |
MDW-KT-QS |
Spring |
26 |
SOFT |
16-25 |
55-75 |
|
MEDIUM |
12-16 |
45-65 |
|
HARD |
7-10 |
30-45 |
Φ11.0mm
Φ10.5mm |
MDW-KT-QR |
Rubber |
37 |
SOFT |
12-20 |
55-75 |
|
MEDIUM |
8-14 |
45-65 |
|
HARD |
5-8 |
30-45 |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
