| Prod Model: |
Ares0124 |
| Brand: |
Fct Brand |
| Pressure Range: |
2.5-8 Bar |
| Torque For Double: |
3-13300nm |
| Torgue For Single: |
5.7-4199nm |
| Material: |
Aluminum |
| Structure: |
Rotary Cylinder |
| Power: |
Pneumatic |
| Standard: |
Standard |
| Pressure Direction: |
Single-acting Cylinder |
Product Description
More Detail Description for pneumatic actuatorFeatures for pneumatic actuator- Rack & pinion design
- Compact and light weight
- ISO 5211 mounting pattern
- Adjustable stops for both open and closed positions
- Accessory mounting dimensions to NAMUR specifications
- Machined gear teeth provide longest life and smoother operation
- Single and double acting
- Safety contained springs prevent hazards of inadvertent ejection during maintenance
- Modular design utilizing same body and end caps for both double-acting and spring-return versions
- Corrosion resistant with hard anodized body, PTFE coated end caps, and stainless steel fasteners
Specifications for pneumatic actuator| Pressure Range: Max. Working pressure 10ba |
| DoublAir pressure: 2.5bar~8bar |
| Adjustment Range: 90° ± 5° |
| Ambient temperature: -20 ~ +90° C |
| Type: Double acting, Single acting (spring return) |
| Optional accessories: Solenoid valve, limite switch, electric position, air regulator |
| Lubrication: All the moving parts are coated with lubricants, extending their service life |
| Life Time: One million time |

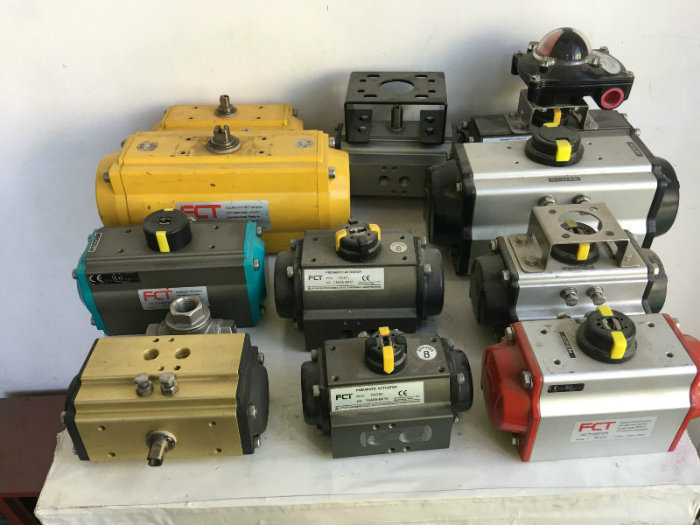

More Pictures for pneumatic actuator
Sample Room
Our Company Advantages 1. Over 12 years production experiences
2. Advanced equipment and professional technology
3.This is our FCT brand and made in China factory
4.High quality and cheap price
Welcome to contact with us anytime!Shanghai H&R Automate Control Equipment Co,.Ltd
Web: http://www.ARES-TECH.CO.UKAdd:Oasis Middlering Business Central 1628-1-1006,JinshaJiang Rd,Pu Tuo,Shanghai
Direct: 86-021-66080339 | Mobile:+86 13816047683 | Fax: 86-021-66080339
Shanghai H&R Automate Control Equipment Co., Ltd. is a professional sales of imported valves and related products of high-tech companies, is South Korea's S&S VALVE Chinese office, S&S products are mainly used in nuclear power and liquefied natural gas industry, as a professional valve manufacturer LNG Asia, has grown into the China LNG valve industry leader.
At the same time, our company also sells Korean PROSAVE vacuum valve and breathing valve, South Korea NSV general purpose valve, Japan MOTOYAM control valve and other products.
In addition, our company's valve accessories team is mainly responsible for FCT, HKC, FLOWSEVER and other international well-known brands of electrical and pneumatic actuators, valves, return devices and other accessories sales.
My company as general agent of the brand or agents, to support the strong business strength, professional technology, the whole product tracking and maintenance, can get your approval and support, and look forward to your cooperation success.
