Product Description
Linear drive nut
Our linear drive nuts are non-positive drives which convert the rotation of a plain round shaft into a traversing movement.
This effect is achieved by using rolling rings that are mounted on roller bearings and have a specially shaped running surface. These rings are pressed against the shaft so that they roll on the surface of the shaft at a specific angle.
Characterstics:Backlash-free,low noise emission,high efficiency due to rolling on the shaft,travel and guide units,can be freely moved on the shaft by using a release lever,compact design,installation does not require much space,overload protection by slipping, side thrust can be multiplied by coupling several linear drive nuts,different pitch settings available,pitch can be set for either direction on the shaft,good sealing properties against dust, dirt, humidity, etcIndustrial Area:
Automotion, Automobile, Automatic doors, CNC lathes, Combustion engine, Food Machinery, Machine tools ect.
Detailed Spec. as below :
:

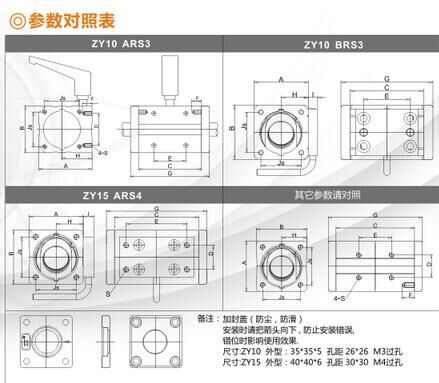

| Shaft diameter(MM h6 | Model | Main sizes | S |
Weight(G) | Max. thrust (FN) | Max. pitch |
| H | A | B | C | D | E | F | G | I | JS |
| Ø10 | ZY10 ARS3 | 21.5 | 40 | 35 | 47.1 | 24 | 24 | 8 | 57 | / | 26*M3 | M4 | 0.4 | 60 | 4.5 |
| Ø10 | ZY10 BRS3 | 17.5 | 35 | 35 | 47.1 | / | 30 | 8 | 57 | 6 | 26*M3 | M5 | 0.4 | 100 | 4.5 |
| Ø10 | ZY10 CRS3 | 17.5 | 35 | 35 | 47.1 | 18 | 30 | 8 | 57 | / | 26*M3 | M4 | 0.3 | 100 | 4.5 |
| Ø10 | ZY10 DRS4 | 17.5 | 35 | 35 | 55 | 18 | 30 | 8 | 65 | / | 26*M3 | M4 | 0.4 | 200 | 4.5 |
| Ø15 | ZY15 ARS4 | 19.3 | 40 | 48 | 62 | 18 | 45 | 8 | 74 | 8 | 30*M4 | M4 | 0.7 | 280 | 7.5 |
| Ø15 | ZY15 BRS4 | 19.3 | 40 | 40 | 62 | 18 | 26 | 8 | 74 | / | 30*M4 | M4 | 0.5 | 280 | 7.5 |
| Ø20 | ZY20 RS4 | 25.2 | 52 | 52 | 83 | 30 | 40 | 8 | / | / | 40*M5 | M5 | 1.1 | 420 | 10 |
| Ø25 | ZY25 RS4 | 29.5 | 60 | 60 | 85 | 30 | 40 | 9 | / | / | 45*M5 | M5 | 1.4 | 600 | 12.5 |
| Ø35 | ZY35 RS4 | 40 | 80 | 80 | 105 | 40 | 50 | 121 | / | / | 60*M6 | M6 | 3.1 | 900 | 17.5 |

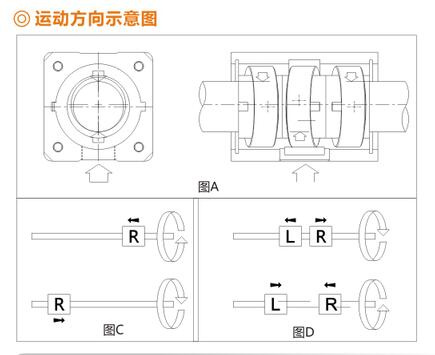

it`s direction of motion as picture shown:

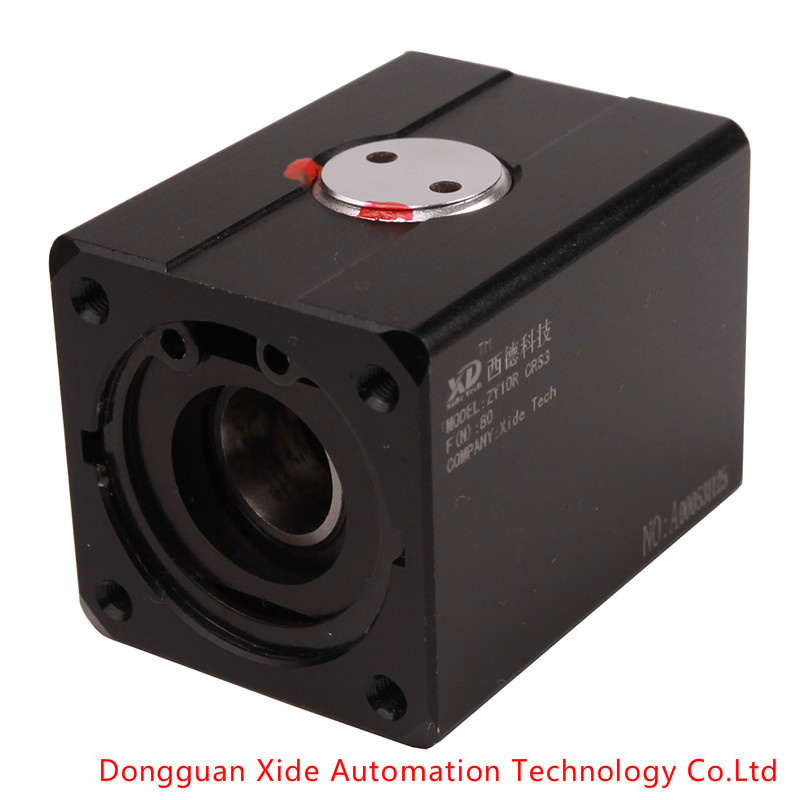

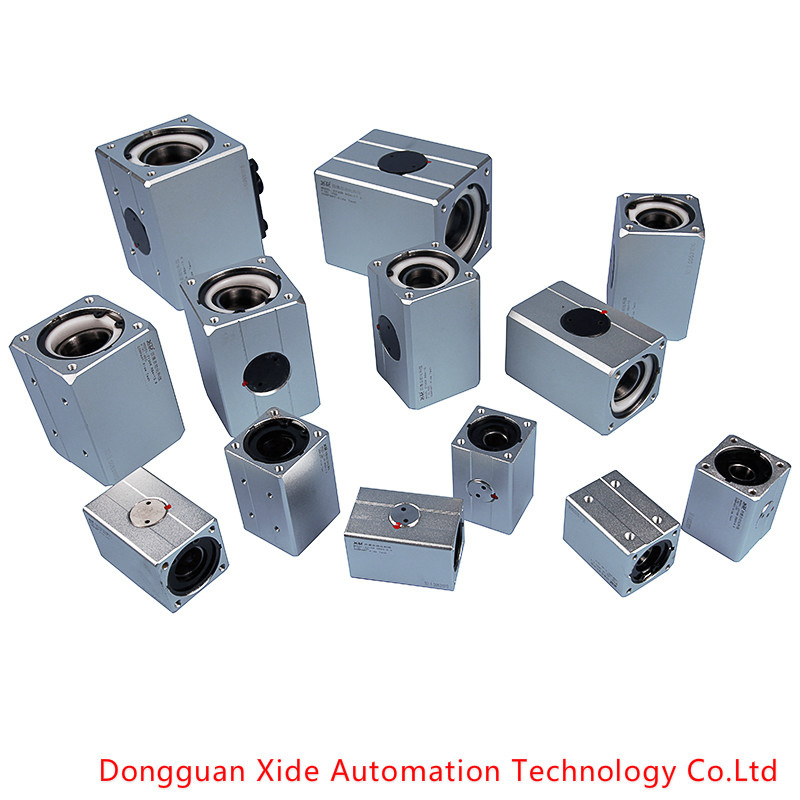

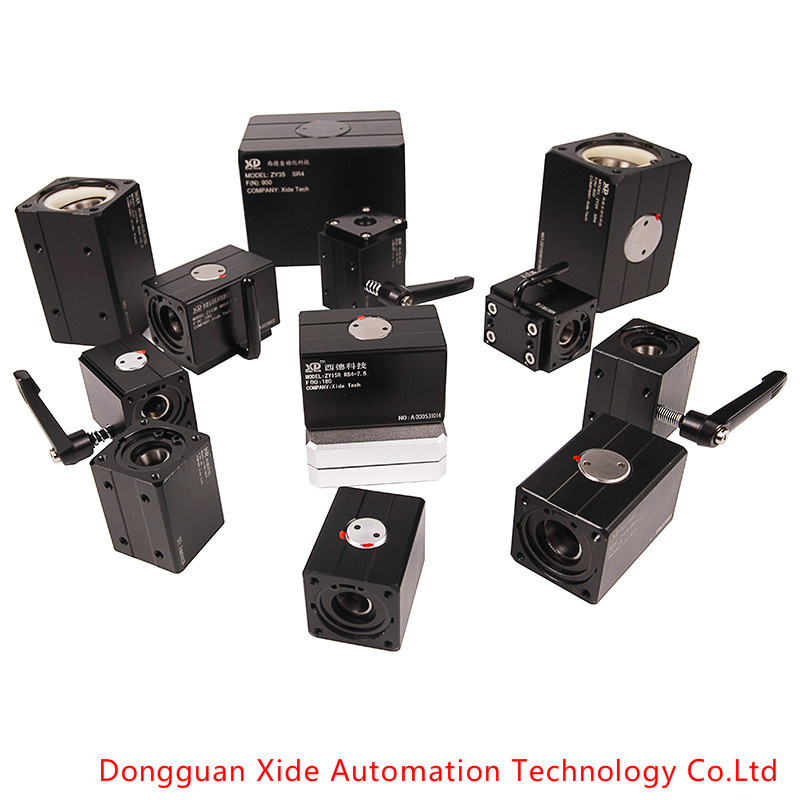

Samples Pics:
