| Prod Model: |
DIN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technical Spec.: |
Tolerance:CT8 Roughness:Ra12.5~6.3 Mass:up to 80kg |
| Material: |
Carbon Steel |
| Surface Preparation: |
Sand Blast |
| Molding Technics: |
Waterglass |
| Casting Method: |
Lost Wax |
Product Description

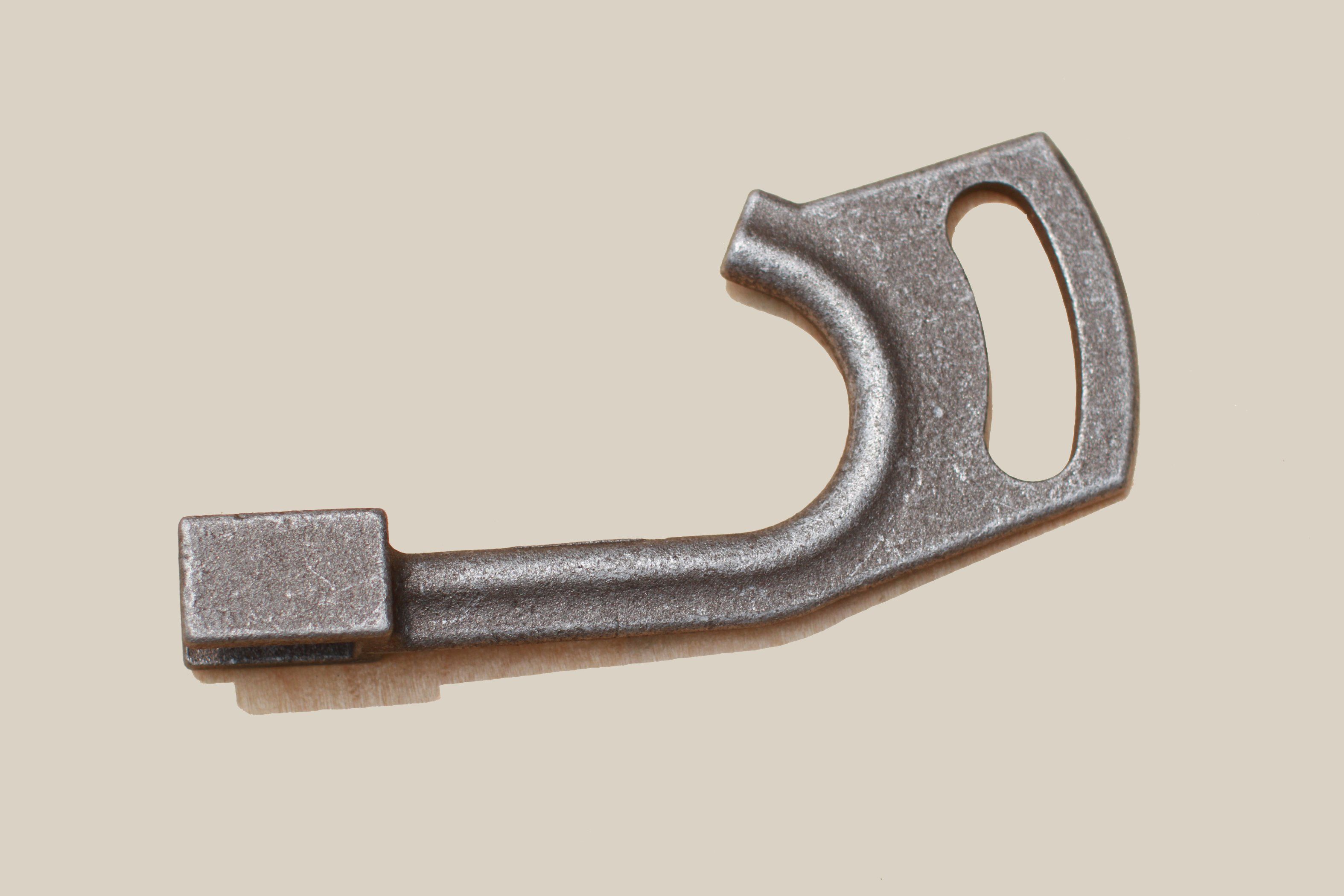

1. Name: Link Rod Steel Casting for Agricultural Machinery Parts
2. Production method: the Link Rod is casted by precision casting of waterglass method, then machine by CNC.
3. Machining equipment: CNC Machine, vertical centers, miling machine, lathe machine.
4. DNT equipment: X-ray detector, UT, MT
5. Professional precision casting foundry, 10 years experience and expertise. Most products are exported to Europe and North American markets. Main material is carbon steel, low alloy steel and stainless steel. Heat treatment, machining and finishing are available.
6. Trademark: QCB
7. Model: Purchaser's Part Number
8. Standard: ISO9001
9. Productivity: 10000 MT/year
10. Origin: Made In China
11. Packing: Eurpean standard pallet size
12. Transportation: By Air/Sea
| CHEMICAL ANALYSIS % | | |
| | |
| | C | Si | Mn | | | | | | | | |
| | |
| Min | | | | | | | | | | | |
| Max | 0.3 | 0.80 | 0.90 | | | | | | | | |
| Actual | 0.27 | 0.63 | 0.70 | | | | | | | | |
| | | | | | | | | | | | |
| MECHANICAL ANALYSIS |
|
| | Yield point | | | | Tensile Strength | | Elongation % | | Hardness(HB) | |
| N/mm2 | N/mm2 | | |
| | Requirements | ≥2 30 | ≥450 | ≥ 22 | / |
| Actual | 285 | 575 | 24.6 | / |
Specialist In Manufacturering Small, Medium And Large Series Steel & Stainless Steel Castings and forgings from less than 0.01kgs up to 1500kgs.
We have below production lines and equipments:
----Two half automatic lost wax casting line. Can cast small to big castings.
----One sand casting line. Can cast big castings such as 1.5MT per piece.
----One Forging line with 630MT, 1000MT pressure machine and self-
Contained complete hammers, machines, Heat Induction Furnace.
----Machining center, CNC machine, wire machine, Spark machine, 10sets
Of furnace for casting, 3 sets of furnace for heat treatment, 8 sets of shot
Blasted machine, etc.

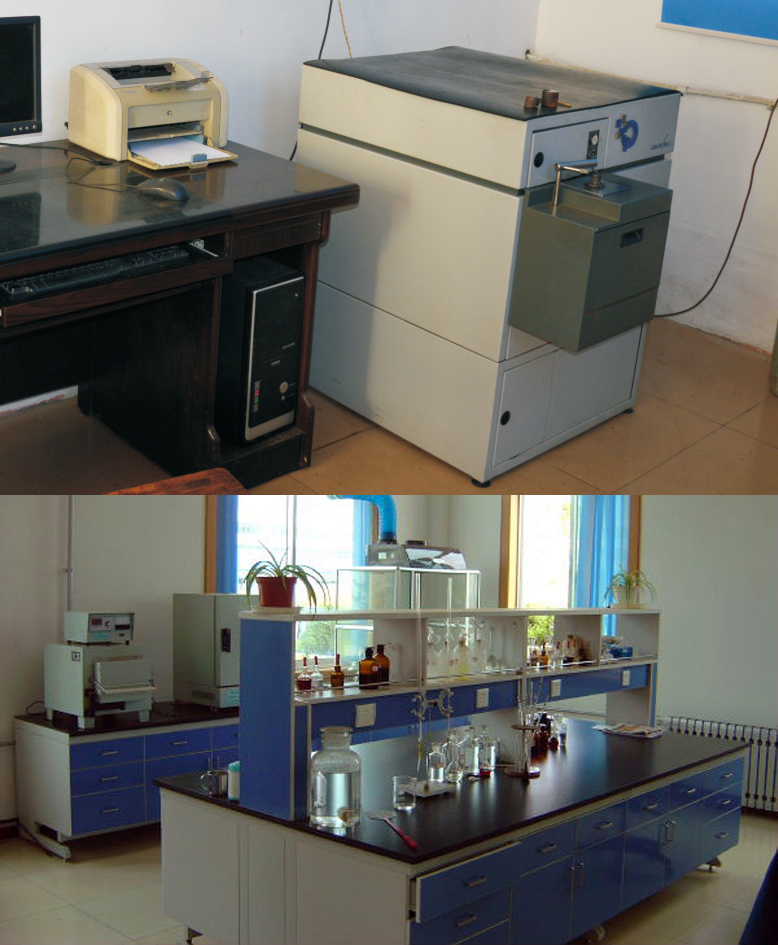

Quality Control:
----Imported from Germany Spectro for analysis testing and also Chemical
Lab for analysis testing specially to test "C",
Physics lab to test tensile strength, yield strength, elongation, etc.
Machine to test thickness, to test hardness, etc.
---Strictly Inspection procedure to guarantee the customers can get the
Steady quality products.
---More than 20 years of exporting experience to guarantee we can
Understand well what the customers required instead of "can be used is
The standard"
---Sufficient communication with customers to guarantee the customers can
Know well the progress of the orders enabling they can arrange their own
Production or sales as per the actual information. In case of any delay
Or any flaw will inform customer in advance then to follow as per
Customer's requirement.
Surface treatment:
---We have supplied customers the products with different surface
Treatment such as Galv. KTL, Chrome plated, Nickel plated,
Carbonization, Blacken surface, Painting, Mirror polishing, Satin polishing,
Electrolyze polishing, Vibration Grinding, etc.
---*******Anti rust more than 4 weeks under the Salt Spray Testing. In case
Of high requirement of galvanize(Zinc plated), we can offer the good
Galvanize (Zinc plated)which can anti rust under the testing of Salt Spray
More than 4 weeks.
Packing:
---All our packing are by PLY wooden cases which are no need to be
Fumigated. The packing to European market generally will be made by
The Standard European pallets, every pallet will be about 1MT. The
Packing to American market will be made also similar dimension with
European pallet and will supply customers 10+2 informations in time. All
The packings to Australian market will also pack the similar dimension and
Will send the packing certificate and Free Trade Agreement Certificate of
Original.
Shipment:
---We can offer CIF, CFR, FOB delivery term and also can offer Door to Door
Delivery for the customer who have this requirement. We have well
Cooperated forwarder who can change packing into unit packing in
Destination.
Accredited to ISO 9001: 2008, all our products are strictly manufactured in accordance with our customers' designs or samples, and are carefully inspected and well packed by our experienced employees before shipping. Our products are now used on many brand-name equipment and machinery around the world
