Ll Series Metal Lengthened Rigid Couplings Encoder Coupling
Price: |
US $ 5-30/Piece |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
LL |
Weigth: |
12-14G |
Product Description
Use and characteristicsLengthened Rigid Couplings.
Can be used as the adapter sleeve when the shaft length is insufficient.
Divided into aluminum and stainless steel two materials.
There are two forms of pinching and semi-separation.
Standardization of products with different diameters at both ends.
Applications 1. Widely used in various mechanical and hydraulic fields 2. Small dimension, low weight, high transmitted torque 3. Elastomers made of polyurethane with shore hardness between 80-98 4. Compensating the axial relative drift, buffer and vibration reduction 5. Material: cast iron, steel and aluminum alloyDimensions
Model | D | L | d1 d2 Shaft Dia. | M | L1 | Tighten torque(N.m) |
LL-20 25/XX/XX | 20 | 25 | 3-10 | 2-m2.5*8 | | |
LL-20 30/XX/XX | 20 | 30 | 3-10 | 4-m2.5*8 | 9.5 | 0.8 |
LL-25 30/XX/XX | 25 | 30 | 3-12 | 2-m3*10 | | |
LL-25 40/XX/XX | 25 | 40 | 3-12 | 4-m3*10 | 12 | 1.2 |
LL-32 40/XX/XX | 32 | 40 | 6-16 | 4-m4*14 | 17.5 | 1.2 |
LL-40 55/XX/XX | 40 | 55 | 8-20 | 4-m4*16 | | |
Product features
Model | Rated torque(N.m) | Max torque(N.m) | Max Speed(rpm) | Inertia moment(kg.m²) | Weight(g) |
LL-20 25/XX/XX | 0.5 | 1 | 7000 | 8.6*10-7 | 12 |
LL-20 30/XX/XX | 0.3 | 0.6 | 6000 | 7.0*10-7 | 15 |
LL-25 30/XX/XX | 1 | 2 | 6000 | 2.7*10-6 | 23 |
LL-25 40/XX/XX | 0.8 | 1.6 | 5000 | 1.0*10-6 | 33 |
LL-32 40/XX/XX | 2 | 4 | 5000 | 7.1*10-6 | 70 |
LL-40 55/XX/XX | 4 | 8 | 3500 | 1.5*10-5 | 14 |

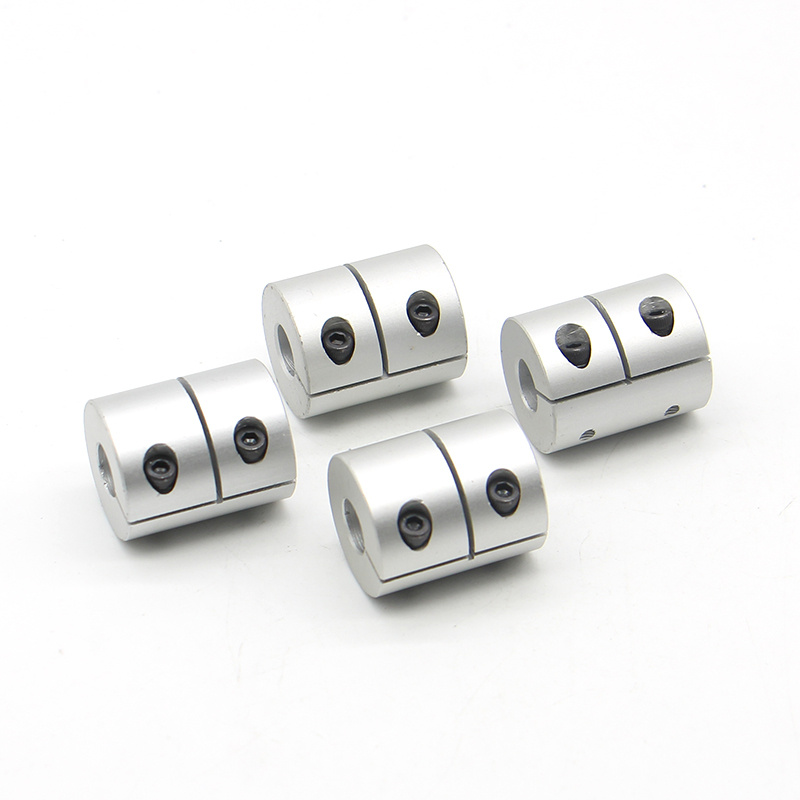

Detail Photo

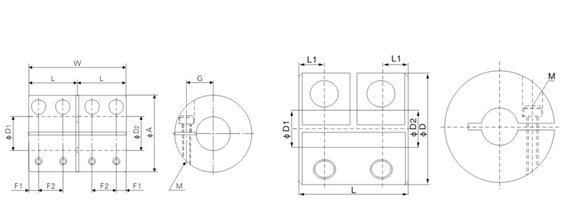

Drawing
