Long Life Precision Spherical Roller Bearings for Construction Machinery
| Price: |
US $ 160-300/Set |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
24140 |
| Feature: |
Self-Aligning Robust Simplify The Application |
| Precision Rating: |
P0 P6 P5 P4 P2 |
| Capacity: |
High Load Carrying Capacity |
| Applications: |
Machinery, Auto Parts |
| Rollers: |
Super Finishing Rollers |
| Inner Rings: |
Cylindrical or Tapered Bores |
| Certificate: |
ISO9001-2008 |
| Internal Clearance: |
C3 C2 |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Double |
| Outer Dimension: |
Extra Large (',440mm) |
| Material: |
Bearing Steel |
| Separated: |
Unseparated |
Product Description

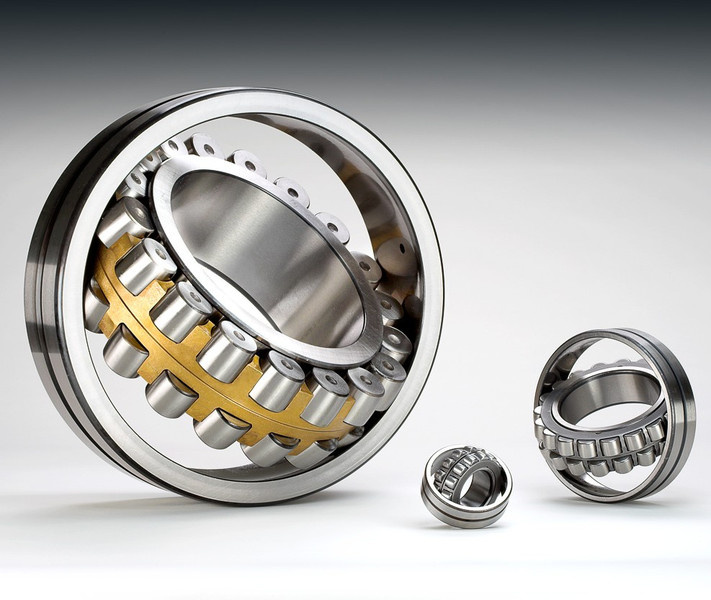

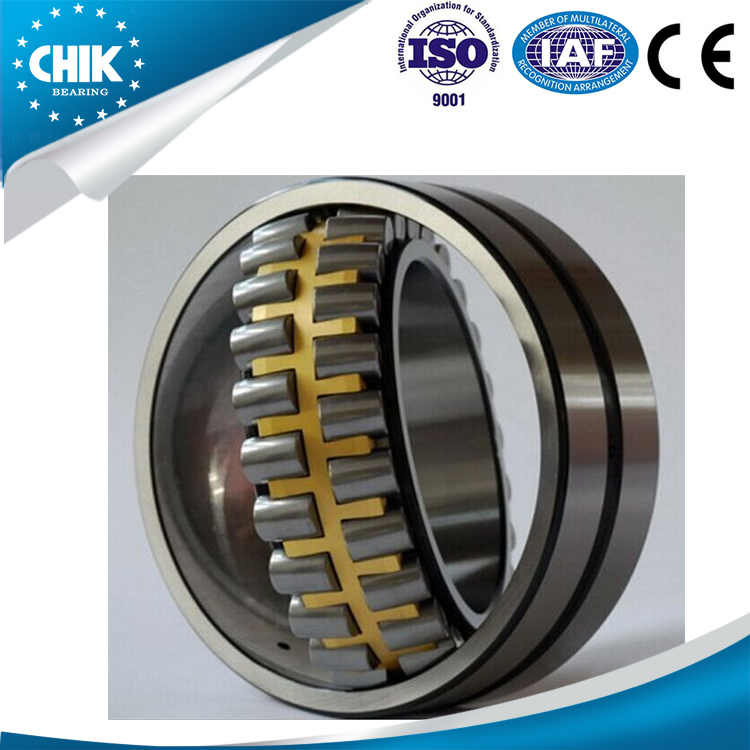

Spherical roller bearings are non-separable double-row radial bearings, with barrel shaped rollers.
Excellent alignment compensation
Suitable for large radial loads Low to medium speed ratings
Standards: DIN 616, DIN 635 (Part 2)
Series: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100
| Brand | CHIK SKF KOYO NTN TIMKEN brands |
| Name | bearing(spherical roller bearing) |
| Model number: | 24140 CA CC W33 C3 ES |
| Dimensions: | 200x340x140mm |
| Weight: | 50.5kg |
| Material | 100% Gcr15 Chrome steel/ bearing steel material |
| Certificate | ISO9001:2008 |
| Precision | P0, P6, P5, P4, P2,ABEC-1, ABEC-3, ABEC-5 |
| Cage/retainer | brass cage,brass retainer, steel retainer;CA alloy brass car-type cage,
Mb two-piece alloy brass car-type cage, CC two-piece steel cage. |
| Oil groove: | oil groove in the housing bore |
| ID Size: | 20mm-1500mm |
| Clearance | C0,C1,C2,C3,C4,C5 etc. |
| Seals Type | open |
| Features | high load carrying capacity;long barrel rollers;concave raceway,cylindrical or tapered bores.
groove and three lubrication holes in the outer ring for lubrication |
| Application | Widely used in:cnc router,machinery, cutting machine,milling machine
woodworking tool, engraving machine , cnc cutting machine
Papermaking machinery, slow, device, railway vehicle axle, rolling mill gear box, rolling mill roller bearing, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial deceleration machines. |
| Delivery Time | 2-5 days for samples;10-30 days fro batch orders |
| Package | card board package, pallet, wooden case or according to the requirement of the customers |
| Price | FOB,CIF |

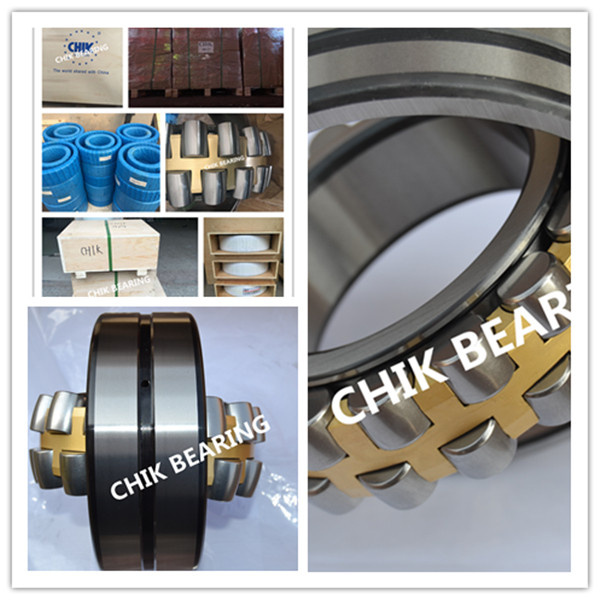

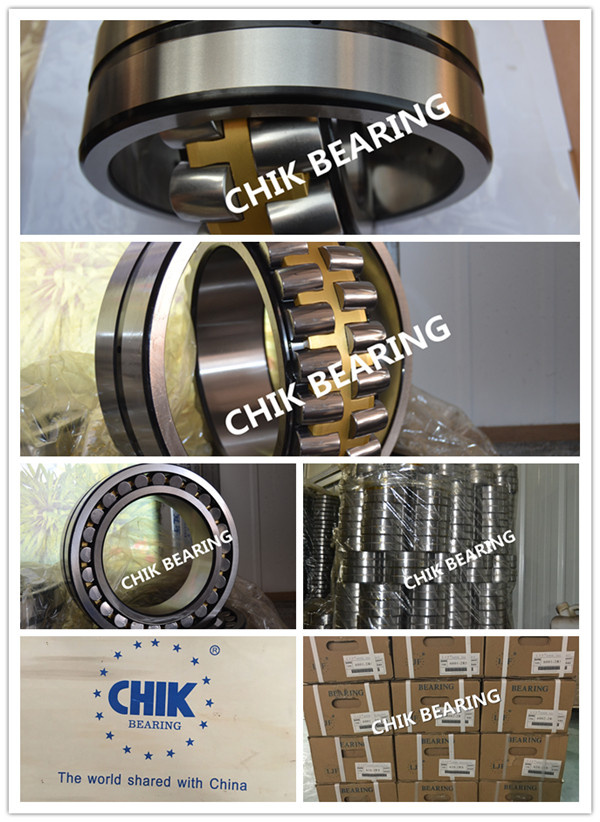

Product Show
FAQ
1.How many is the MOQ of your company?
Our company MOQ is 1pcs.
2.Could you accept OEM and customize?
YES, OEM is accepted and we can customize for you according to sample or drawing.
3.How about the corner?
In stocks,some are white ,and some are black.
But we can process the white corner to black,also black to white.
4.Do you have stocks?
YES, we have most of the bearings showing on alibaba in stock,especialy big bearings.
5.Do you have only big bearings?
We have big,medium and small bearings in stock.But large bearing is the advantage
of our products compared with other companies.
We Are More Professional In Roller Bearings!
Contact us:
Contact person: Ms. Cindy Wang
Mob:+86 15806683165
Chik bearings established in 2001, produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
To stay in front and making progress, we continually keep expanding our manufacturing capabilities in more cities where are more traffic-developed and Resources-adequate in Liaocheng, Ningbo and Tianjin in China.

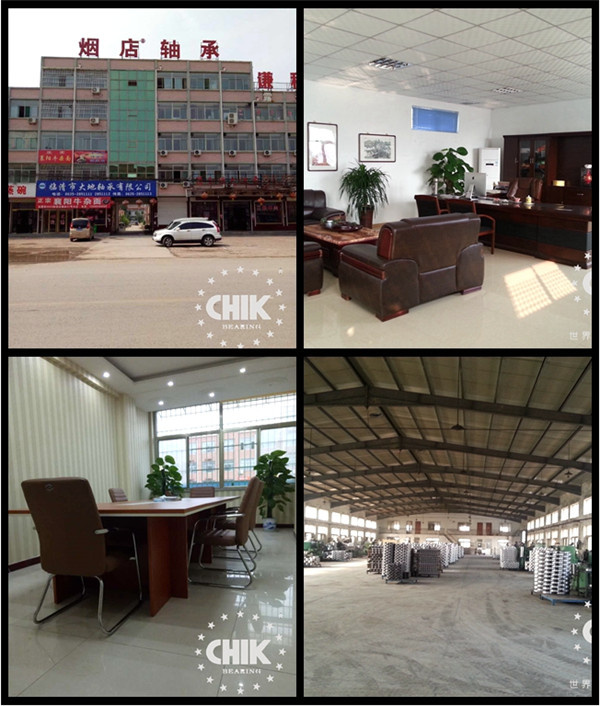

Our plant was equipped with fully modern enclosed dust-free workshop and warehouse, with improved detection technology. This enables us produce many high quality bearings and meet customers delivery time. All products could meet many advanced international standards with high quality steel and fully testing treatment.
Our main product:
Spherical roller bearings
Taper roller bearings
Cylindrical roller bearings
Angular contact ball bearings
Deep groove ball bearings
Thrust ball bearings
Thin section bearings
Self-aligning ball bearings
Needle roller bearings etc.
Sincerely hope to establish business relationship with your esteemed company in the near future.
Any inquiry or order placement, please feel free to contact us.
