| Price: | Negotiable/Square Meter |
|---|---|
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | p10 led display full color |
|---|---|
| Item: | 1r1g1b |
| Brightness: | 6000-6500CD/M² |
| Driving IC: | Mbi5124GF/Inc2038/Dp5020 Ect |
| LED Lamp: | DIP Oval346, 1r1g1b |
| Weight: | 0.45kg/PC |
| Max Power Consumption: | 800W/M² |
| Warranty Time: | 2years |
| Delivery Time: | 7-15days Depend on The Quantity |
| LED Writing Board Certificates: | Ce& RoHS |
| Type: | Long Lifespan Outdoor P10 SMD3535 LED Display Full |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Pitch: | 10mm |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Pixel Density: | 10000 dot / m² |
| Scanning Mode: | 1/4 Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | RoHS |
| Average Power Consumption: | 400W/M² |
1) High Reliability, Long Durability
2)Excellent Quality,Pass ISO9001:2000
3)Low Power Comsuption, Energy Saving
4)High Brightness,Long Lifespam
5) Timely Delivery, Easy and fast installation
long lifespan outdoor p10 SMD3535 led display full color
p10 led display full color parameter:
outdoor p10 smd3535 led display full color | ||
Pixel Information | Pixel Pitch | 10mm |
Pixel Density | 10000 Pixels/m² | |
Pixel Configuration | 1R1G1B | |
LEDs Brand | Red: Silan/Epistar / Cree | |
Green: Silan/Epistar / Cree | ||
Blue: Silan/Epistar / Cree | ||
LEDs Wavelength | Red: 615 nm - 625 nm | |
Green: 520 nm - 535 nm | ||
Blue: 465 nm - 475 nm | ||
LED Module | Module Size | 320 mm (Width) × 160 mm(Height) = 0.0512/m² |
Module Resolution | 32 pixels(Width) × 16 pixels(Height) = 512 pixels | |
LED Cabinet | Cabinet Size | 960 mm(Width) × 960mm(Height) = 0.92/m² |
Cabinet Resolution | 96 Pixels(Width) × 96 Pixels(Height) = 9216 Pixels | |
Total QYT Module Per Cabinet | 3 Modules(Width) × 6 Modules(Height) = 18 Module | |
Cabinet Weight | 50 kgs | |
Cabinet Material | Steel or aluminum | |
Power | Input Voltage | 100-240V AC, 50/60Hz |
Max Power Consumption | 800 Watt/ m² | |
Avg. Power Consumption | 400 Watt/ m² | |
Viewing | White Balance | X= 0.33 Y= 0.33 5600°K(Adjustable up to 9000°K) |
Brightness | 6000-6500cd/m² | |
Brightness Uniformity | Luminance Discrepancy < 5% | |
Colors | 16777216 | |
Grey Scale(Level) | 4096 | |
Slot Between Neighboring Modules | < 1 mm | |
Best Viewing Angle | Horizontal:120°/ Vertical:60° | |
Viewing Distance | 10 - 150 meters | |
Ambint Conditions | Temperature Range | Storage:-40 °c to +85°c.; Working:-20°c to +60°c |
Operating Humidity | 10%90%RH | |
Ingression Protection Grade | Front Side: IP65 (Resist spraying of water gun directly); | |
Back Side: IP54 (Resist Rain) | ||
Processing | Scanning Mode | 1/4 Scan |
Refresh Frequency | 180HZ-600HZ, Adjustable | |
Signal Input | DVI, Composite Video for Live Video | |
Supported Networking | Through LAN/WAN, RS 232/RS485 | |
Controller | Linsn, Xixun, DB-star, etc. | |
Other | Life Span | 50,000 - 100,000 Hours |
Software | Nova Star | |
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules

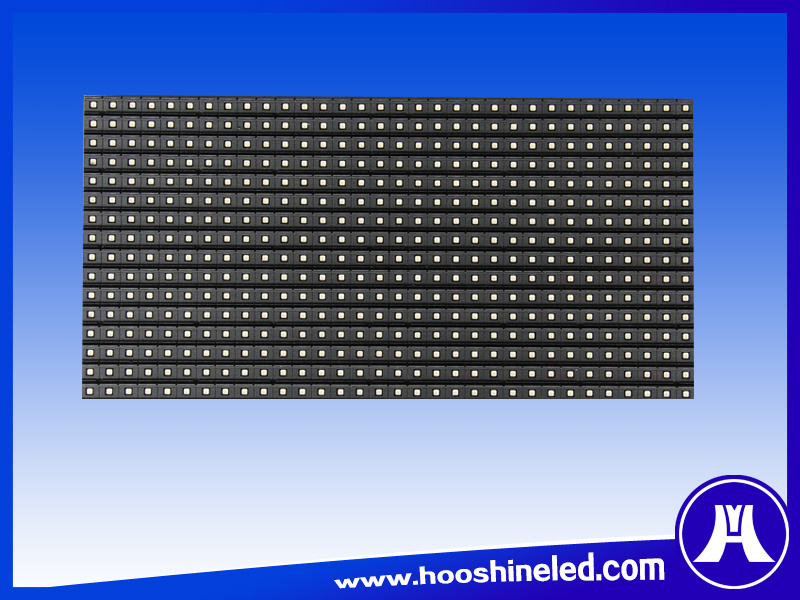

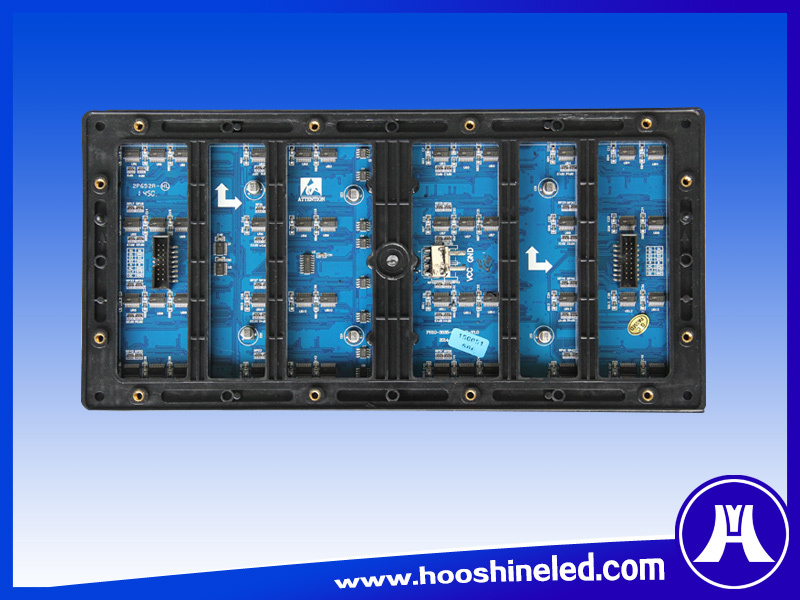

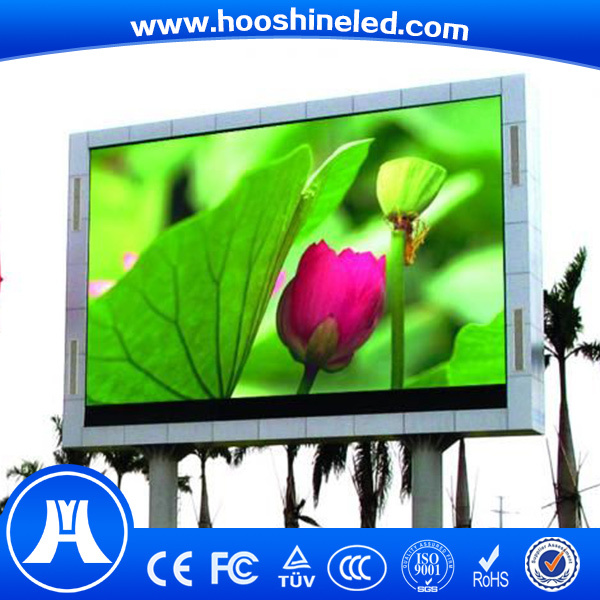

p10 led display full color image:
p10 led display full color packaging
Our Services
1.The price depends on the quantity.We can offer you the best competitive price with the same even better quality.
2.Good after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models
7.Your sales area, ideas of design and all your private information will be well protected
Company Information
We provide high quality outdoor p10 smd3535 led display full color with very competitive price. Our automatic production lines and effective management ensure the competitive price of our products, which is the great advantage we could share with our customers.
We look forward to a trial order. This would enable you to see the high quality of the product and give you the opportunity to test its superiority at the same time.

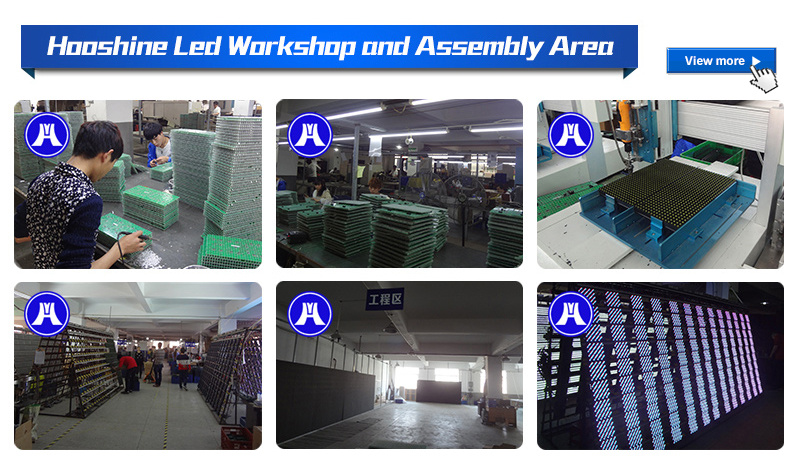

1.Factory Tour:
Q: Where is your nearest Sea Port?
A: Our nearest sea port is at Xiamen,Fujian Provice
Q: What's the brand of your diode chip?
A: Our led lamps are by Sanan,Silan,Epistar,Cree etc.
Q: What is the led chip packing?
A:Indoor:SMD 3528/2121/1010 Outdoor:546 oval lamp/346 oval lamp/
Q:How to protect power supply?
A:Electrical peaks can put more force on the electrical components which will decrease life time .It is wise to install a protection (voltage stabilizer) that can control the peaks.
