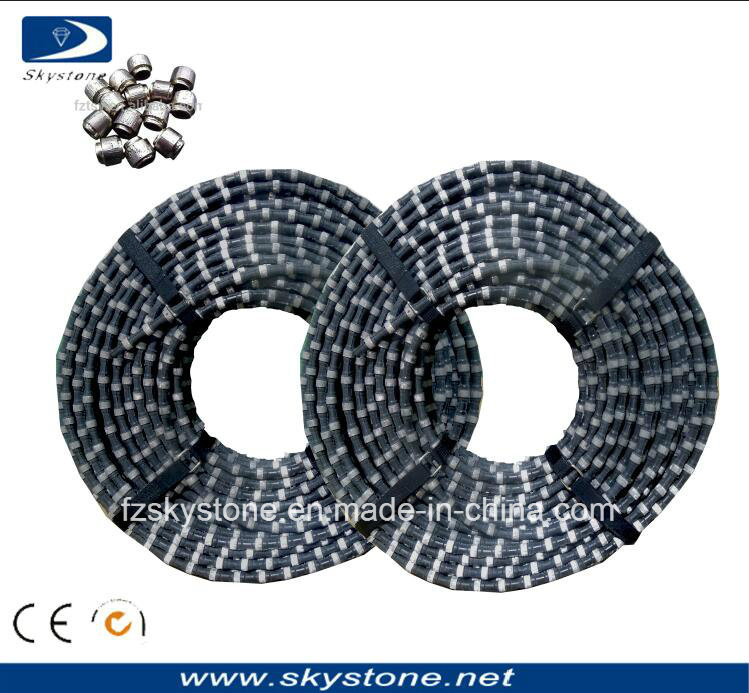

Long Lifetime Quarry Diamond Wire Tool for Granite, Marble

Long Lifetime Quarry Diamond Wire Tool for Granite, Marble
Price: Negotiable/Meter
Min Order: 30/Meter
Pay Type: L/C,T/T,D/P
Prod Model: GQR11.4
Certification: Ce/SGS/ISO9001
Material: Diamond and Other Metal Powder
Steel Cable: Imported From European
Beads/M: 40beads/M
Size Of Segment: Various as Customer Requirements
Fixing: Rubber and Steel
Colour: Black
Export Area/ Market: Global
Sawing Speed: 10-30m2/H
Life Time: 10-35m2/M

Product Description

Product Description

Company Instruction:

Skystone has been devoting to diamond tools industry since 1994,which has developed a professional diamond wire saw manufacturing factory ,a stone machine manufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product quality have been proven by our clients all over the world, which including Canada,USA,Brazil, Norway, Spain, South Africa, Iran,Turkey, Russia, Poland and other 30 countries.
Wires for Granite Quarry, the cables are in general fitted by injection of a vulcanised rubber, whereas cable used in granite and marble sawing works are more often injected with plastic. The ongoing research allows our products can satisfy all the customer need.

Notes:

1. We can provide different support designs and sizes beads according to the stone types.
2.We have independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.

Advantages of our vulcanised rubber wire:

1.Provide different support designs and sizes beads according to the stone types.
2.Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.
3.The rubber and cable sticking together tightly makes good bonding, and this can be more strikes during the work.
4.The vulcanised rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry.
5.Strong flexibility can reduce the cut-in-one-side problem, and protect cable well when it used for small curvature radius(beginning and end of quarry cuts).

Character&Advantage of SKYSTONE Diamond Wire

1. Long lifetime, No easy broken, Stable performance, High efficiency.
2. Provide different support designs and sizes beads according to the stone types.
3. Independently developed the special rubber and vulcanized technique to ensure that the diamond wires can work in all sorts of bad environment.

Product Details

The date of wires for granite quarrying description
Model
No.
Diameter
(mm)
Fixing TypeBeads/mHardness of stoneSawing Speed
(m2/h)
Lifetime
(m2/m)
Line speed
(m/s)
GQR11.411.4Rubber40Class1-2
Class 3-4
Class 4-5
20-30
15-25
10-15
25-35
15-25
10-15
28-33
28-33
28-30

Application
The diamond wire quarrying technique can highly improve the quarrying efficiency, reduce the waste of mining resource, and can exploit large dimension blocks. At the same time, it can be operated safely and it is good for environment friendly.



Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.

We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
