| Prod Model: |
CKD-CCLF-100 |
| Keyword: |
CNC Laser Cutting Machine |
| Product Name: |
Long Time Lifetime Laser Cutter |
Product Description

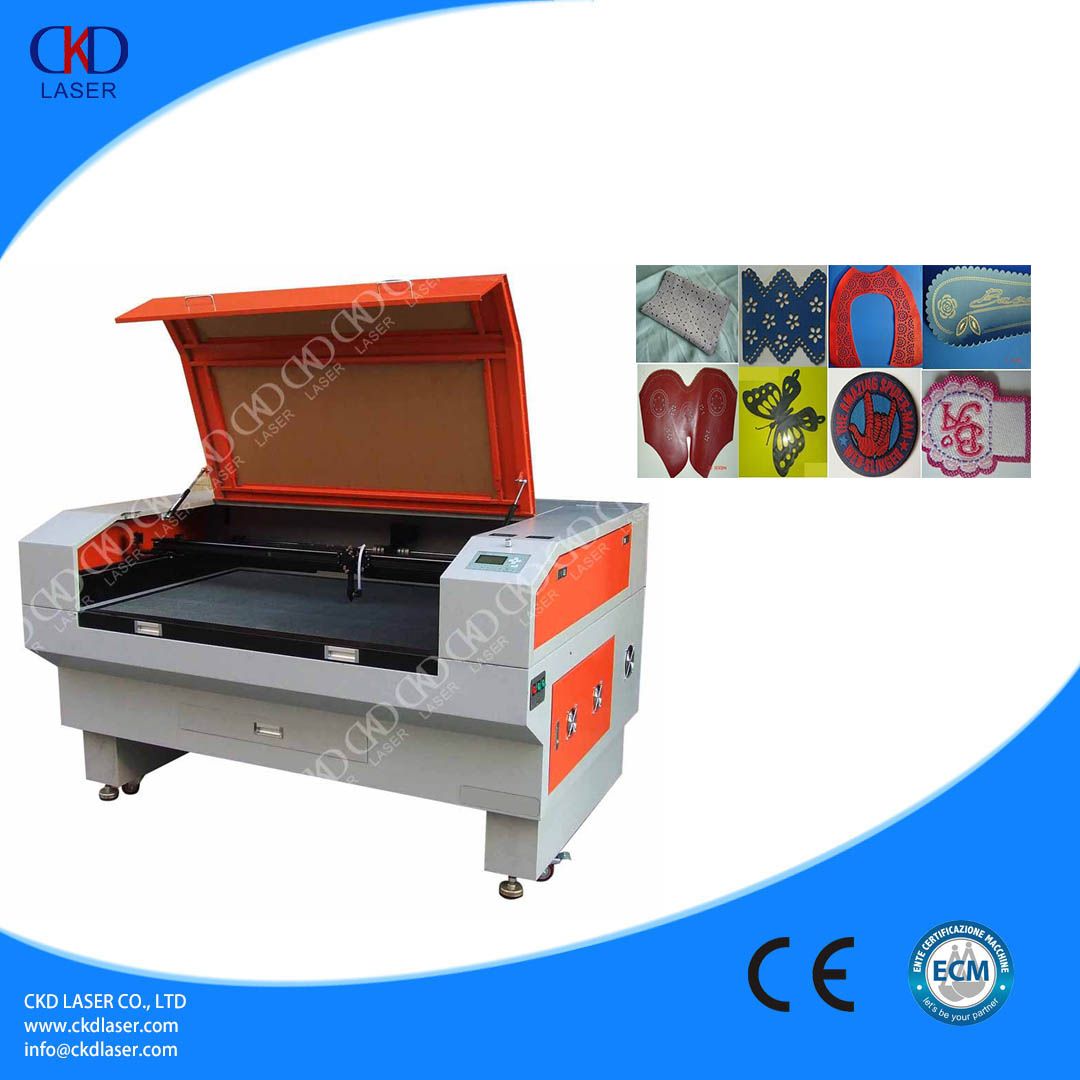

Long Time Lifetime Laser Cutter Textile Laser Machines
CKD-CCLF-100
Application
Suitable for cutting and engraving plastic, wood, glass, paper, leather, acrylic, horn, fabric fiber and composite material, etc. It could mark on stone, chinaware, two-color board, etc. Support bitmap marking, grade marking, vector cutting and laser drilling.
Advantages
1. Mini, high cutting speed, high precision.
2. Fly light path, lift worktable.
3. Red light preview.
4. Adopt imported high class motor, high accurate belt and belt wheel, imported slide-rail in order to guarantee high precision in high speed movement. Max. Cutting speed 500mm/s, Max. Marking speed 1500mm/s, repetitive positioning precision.
5. Consist of optical system, motor system, control system, fume exhaust system, blow-through fan system and focus positioning device. Optional accessory: beehive absorption table. Front door and back door could be open. Max. Cutting scope: 00mm X any length.
6. Support PLT, BMP, DXF, AI and JPG, etc. Can make different cutting and marking by setting separated parameters layers.
7. The standard USB connection can transmit materials at high speed.
8. have export license
9. HS code: 8456100090
10. Have CE Certificate
11. Interface USB
12. Drivers for windows 7
Configuration
| Parts Name | Description | Quantity |
| Software .and Control | Laser cutting system and control system | One |
| Guide Rail | High-speed adjustable guide rail | Three |
| Motor | Step motor imported from Japan | Two |
| Laser power supply | laser power supply | One |
| Belt | Belt imported from American | Three |
| Lens | Lens imported from American | Four |
| Cooling Box | Cooling box (5000 type) for laser cutter | One |
| Induced Draft Fan | Centrifugal induced draft fan | One |
| Air Pump | Hailea electromagnetic air compressor | One |
| Laser Tube | China laser tube | One |
| Work table | Knife | One |
| Chassis | Chassis Welding of cold rolled plate | One |
NOTE: Above parts free with the machine
Parameters
| Product model | CKD-CCLM-100 |
| Laser power | 100W |
| Cutting scope | 1300mm*900m |
| Max. Width of work piece | 1300mm |
| Max. Length of work piece | infinity |
| Figure format | AL,DST,PLT,BMP,DXF |
| Supporting software | CORELDRAW,PHOTOSHOP,AUTCAD/CAM |
| Cutting depth (acrylic) | 15mm (at the speed of 8mm/sec) |
| Linear speed | marking speed 50000mm/min |
| cutting speed 0-40000mm/min |
| Laser type | CO2 sealed of glass laser |
| Locating accuracy | ≤0.01mm |
| Cooling system | water cooling |
| Electric power | 220V/50Hz/10A |
| Packing Dimension (length X width X height) | 2270*1550*1300mm |
| Gross Weight | 400KG |
Samples

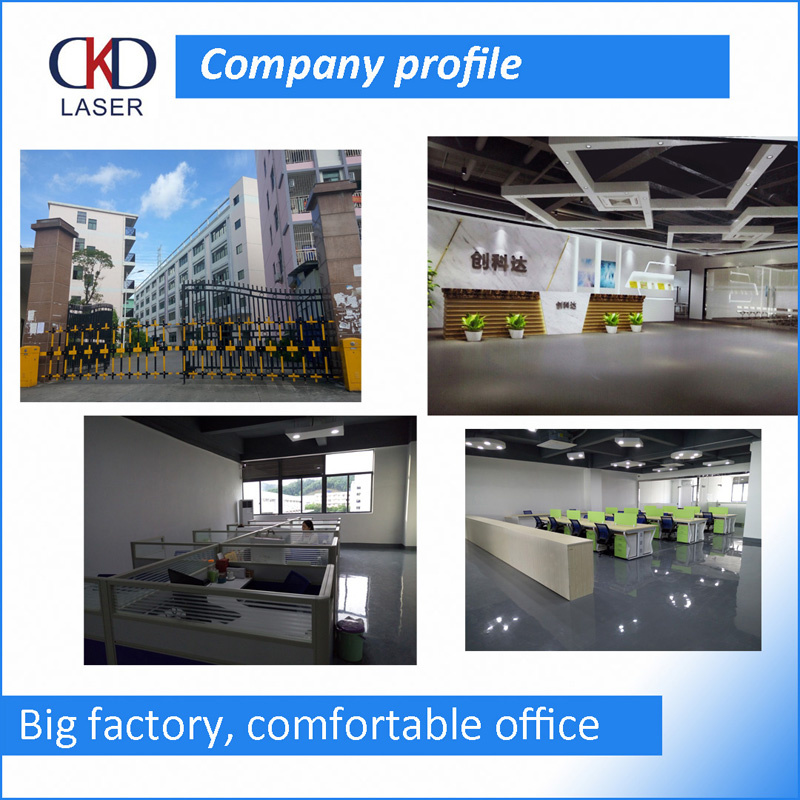

Company profile
We are a factory established in 2007, which specializes in the customized laser equipment for 9 years. We have a professional team and pursue high-tech, high quality, and high customer satisfaction products, to seek long-term cooperation and common development customers.
Our main customized products: Marking laser machine, including portable marking laser machine, table marking laser machine, rotary multi-station marking laser machine, sealing marking laser machine, UV marking laser machine, CO2 marking laser machine; welding laser machine; ITO laser machine; slicer laser machine; cutting laser machine and a lot of self-developed laser equipment devices.
Our laser equipment is widely used in industries of hardware tools, solar energy, auto accessories, electronics, electric appliance, medical, glasses, leather, optical accessories, advertising, commodity, communication, sheet metal industry, jewelry industry, kitchenware, jet coding and crafts gifts etc.
Company concept: All participants in and strive together to creative our future.
Company policy: Based on customers' satisfaction. Armed high quality by high-tech
Welcome new customers' attention and thank old customers' support! We will as always provide and feedback you the higher performance, cost-effective, better quality products and timely service.
Why choose us:
1.CKD LASER product is widely used in almost all the materials you can think of.

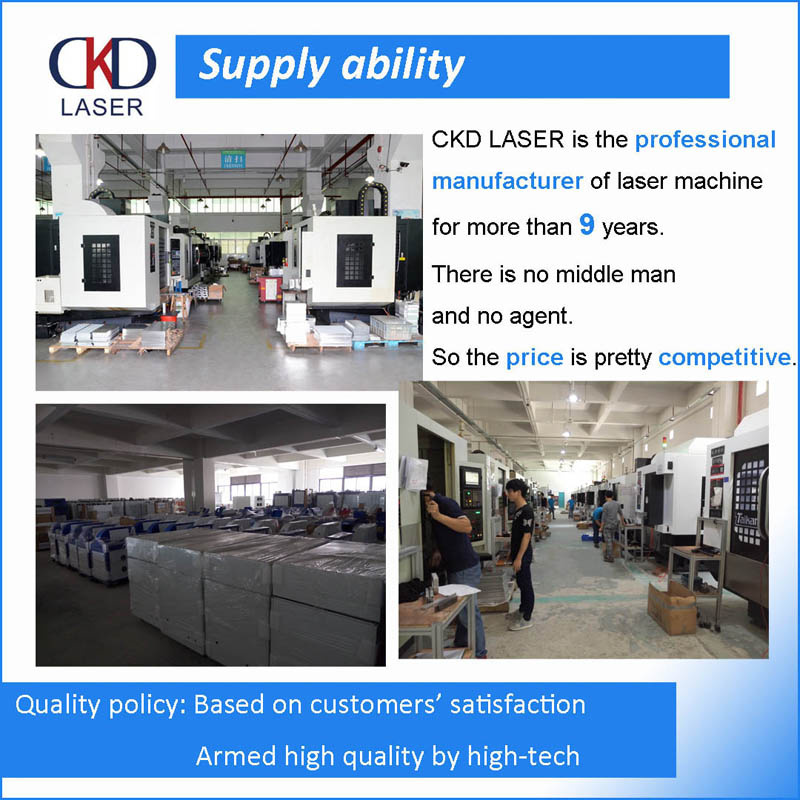

2.CKD LASER is the professional manufacturer of cnc laser machine for more than 9 years. There is no middle man and no agent, so the price is pretty competitive.
3. CKD LASER have a experienced and professional team for the technical support.
4. CKD LASER always stick to the principles: Customer first,Quality First, Service First!
5. CKD LASER company has international technical service office and provides 24 hours online services and technical supports for customers.
Exhibition show
FAQ:
Q: Are you a factory or a trade company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen, Guangdong province, China.
All our clients from home or abroad are warmly welcome to visit us!
Q: Do you have any certificates?
A: All series of machines have passed CE and ISO verification.
Q: What is the trade term?
A: FOB/CNF/CFR/CIF/EXW are favorable.
Q: What is the payment term?
A: 100% T/T in advance.
Q: How can I get the documents after shipment?
A: All original documents will be sent to the client by E-mail.
Q: Do you arrange shipment for the machines?
A: We will arrange shipment for transactions based on FOB/CIF terms.
For EXW price, shipment should be made by clients or their agents.
Q: Warranty?
A: Depend on the series of machine.
For other questions, we will reply you ASAP after receriving your consult!
