| Prod Model: |
14.3x14.3x2.0 |
| Grade: |
Yg6 Yg8 Yg6X K20 K30 Yg10X |
| Dimensions: |
All Sizes Available |
| Applications: |
Spiral/Helical Cutting Heads |
| Hardness: |
Hra91.5- 94.5 |
| Surface: |
Finished,Grounded,Polished |
| Usage: |
Wood Cutting |
| Status: |
Ready to Use |
| Item: |
Carbide Planer Knives |
| Type: |
Carbide Indexable Inserts |
| Product Name: |
Solid C3 ( Yg10X ) Carbide Indexable Insert Knives |
Product Description

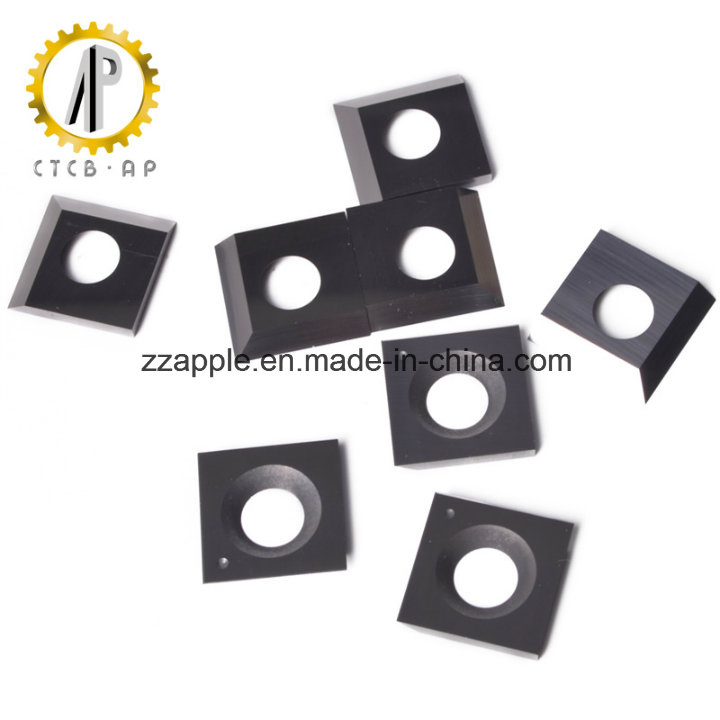

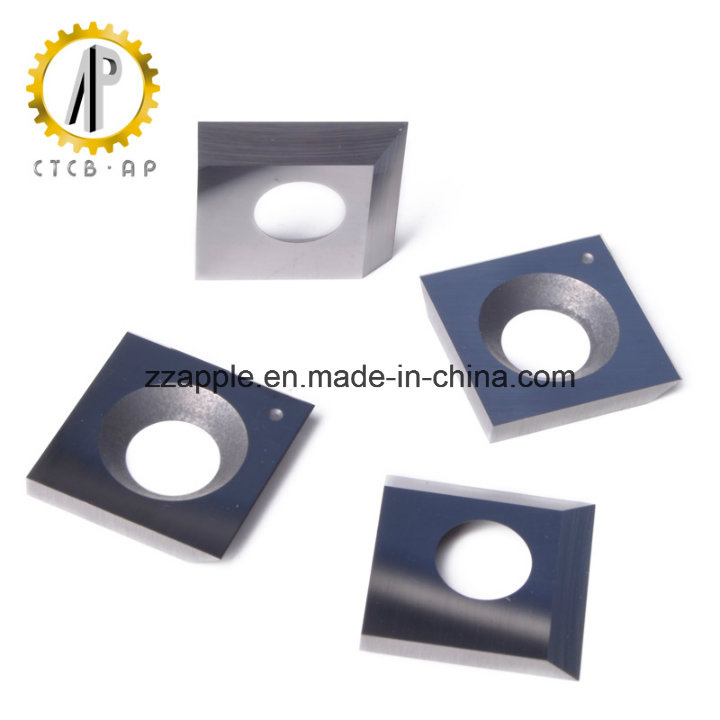

Long wearing solid C3 ( YG10X ) carbide indexable insert knives
Shape - Square
Length - 14.3 mm
Width - 14.3 mm
Thickness - 2.0 mm
Holes - 1
Bevel - 40 degree
Cutting Edges - 2
1.Suitable for wood cutting
2.Strong and sharp cutting edge,easy to replace your jointers and planers
3.Smooth planing, 2 or 4 usable sides, all are of the same sharpness
4.100% virgin tungsten carbide makes the longer life time
5.Large stock available
Application: Woodworking machinery parts(Carbide Planer knife) suitable for different cutting heads and spiral planning cutter, such as: groove cutter, multi-function cutter, planing cutter and spindle moulder and so on, for cutting, grooving and rebating with a long life time.
Advantages:
1. Corrosion resistance: protection against chemical influences
2. Oxidation resistance: protection against thermal influences
3. Abrasion resistance: protection against mechanical wear
Hot selling standard sizes:
| 30x12x1.5mm | 30x12x2.5mm |
| 40x12x1.5mm | 50x12x1.5mm |
| 60x12x1.5mm | 14x14x2.0mm |

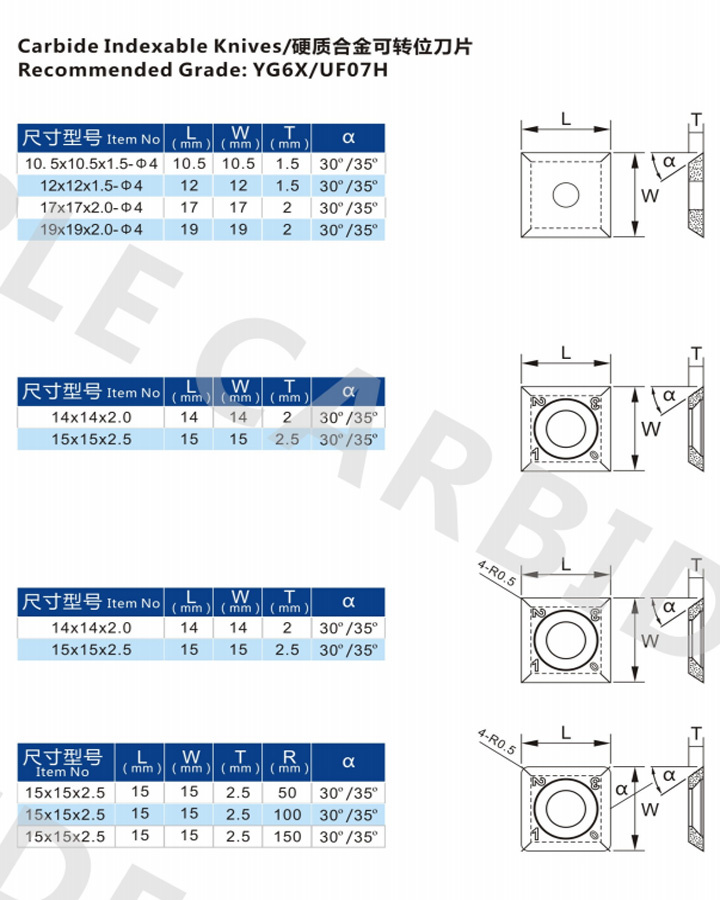

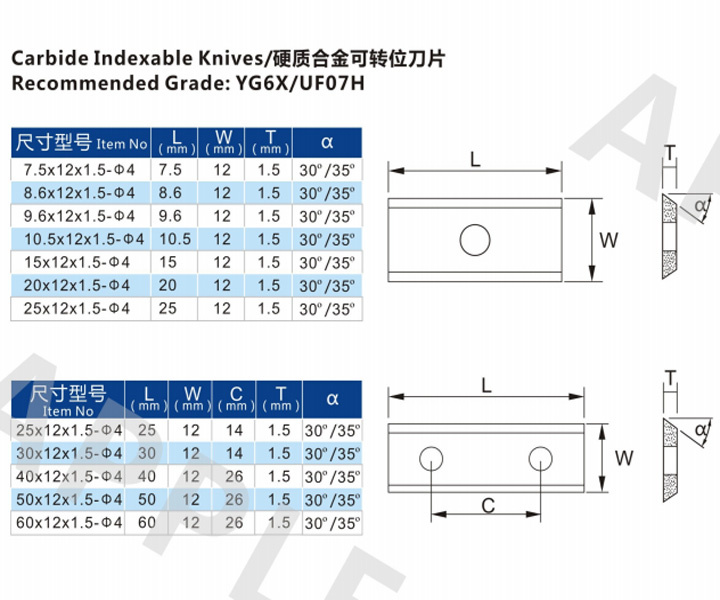

Model list:

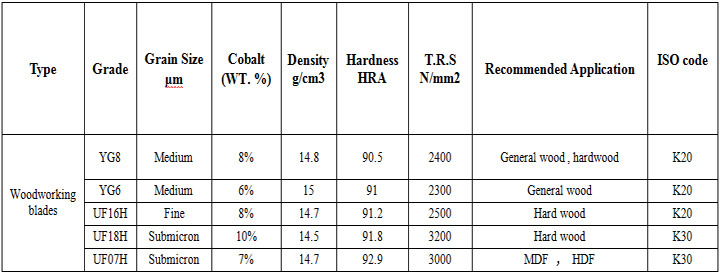

Grade list:
About us:
Zhuzhou Apple Carbide Tools: Tungsten carbide woodworking insert is one of our main products, we have been in this line for 15 years, we have professional engineers on woodworking. We have many sulutions on wood cutting and we know how to improving the life time of the carbide blades. If there is any question or inquiry please feel free to contact us. Thank you.
Any models you need please feel free to contact me at any time!
Linda
Tel: +86- 17716797283
Apple carbide is Located in Zhuzhou city, Hunan Province and specialized in the producing and marketing of cemented carbide products, With many years of experience in the production of tungsten carbide, ongoing research and development, as well as a professional production and quality control ensure that Apple Carbide competitively offers the best quality in short delivery time.
The products including: Carbide strips/bars ( STB blanks), rods ( blanks or polished, with one or two holes), all kinds of Turning inserts, milling inserts, end mills, carbide slitting saws, Carbide saw tips, wear parts, drawing dies etc, we also welcome customer's samples or drawing. The products are exported to many countries and have gained a high reputation among customers for its stable quality and competitive price.
Here, Briefly introduce some details of our products:
CNC Solid carbide End mills:
1. According to products with hardness of 10 to 65 HRC, we have carbide rods with different grades of high quality.
2. High-performance grinding machine and fully automatic production lead to more stable quality.
3. High-quality PVD coating which ensures the sharpness of the tool and also improves the good wear resistance and heat insulation of the end mills.
4. Fully automatic mass production reduces the production costs which makes our end mills with strong Competitiveness in price.
Carbide inserts:
1. High hardness (91.5~93HRA)
2. Good hot hardness (can reach 900~1000° C, keep 60HRC)
3. Excellent wear resistance
4. Higher cutting speed
5. Excellent production efficiency
6. Short production cycle.
Carbide strip:
The main composition of tungsten carbide strips is tungsten carbide powders and cobalt powders. With its wear resistant and corrosion resistant ability, tungsten carbide nowadays is widely used in many areas such as: Cutting tools, moulds, oil and automobile industry etc.
Tungsten carbide strip is used as the cutter for the TCT woodworking knives for cutting all kinds of original wood, hard wood, HDF, MDF, plywood, particle board, laminated board, composite material, grass, aluminum and metals. It can give much more excellent performance than HSS.
Carbide rod:
1. Application of Chinese Supplier Stock Price Tungsten Carbide Bar Blanks
Our carbide rods are used for cutting aluminum alloy, cast iron, stainless steel,
Refractory alloy steel, nickel-based alloy, titanium alloy and nonferrous materials,
For making drills, drills, end mills &reamers, mold punches, core pins&hole drilling tools
2. Various types of Chinese Supplier Stock Price Tungsten Carbide Bar Blanks
Solid rods
Single Central hole rods
Double parallel hole rods
Double helical 30-40hole rods
Chmafered rods
One side chamfered with weldon shank rods
Special customized rods
For further information, welcome to contact us, thanks!
