Longer Life and Faster Dust Removal Diamond Grinding Wheel
1.Specification
Shank Material
65Mn
Segement
7MM
Type
Turbo, Single row, double row
Technology
Cold pressed, hot pressed, laser welding, silver welding
Grit Size
30/40,40/50, 50/60, 60/80
Diamond Concentration
20% - 30%
HRB
85-105
Application
Diameter
Segment Height
Segment Thickness(mm)
Segment No.
Arbor (mm)
Single row
105mm(4")
5
7
8
M14,5/8"-11,22.23
115mm(4.5")
5
7
9
M14,5/8"-11,22.23
125mm(5")
5
7
10
M14,5/8"-11,22.23
150mm(6")
5
7
12
M14,5/8"-11,22.23
180mm(7")
5
7
14
M14,5/8"-11,22.23
Application
Diameter
Segment Height
Segment Thickness(mm)
Segment No.
Arbor (mm)

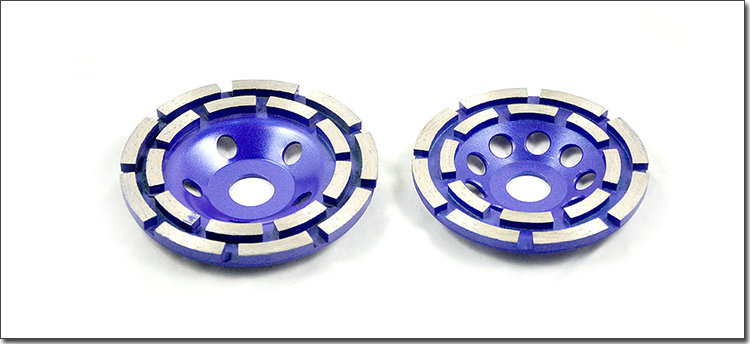

Double row
105mm(4")
5
7
16
M14,5/8"-11,22.23
115mm(4.5")
5
7
18
M14,5/8"-11,22.23
125mm(5")
5
7
20
M14,5/8"-11,22.23
150mm(6")
5
7
24
M14,5/8"-11,22.23
180mm(7")
5
7
28
M14,5/8"-11,22.23
Application
Diameter
Segment Height
Segment Width(mm)
Segment No.
Arbor (mm)

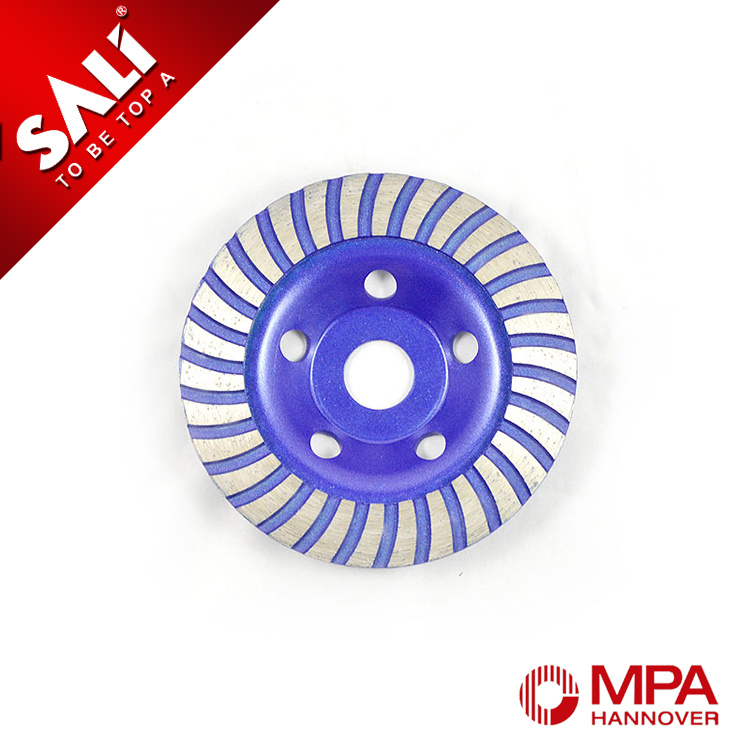

Turbo
105mm(4")
5
20
Turbo
M14,5/8"-11,22.23
125mm(5")
5
20
Turbo
M14,5/8"-11,22.23

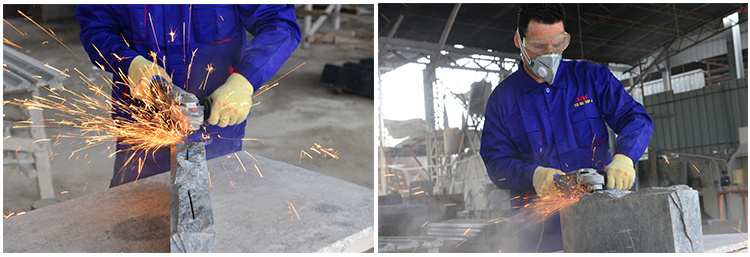

2.Pic 3.Application: Used for grinding marble, granite, stone, ceramic, concrete, asphalt, brick.
We, SALI is a professional manufacture which is located iin the hardware city Yongkang, Zhejiang, China. With sales department in Yiwu City which is the world famous city ofr its small comodity market. SALI Brand was introduced as a well-known trademark by Govenment in China.
SALI has a strong strength of resin boned cutting and grinding disc, while diamond saw blade, TCT blade, flap disc, wire cup brush, drill and gloves also available. The main products cutting disc and grinding wheel have got MPa and EN12413 approved. Our annual turnover is over 100million RMB. Products have been exported to Asia, MID-east, European and Latin America Africa, etc. We SALI constantly update the products performance to meet the markets and strive to be top A on stable quality and sincere service.
And Currently, we have sole agent in Sri Lanka, Ethiopia, Romania, Sudan, etc. Hope we have the great chance to support your business soon. Thank you.
Since we have established our own Brand SALI, a whole range products, includinig hand tools, all kind of abrasives tools will be encluded from time to time. And to promotion our brand all over the world, SALI will attending lots of exhibition to show our products, including Canton Fair (two times each year), Dubai hardware exhibition, Mexico hardware exhibition, Las Vegas Hardware exhibition, Indonesia Construction Exhibition, India Construction Exihibition, Shanghai Hardware Exhibition, etc.
Beside, SALI team spend time to visit our customers at Sri Lanka, Iran, Qatar, Ethiopia, Sudan, etc every year. Knowing their sales, helping advitising, and investigating market requirement.
To meet the increasing market demand, We have incresed our production plant up to 2500 square meters for cutting disc and grinding wheel, bring in over 40 molding machines (auto) to replace old one (semi-auto).
SALI is aiming to established a TOP A brand to the world, bringing safely, effiently to the end user.
