| Price: | US $ 1800-3100/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ZX7550 |
|---|---|
| Max. Drilling Dia: | 50mm |
| Max. Horizontal Milling Dia.: | 100mm |
| Max.Tapping Dia: | M16 |
| Max. Vertical Milling Dia: | 25mm |
| Distance.Spindle To Table Surface: | 90-490mm |
| Spindle Speeds Range: | 115-1750(V)60-1350(H) |
| Spindle Travel: | 120 |
| Table Size: | 800*240mm |
| Table Travel: | 400*230mm |
| Main Motor Power: | 0.85kw/1.5kw(Horizontal)2.2 |
| Type: | Worktable Milling Machine |
| Object: | Tool |
| Structure: | Bed type |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Precision: | High Precision |

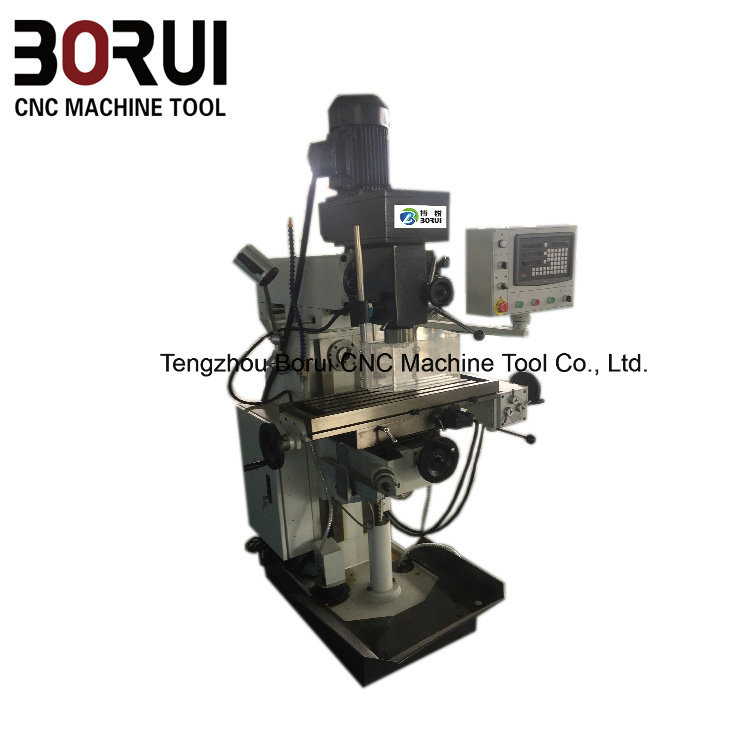

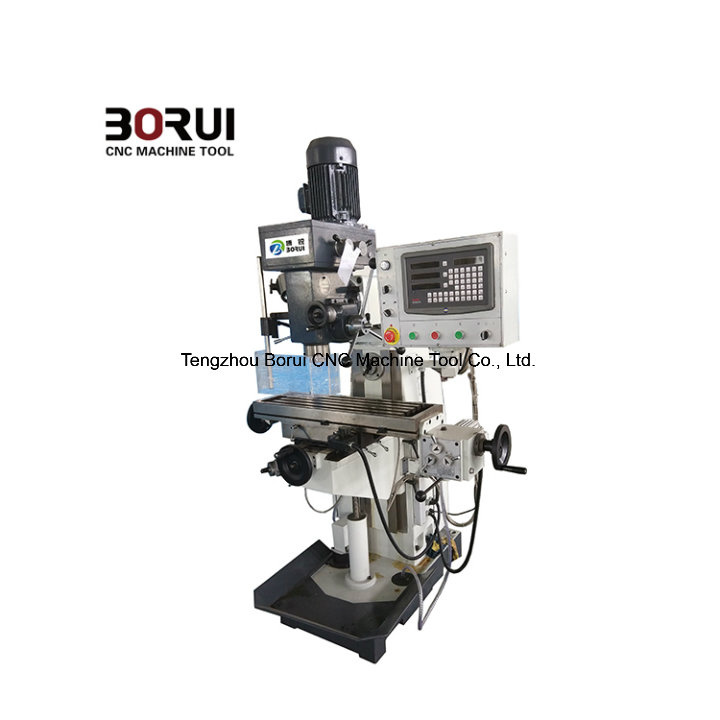

The machine is suitable for all kinds of small and medium parts processing, especially non-ferrous metal materials; Plastic; The cutting of nylon has the advantages of simple structure and flexible operation. It is widely used in single or batch machine manufacturing. Instrument industry; Building decoration and repair department.
The main specification:
| Model | ZX7550 | ZX7550CW | ZX7550C | ZX7550W |
| Max.drilling dia (mm) | 50 | 50 | 50 | 50 |
| Max.horizontal milling dia (mm) | 100 | 100 | 100 | 100 |
| Max.vertical milling dia (mm) | 25 | 25 | 25 | 25 |
| Max.boring dia (mm) | 120 | 120 | 120 | 120 |
| Max.tapping dia | M16 | M16 | M16 | M16(Vertical) |
| Distance.spindle to table surface (mm) | 140-490 | 90-490 | 90-490 | 80-460 |
| Spindle speeds range (r.p.m) | 230-1825 | (Vertical)115-1750 (Horizontal)60-1350 | 115-1750 | 230-1825(Vertical) 80-1300(horizontal) |
| Spindle travel | 120 | 120 | 120 | 120 |
| Table size (mm) | 800×240 | 800×240 | 800×240 | 800x240 |
| Table travel (mm) | 400×230 | 400×230 | 400×230 | 400x230 |
| Overall dimensions (mm) | 1100×1100×2080 | 1280×1100×2080 | 1100×1100×2080 | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5 | ( Vertical)0.85/1.5 (horizontal)2.2 | 0.85/1.5 | 0.85/1.5(Vertical) 1.1(horizontal) |
| N.W/G.W (Kg) | 610/770 | 850/1000 | 610/770 | 700/880 |
Standard Configuration:
·Mill chuck
·Drill chuck
·Inner hexagon spanner
·Work light
·Spindle arbor
·Wrench
·Mchine vice
· Horizontal milling arbor
Optional configuration:
·DRO on X, Y, Z--AXIS
·Clamping kit
·Universal dividing head
·Rotary work table.
The main performance characteristics:
1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
The main performance Advantages:
1.Three axis hardened treatment, high rigidity.
2.vertical horizontal multi-functional ,drilling ,milling, boring operation.
3.X axis mechanical feed,Y.Z axis can be added the device
4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate

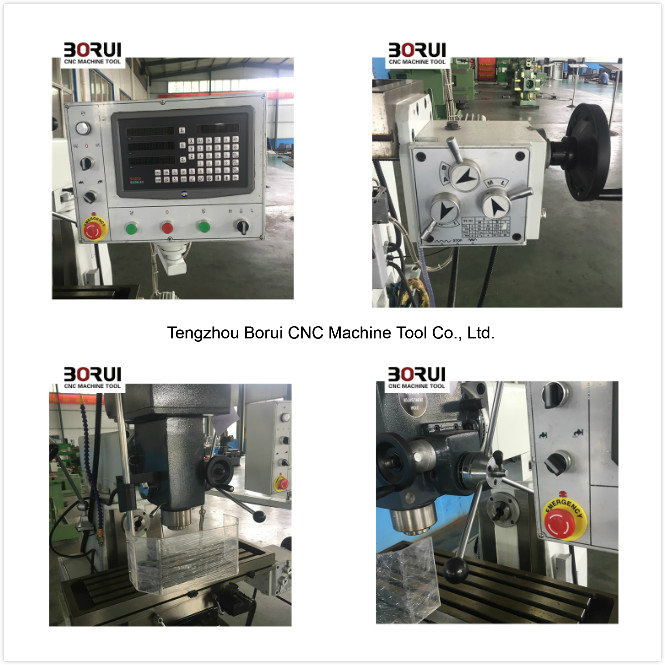

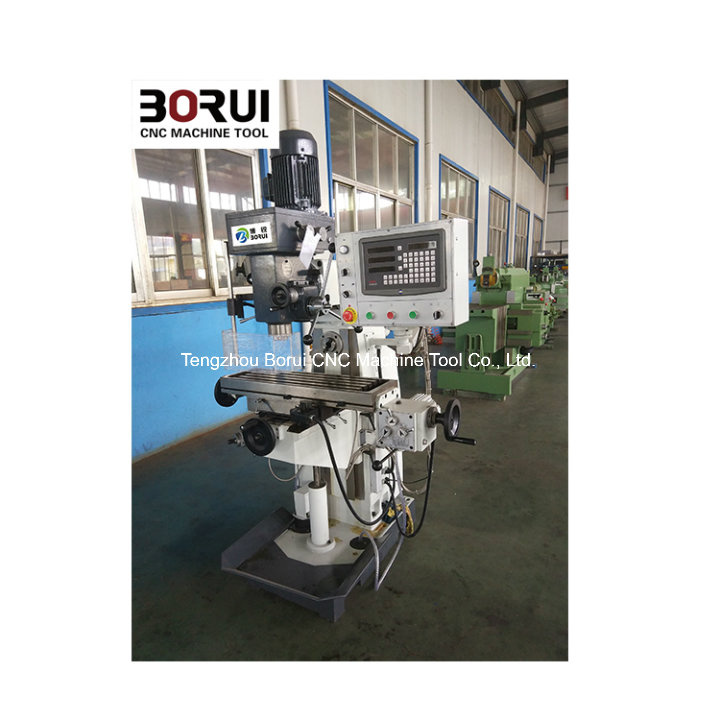

Product Dtails
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q:How can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q:How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
