Luminance 350CD/m2 to 700CD/m2 4.3" 480*272 40 Pins TFT LCD Display
| Price: |
US $ 5-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
LX430B4004A350N |
| Annual Output: |
9, 800, 000PCS |
| LCD Panel Suppliers: |
CPT, Hannstar, CMI, BOE |
| Various Solutions: |
Yes, Available |
| Luminance: |
350-700nits |
| LX Popular Model: |
Yes |
| LCD Type: |
a-Si TFT Active Matrix |
| Display Mode: |
Normally White, Transmissive |
| Pixel Arrangement: |
RGB stripe |
| Usage: |
POS, Consumer, Industrial, Medical, Smart home. |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Response Time: |
30ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| Customized: |
Non-Customized |
Product Description
Established in 2010, LianXun is a high-tech private enterprise that is engaged in the R&D, manufacturing and marketing of LCDs and LCMs.
Ø Main products: TFT LCD modules and TFT displays.
Ø Annual Output: 9,800,000 Pieces
Ø Employee: 100-150
Ø Production Area: 3,000 Square Meters
Ø Production Lines: 3, Full-Automatic Production line.
Ø Contact phone: 86-755-23016548
Ø Our Advantages:
1. Our management team is with an average of 8-12 years experience in LCD industry. We provide customers with expericed technical solution and cost-effective products.
2. Quality Control: Every LCD Module is tested with special instruments or main boards before delivery to ensure 100% working. RMA Rate ≤0.3%. Customers' Satisfaction Rate≥90% .

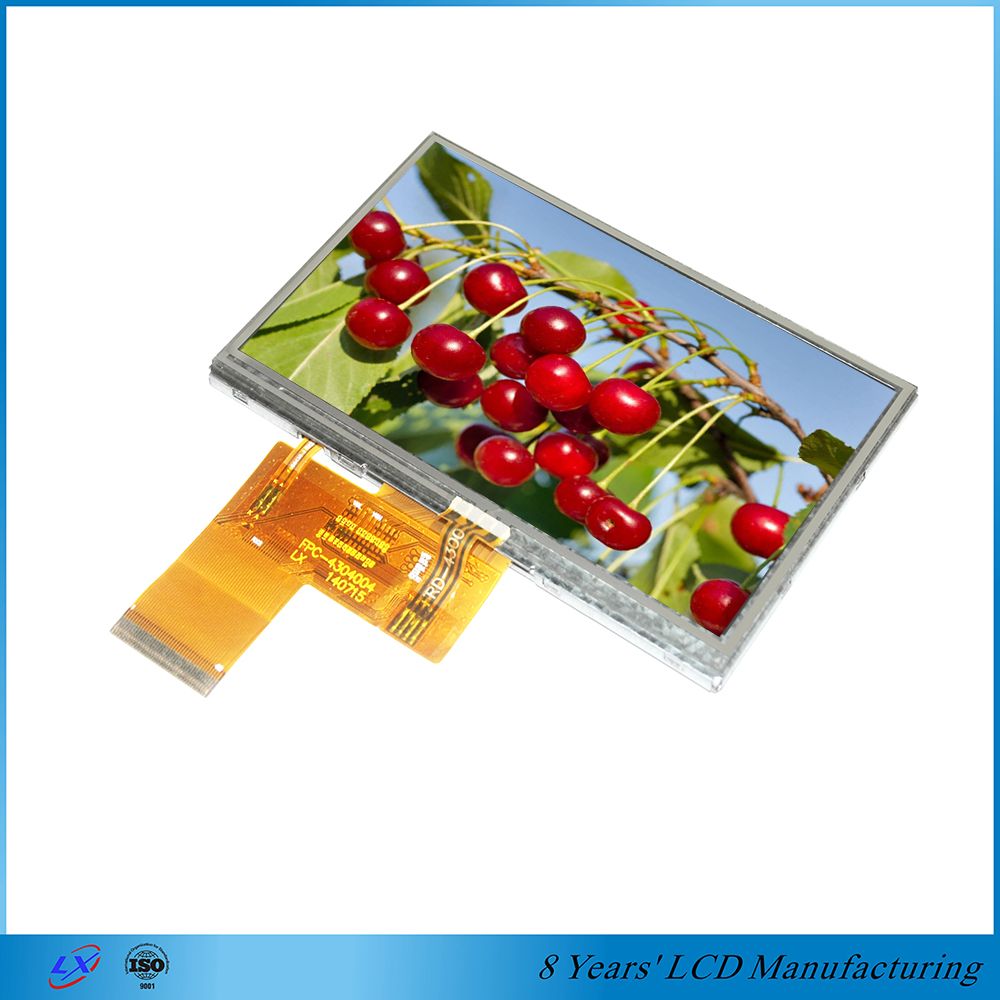

Welcome to Visit our factory! 4.3 inch 480*272 TFT LCD Module. HOT SELLING, Ofilm Available. | Item | Content | Unit |
| Model No. | LX430B4004A350N | / |
| LCD Type | TFT Transmissive | / |
| Viewing Direction | 6:00 | O'clock |
| Module outline(W x H x D) | 105.4x67.1x2.9 | mm |
| Active area (WxH) | 95.04 x53.86 | mm |
| Number of Dots | 480(RGB) x272 | / |
| Driver IC | ST7282 | / |
| Backlight Type | 7 high class LEDS, serial | / |
| Interface Type | 24bits RGB | / |
| Input voltage | 3.3 | V |
| Luminance:260-700nits available. |
FAQQ1. Can I have a sample order?
A: Yes, sample order is always welcome for new projects or as replacement of running projects.
Q2. What is the lead time for Sample order and Mass Production order?
A:
For LX standard products, the lead time for samples are usually 1-7 days.
For Customized products, it depends on the change requirements for FPC, Backlight…
For Mass production, we usually make delivery among 2-4weeks, special size may need some longer time. In summary, based on our years of big output, we have been keeping good relationship with Taiwan LCD panel and IC suppliers, we had a steady supply even when there was heavy shortage of materials.
Q3. Do you have any MOQ?
A: Yes, it depends on different sizes of products. Please refer to our sales. Thanks.
Q4.How long is the warranty?
A: Usually 12 Months. If there is any defect upon using within the warranty period, we require our clients to return the goods to us, with shipping cost paid by us.
Q5. How do I work with you on Customized products?
A: At the beginning please provide us any drawing , Specification, any special requirements…----- Our engineers will work on the compatible solution and also moulds cost if any. ----- We provide samples for approval. ---- We make modification if necessary. ---- We do small quantity of trial order. ---- We do mass production.
Q6. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. While it requires MOQ, please refer to our sales, thanks.
Q7. What about your Packing?
Can I have my customized products with customized packing?
A: All the products are packed in right way to keep it safe and looks pleasant. Usually for small sizes of products we use tray + carton, for bigger sizes we use foam slot + carton.
Yes, we also design packages according to customers' requirements.
Q8: Are you able to offer enough technical support about your products?
A: Our management team owns an average of 8-12 years of experience in LCD Display/Module industry. Our engineers own sufficient knowledge and field experience.
Q9: How soon do you usually reply emails?
A: Our responsible sales usually reply WITHIN 24hours.
Q10. Which express do you often use to make delivery?
A: We usually ship by DHL, UPS, FedEx or SF. It usually takes 3-7 days. Some customers prefer shipping with their own account# , while some clients choose our forwarder agent. PRODUCTS LIST
Shenzhen LianXun Optronics Co., Ltd (LianXun), founded in 2010, is engaged
In the designing, producing, marketing and selling of various types of small to medium sized liquid crystal displays("LCDs" ) and liquid crystal display modules ("LCMs").

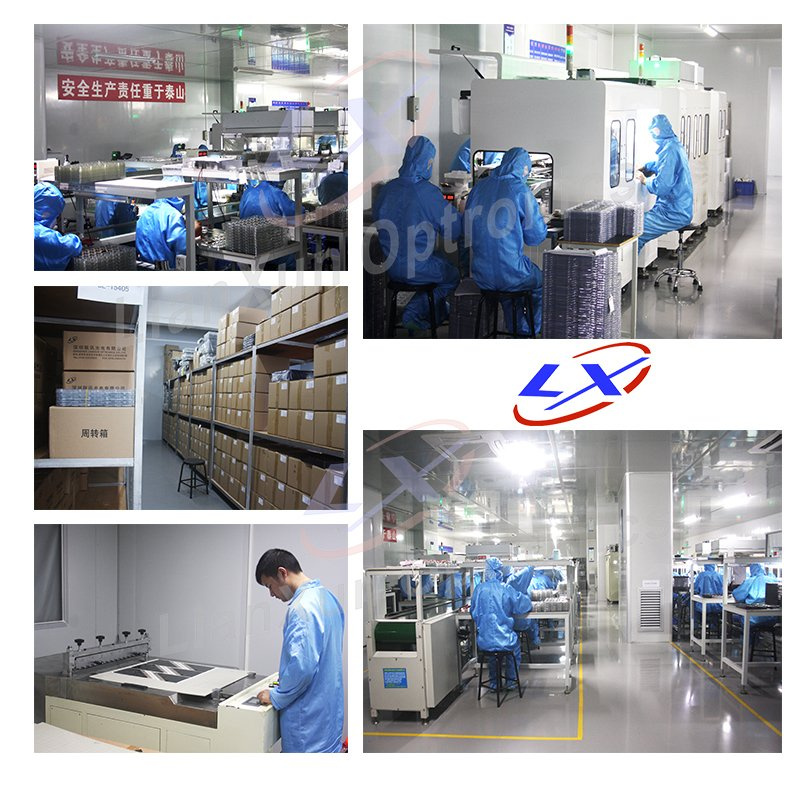

We owns about 100 workers, a total production area of 2200 square meters, more than 800 square meters of office space and storage areas. Our current annual output is approximately 9, 800, 000PCS. Our facilities include 3 standardized production lines in a fully-enclosed dust-free, temperature and humidity controlled workshop.
The leaders in LianXun owns an average of 8-12 years in the LCD and LCM industries. Also, we have strong R&D capabilities, responsible staffs, advanced equipments and sophisticated manufacturing experience, which all enable us to design, develop produce LCMs and provide all-round service according to customers' requirements.
What's more, our reasonable products prices, timely delivery and stringent quality control systems are making LianXun one of the top suppliers of LCDs and LCMs in China.
We have provided our products to customers over 10 countries and regions across Japan, Korea, Brazil, Southeast Asia, Europe and North America.

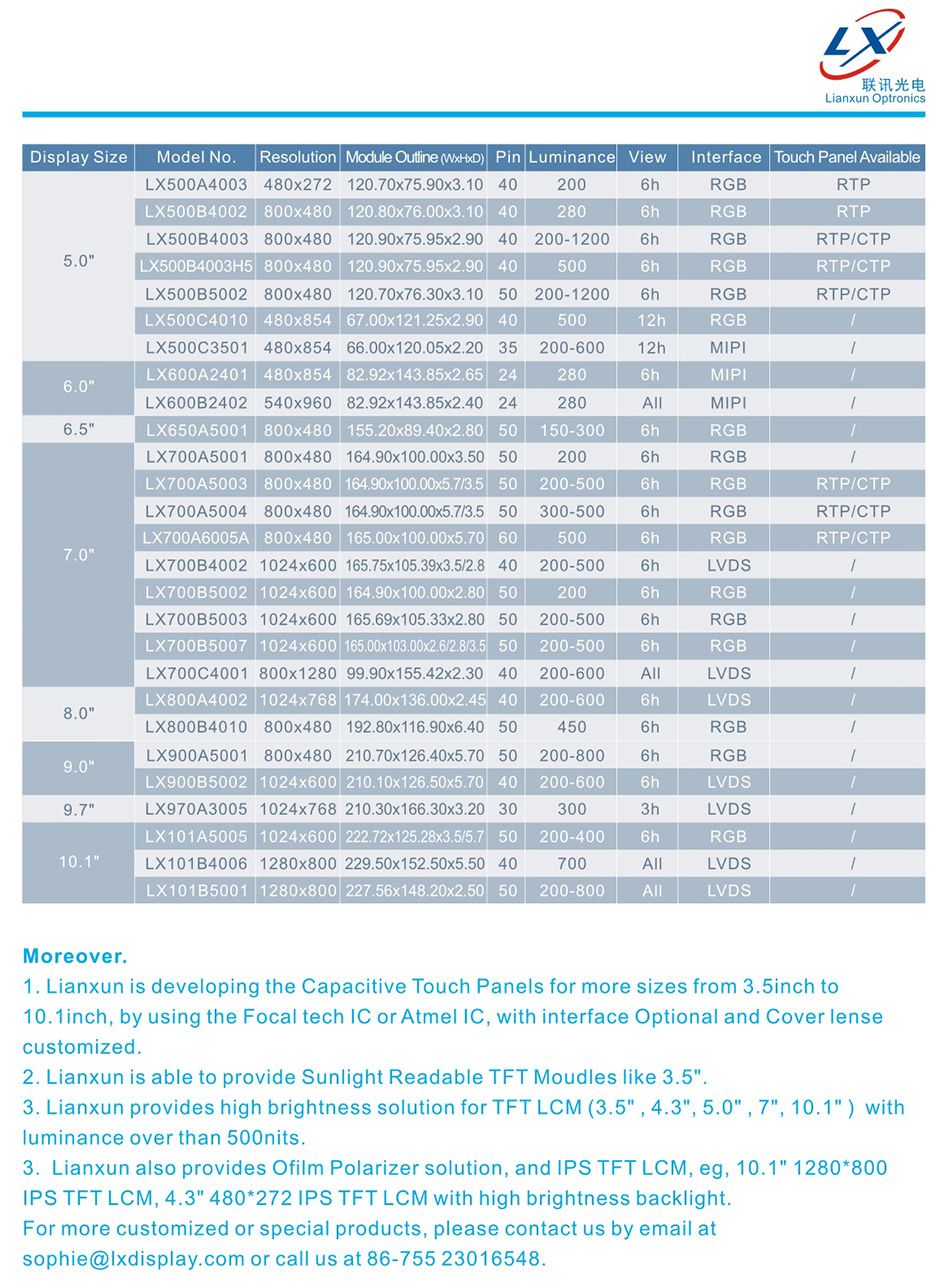

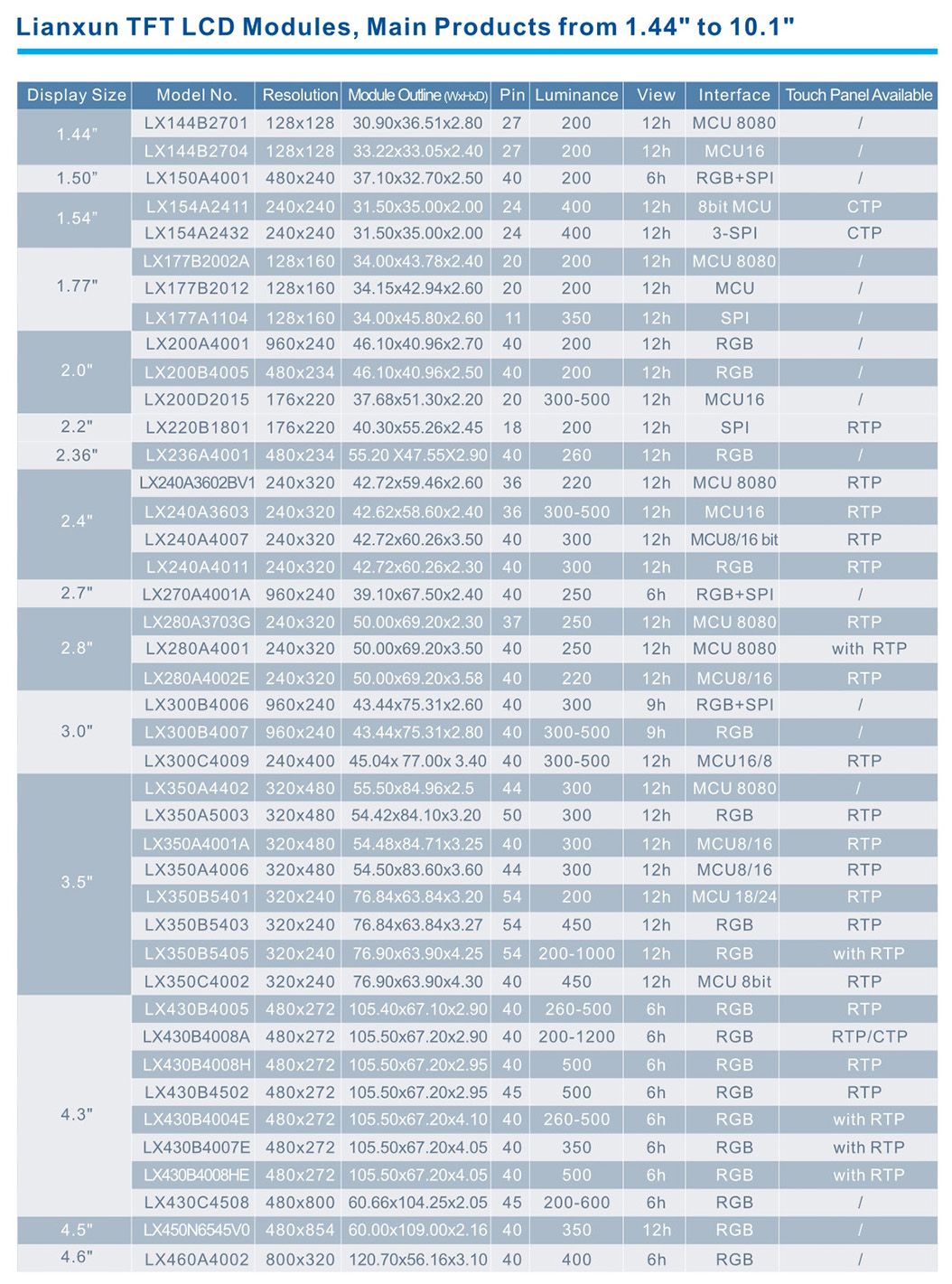

Our products range from 1.44" to 10.1", including 1.44", 1.5", 1.54", 1.77", 2.0", 2.4", 2.7", 2.8", 3.0", 3.5", 4.3", 5.0", 7.0", 9.7", 10.1".
Our products are widely applied to
Consumer Electronics, eg, Wearable devices(Smart watch), Car DVRs, Advertising player, Digital photo frame, GPS device, Video card.
Industrial Equipments, eg, Medical equipment, Meters&Apparatus, Refueling machine, Electricity meter, Gas meter.
Education Equipments, eg, Digital dictionary, Personal Digital Assistant(PDA), Learning machine.
Monitor Devices, such as Visible doorbell.
Handheld Devices, such as Barcode machine.
Home Automation,
Moreover, we provide customized products to clients home and abroad.
We been adhering to ISO9001: 2008 standard strictly in our production. We have also received ISO9001: 2015 certificate recently. All our products must pass necessary tests, such as High and low temperature working test, High and low temperature keeping test, vibration test, anti-interference test and package drop test. Our experience and proficiency make the qualification rate always being 99.7% or above.
With the operation principle of "Honest, Win-Win", we take seriously of every customer, staff and supplier. For many years, we keep "Quality first, Customer foremost" as our core value. Our "High-performance, High quality" products have rewarded us with much good reputation. Meanwhile, our "High class, High efficiency" service has acquire big trust from our customers worldwide.
