Luxurious Server Cabinet with 1200kg Capacity
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TN-802 |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Fan Number: |
Four |
| Certification: |
RoHS |
| Condition: |
New |
| Installation: |
Heavy Duty |
| Capacity: |
32u ~52u |
Product Description

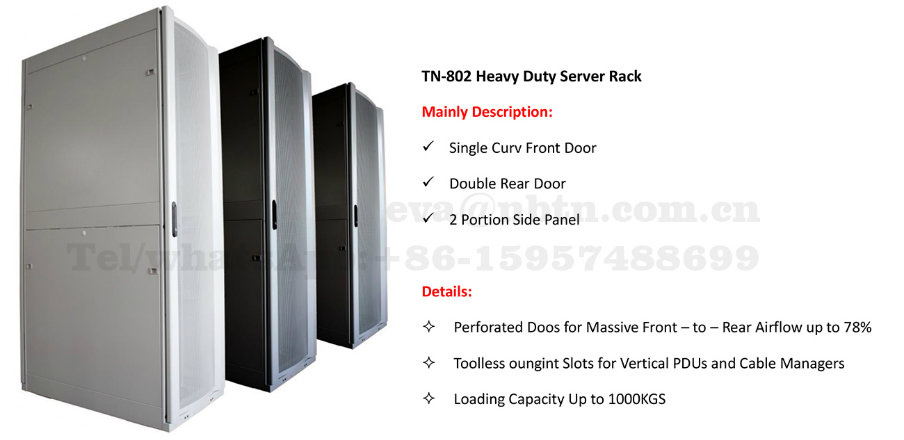

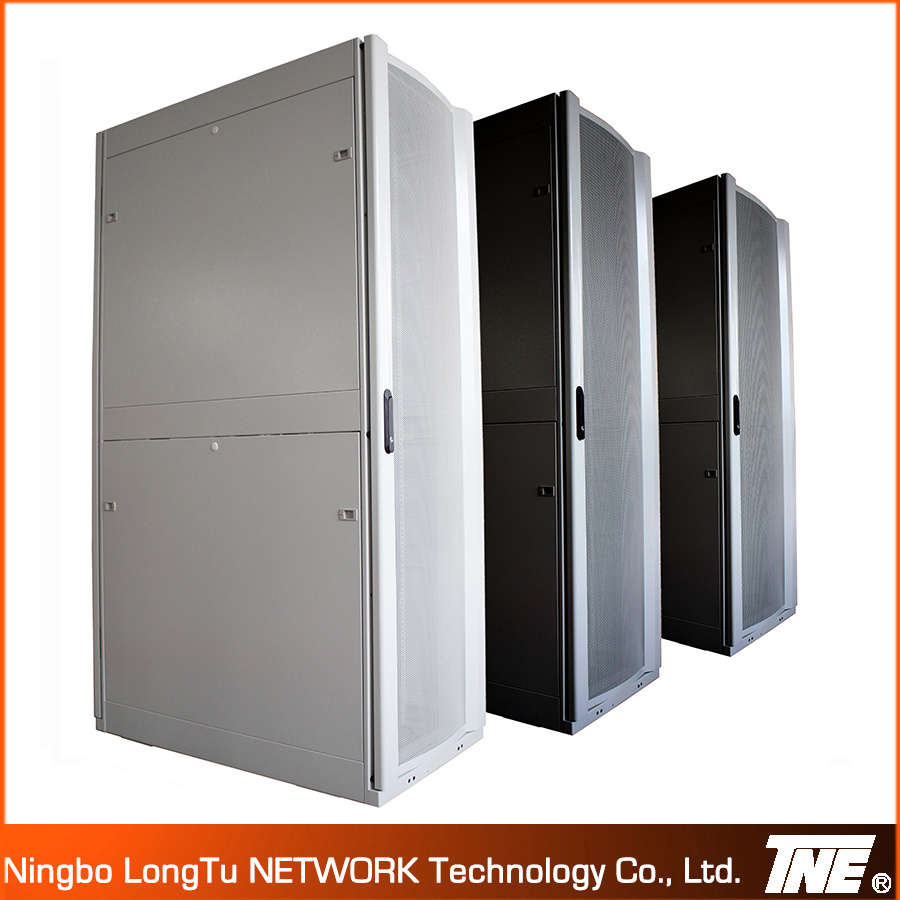

Luxurious Server Cabinet with 1200kg Capacity

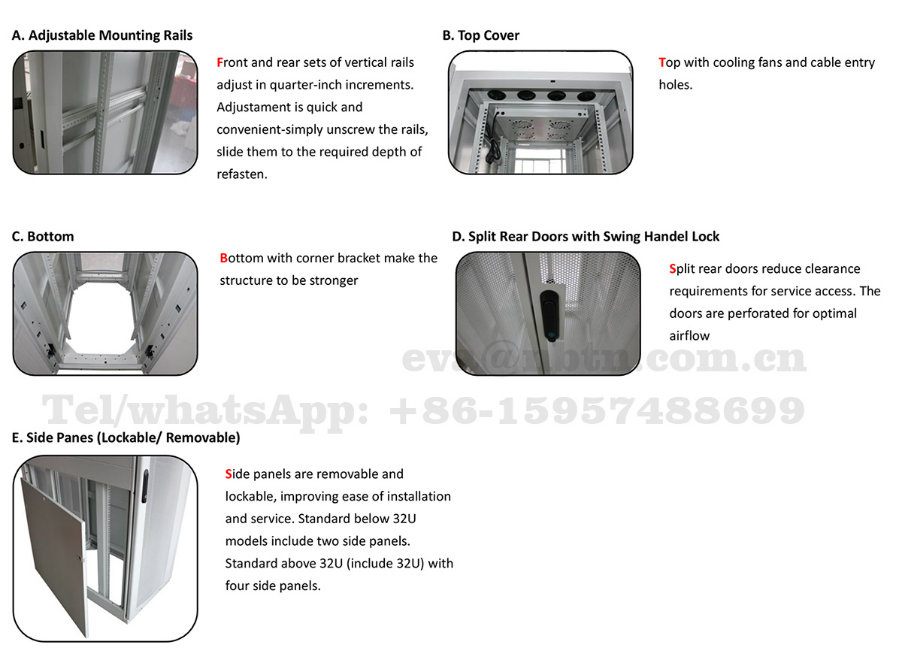

TN-802 Series server rack is the ultimate solution designed and engineered for demanding data center enviroments. To achieve optimum versatility within the server rack, users can set multiple depths throughout the rack by adjustable 19'' mounting rails mounted on heavy duty side supports. Horizontally divided side panels provide ease of access and convenient post-installation maintenance. Over 78% perforations on front and rear door enable optimum airflow within the rack. Flat-pack option enables savings up to 60% in the transport cost and warehouse space. Features

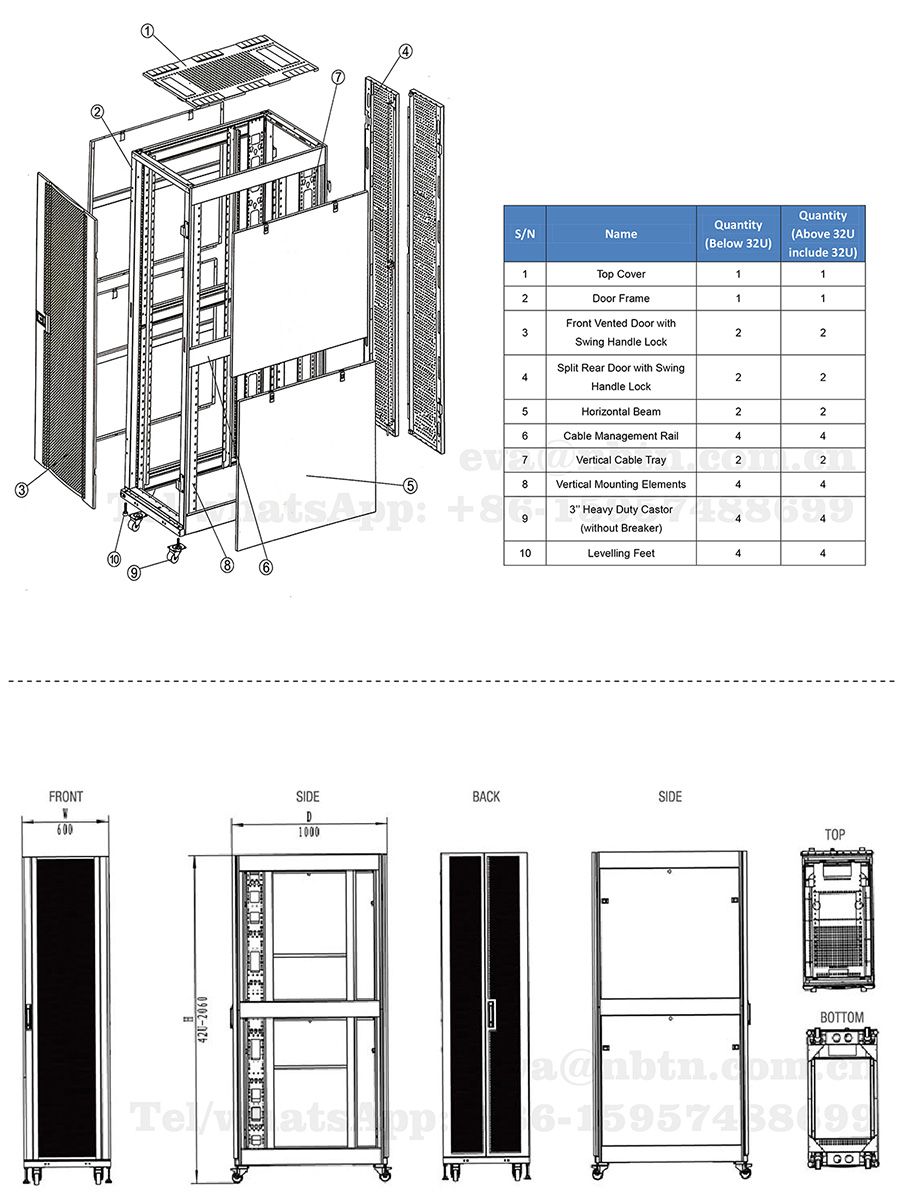

Components
Size Form| Model No. | Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-802
| 18U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 988mm |
TN-802
| 22U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1166mm |
TN-802
| 27U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1388mm |
TN-802
| 32U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1610mm |
TN-802
| 37U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 1833mm |
TN-802
| 42U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2055mm |
TN-802
| 45U | 600mm/750mm/800mm | 600mm/800mm/1000mm/1200mm | 2188mm |
TN-802
| 47U | 600mm/750mm/800mm | 600mm/800mm/1000mm /1200mm |
2277mm
|
FAQ
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different.
We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...

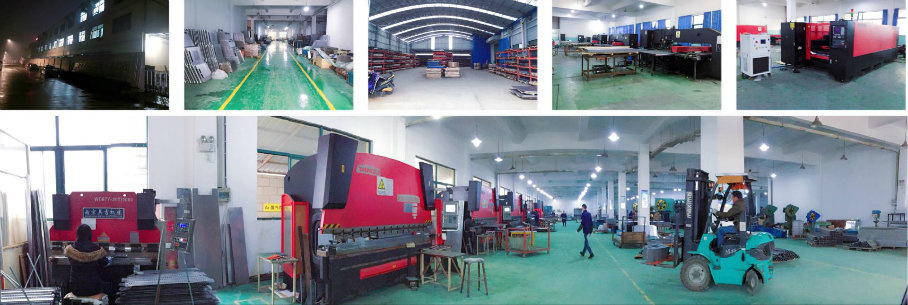

TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
