| Prod Model: |
LZ550 |
| Application: |
Quarry |
| Color: |
Blue and White |
Product Description

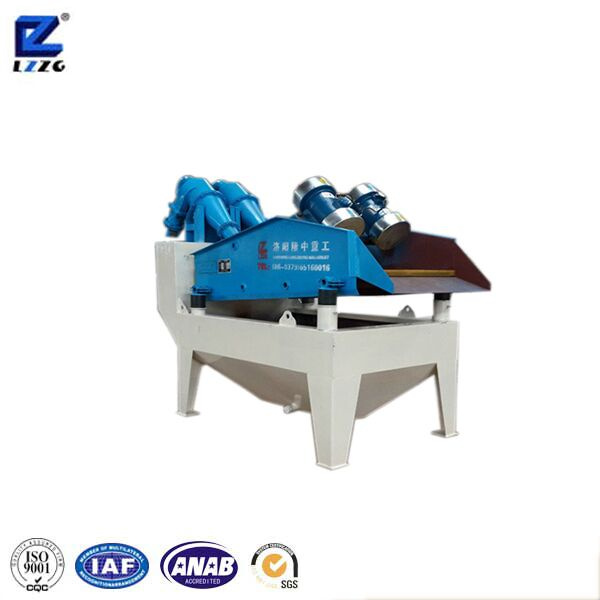

LZ550 Sand Recycling Equipment for Sale, New Sand Washing Machine
Brief intruduction
LZ patent sand recycle system is designed on the base of absorbing world advanced technology and combining with the domestic applications of sand making industrial. It is widely used in rock crushing and washing plant, crushed sand or natural sand washing plant, mineral tailing processing site, etc.
Features
1. It can effectively reduce the loss amounts of the fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content.
2. The fine material can be recycled as high as 95%, with incomparable technical and ecnomic advantages.
3. Stable vibration, long serving life and easy maintence.
4. Fines 0.1-3mm brings good profits.
5. Unique in market, LZ patent product.
Tech specifications
Model
| Pump | Whirlcone
(mm)
| Sieve dehydration | Productivity
(m³/h)
| Weight
(kg)
|
| Power(kw) | Material | Material | Power(kw) |
| LZ250 | 7.5-11 | Cr26 | 250 | PU | 2x0.55 | 30-80 | 2050 |
| LZ300 | 11-15 | Cr26 | 300 | PU | 2x0.75 | 40-100 | 2200 |
| LZ350 | 15-18.5 | Cr26 | 350 | PU | 2x0.75 | 70-130 | 2555 |
| LZ550 | 18.5-22 | Cr26 | 550 | PU | 2x1.1 | 100-220 | 3250 |
| LZ650 | 18.5-30 | Cr26 | 650 | PU | 2x1.1 | 120-272 | 3945 |
| LZ750 | 37-55 | Cr26 | 750 | PU | 2x1.5 | 180-350 | 4900 |
| LZ900 | 55-65 | Cr26 | 900 | PU | 2x2.2 | 250-500 | 5650 |
| LZ1200 | 60-74 | Cr26 | 1200 | PU | 2x2.2 | 500-650 | 6750 |
Applications
LZ series fine sand recycle equipment has absorbed foreign advanced technology and its design combined with sand field actual situation, it prossess the international advanced level and is widely used in mud purification, artificial sand production line, hydropower station and sand aggregate system, glass raw material processing system and coarse slime recovery, and fine mterial recovery.

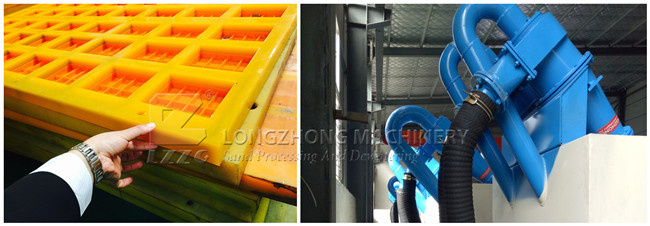

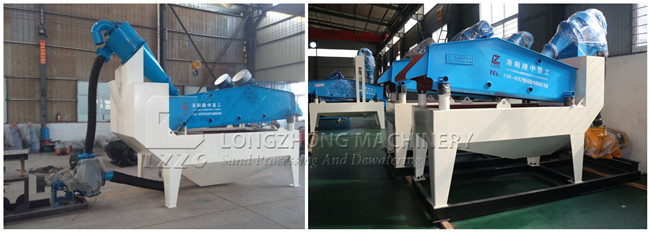

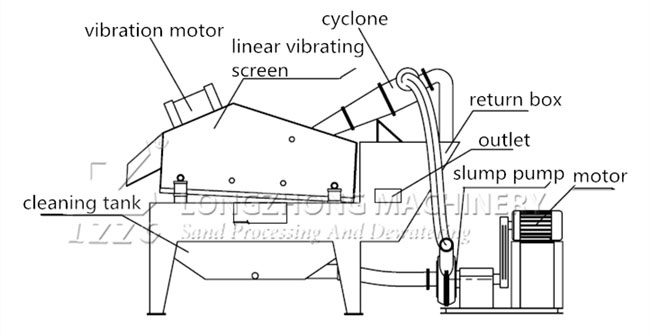

Detailed Images
1. Using heavy hammer to disassemble and install the vibration generator is prohibited, and tension-compression method is needed.
2. High strength bolt can be fastened by using torque wrench or other methods.
* The users can draw up the machine operation produres and safety rules according to their own general requirements.
Luoyang Longzhong Heavy Machinery Co., Ltd. is an international enterprise specialized in R & D, production and marketing of mining machinery and industrial milling equipment. Our company develope the production of mining machinery and industrial milling equipment, crusher products are widely used in mining, metallurgy, construction, chemical, power, steel and other industries.
Since its inception, the company quickly occupied the global market by its reliable product quality and perfect after-sales service. Our company has passed ISO9001-2008 quality certificate, The products are exported to Europe, Australia, North America, South America, Southeast Asia, the Middle East, Central Asia, Africa and other countries.
The company has senior design engineers of the mining machinery and industrial milling equipment, domestic and foreign famous universities, degrees, and other technical elites, to provide an inexhaustible driving force for sustainable development of enterprises, and they work together to ensure the long product development, design, production and after-sales service in every aspect of efficient and perfect.
Our main products include:
1) Washing and Screening Plant: Sand Washing Plant, Sand Recycling Machine, Vibrating Screen, High Frequency Linear Screen, Vibrating Feeder, Belt Conveyors and etc.
2) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, VSI crusher and so on.
3) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, Raymond mill and so on.
Company based on market demands, always adhere to the development strategy of large research and development, precise production, and excellent service, by virtue of the excellent quality products and efficient service to meet customer needs, so that the Luoyang Longzhong Heavy Machinery thinks globally! We will fully meet your diverse needs, and cast your new brilliant!
