| Prod Model: |
DS-14 |
| Main Diameter Size: |
900-3500mm |
| Core Thickness: |
5.0-9.5mm |
| Segment Height: |
15/20mm |
| Segment Shape: |
M |
| Cutting Material: |
Granite |
| OEM&ODM: |
Yes |
| Customized: |
Customized |
| Brand: |
Jdk |
| Delivery Time: |
3-5days |
| Export Market: |
Global |
Product Description

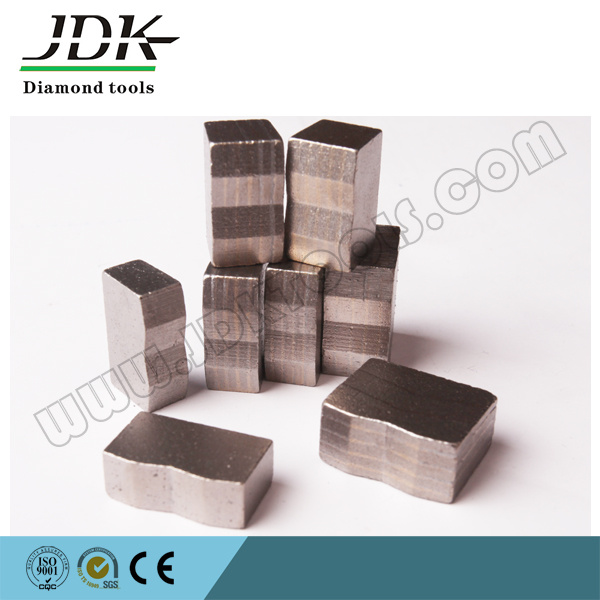

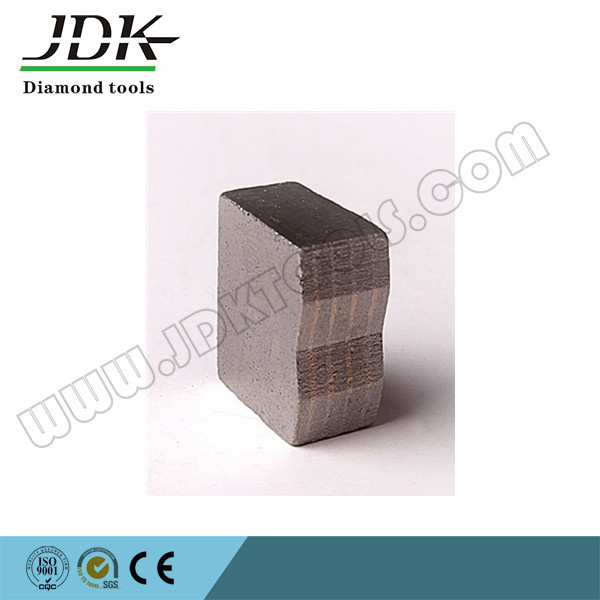

Product description:Diamond Segment for American Sandstone, Bluestone, and Limestone.
Diamond segments consist of small-size diamonds and metal bond materials. The metal bond materials may include the powders of Cu, Sn, Fe, AG, Co, Ni, WC, Mo, graphite, etc. The diamonds are mixed with the bond materials, and the mixture is loaded into molds. After cold pressing, hot pressing sintering, and arc grinding, diamond segments are formed .
Specification:| Diameter | Inch | Core Thickness | Segment Size | Segment Number |
| mm | | mm | mm | pcs |
| φ900 | 36" | 5.0/5.5 | 24*6.6/6.0*15(20) | 64 |
| φ1000 | 40" | 5.0/5.5 | 23*7.0/6.2*15(20) | 70 |
| φ1200 | 48" | 6.0 | 23*7.5/6.9*15(20) | 80 |
| φ1350 | 54" | 6.5 | 23*8.0/7.2*15(20) | 88 |
| φ1600 | 64" | 7.2 | 23*9.2/8.4*15(20) | 108 |
| φ1800 | 72" | 8.0 | 24*10/9.2*15(20) | 120 |
| φ2000 | 80" | 8.0 | 24*10.4/9.6*15(20) | 128 |
| φ2200 | 88" | 9.0 | 24*11/10.2*15(20) | 132 |
| φ2500 | 110" | 9.0 | 24*11.5/10.5*15(20) | 140 |
| φ3000 | 120" | 10.0 | 24*12.5/11.5*15(20) | 160 |
| φ3500 | 140" | 10.0 | 24*14.5/13.5*15 (20) | 180 |
| Other Specifications Are Available Upon Request |
Our Feature:Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEMOur advantage:1. Manufacturer with more than 15 years experience2. A great quantity of formula special for all kinds of different stone3. Approved quality with factory competitive price4. Long lifespan, good sharpness, stable performance and high cutting efficiency5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.Payment:T/T, Western Union, L/C, CashDelivery time:For samples, shipped within 3 days after receiving the deposit, For regular order, around 3-7 days, depends on the quantity of your order.Packaging:The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.Shipment:<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
