| Prod Model: |
DCB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
5mm-115mm |
| Connection Type: |
M14, 5/8"-11 Thread, Gas 1/2" |
| Length: |
Based on Your Demand |
| Brand: |
Extra Sharp |
| Drilling: |
Granite,Marble |
| Type: |
Core Drill |

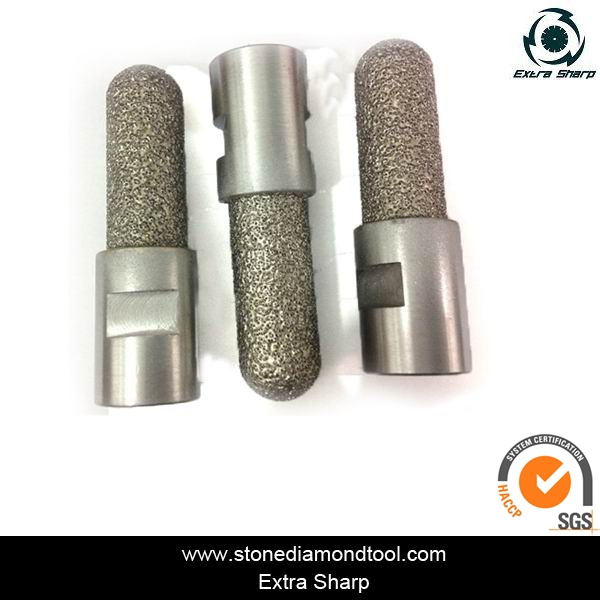

Product Description
Core Drill Bits be used for protable electric driller and bench drilling machine. There are high speed and low speed stone bits. Long lifespan and high efficiency. Include two connections. Shank and thread.
Diamond Drills are available from inventory in many different specifications, outside & inside diameters, drilling depths, bond types, diamond mesh sizes, mountings, & tolerances. We will work with you to determine your needs, and recommend the right solution for your specific material/application. You can count on us to improve you drilling operation to its ultimate efficiency.
Application: Granite and marble.
Segment: Crown ring (dia14-dia50) and segmented (dia60-dia152).
Wet use, center water feed.
Total length: 50mm, 80mm, 100mm, 120mm, 360mm.
Connection: Shank, M14, M16, 5/8"-11, GAS1/2"for CNC machine.
Advantage: Fast and smooth cutting, long lifetime.
ADVANTAGES:
Less loss of material
Minimum material deformation
Less heat generation
Faster drilling speed
Less chipping
Better finish quality
| Product Name | Size | Connection |
|
| English Drill For Granite | 20x70L | M14. M16.5/8" -11 |
|
| 25(1' ' ) |
|
| 35(1-3/8' ' ) |
|
| 38(1-1/2' ' ) |
|
| 40(1_5/8' ' ) |
|
| 50(2' ' ) |
|
| 100(4" ) |
|
| Construction Drills Bits for Granite. Concrete |
| Size | Outer diameter | Body Thickness | Length of bits |
| 28mm | 27.2mm | 2.8 | 40/400mm |
| 32mm | 32.2mm | 3.0 | 40/400mm |
| 38mm | 38.2mm | 3.2 | 40/450mm |
| 44mm | 44.2mm | 3.2 | 40/451mm |
| 51mm | 51.2mm | 3.2 | 40/452mm |
| 63mm | 63.2mm | 3.4 | 350/450mm |
| 76mm | 76.2mm | 3.4 | 350/450mm |
| 83mm | 83.2mm | 3.4 | 350/450mm |
Xiamen Diamond Tools Co., Ltd. We're a leading Diamond tool products manufacturer and exporter in Fujian China More than 10 years' history. With perfect and full industrial chain for diamond tools, as well as convenient delivery system. We always commit to manufacture diamond tools. Based on advanced technology and comprehensively systematic research and analysis, After years of hands on experience on industrial complication, trouble shooting and successes, we have been developing diamond tools in different application featured with continuous and reliable quality.
Our main products are various of specification diamond saw blade, flexible polishing pads, diamond grinding wheel, diamond segments, diamond cup wheels, diamond wire etc. All these products have reached international advanced standard, which extensively used for cutting, polishing & grinding stone, concrete, asphalt, porcelain, glass and so on. Our company is well-known for high quality, Fast Delivery, reasonable price and good service in this line.
At present, our products are well-accepted all over domestic market, and also exported to USA, Canada, Germany, Italy, Portugal, Poland, Russia, Brazil, Chile, Australia, UAE, South Africa, etc.
Listens closely to your requirements and then translate your specifications into high quality products and services. If any questions, please feel free to contact us at any time.
