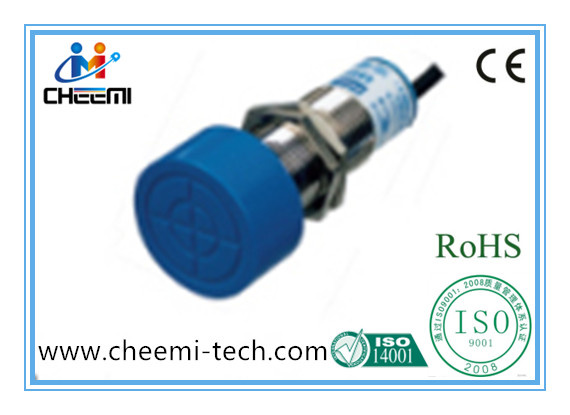

M40 Non-Flush Mounting Inductive Proximity Sensor PNP NPN with Detection Distance 20mm
| Price: |
US $ 0.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
CJU20-40M |
| Rated Action Distance: |
20mm |
| Installation: |
Non-Flush Mounting |
| Reliable Movement Distance: |
0~17mm |
| Working Current: |
0~300 Ma |
| Connection Form: |
2m, PVC |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
PNP/NPN |
| Application: |
Position Sensor, Speed Sensor |
Product Description
IntroductionInductive proximity switch is a device for realizing the non-electrical measurement by inductive winding or the change of coefficient of mutual induction.- It has high resolution and accuracy for the monitoring and measurement of presence, movement and position of metallic objects.
- The operating distance of the sensor depends on the coil's size as well as the target's shape, size and material.
- It is divided into two categories according to the working state :
NO - Normal Open type, NC - Normal Close typeFeatures:- Equivalent to the same type of the other brands (P+F and TURCK).
- Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
- Newly added current over-load protection; the elements are made of imported chip
- Long service life, high reliability and strong resistance property to environment
- Red LED indicates that it's available to detect the sensor operating state
- Full thread shape to enlarge the installation space; can use wrench and clamp directly
- Countermeasure to improve the housing intensity and to solve disconnection

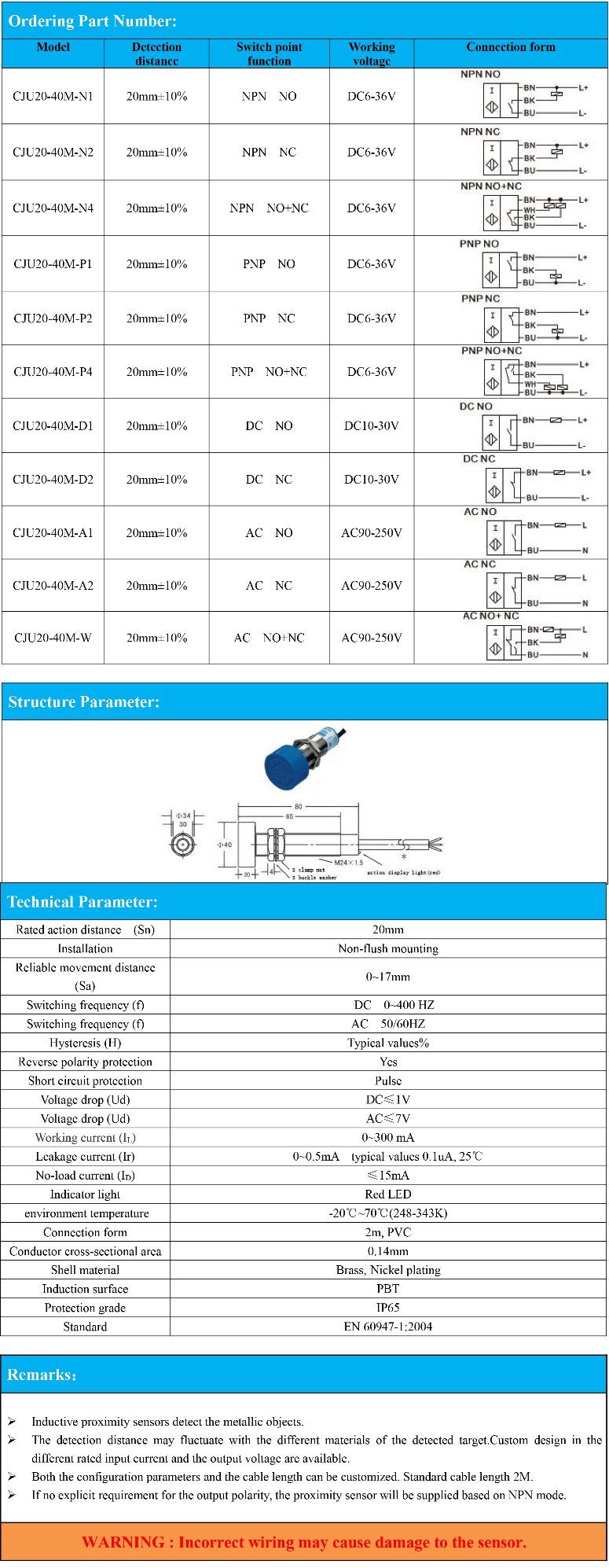

IP65 protection structure(IEC specification)Specification
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
