| Price: | US $ 19.5-20/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | various OEM |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe |
| Size: | D4-400mm |
| Precision: | High |
| MOQ: | No |
| Delivery: | Fast |
| Sample: | Available |
| Guarantee: | 3years |
| Material: | Metal Rubber |
| Shape: | O-Ring |
| Standard: | Nonstandard |

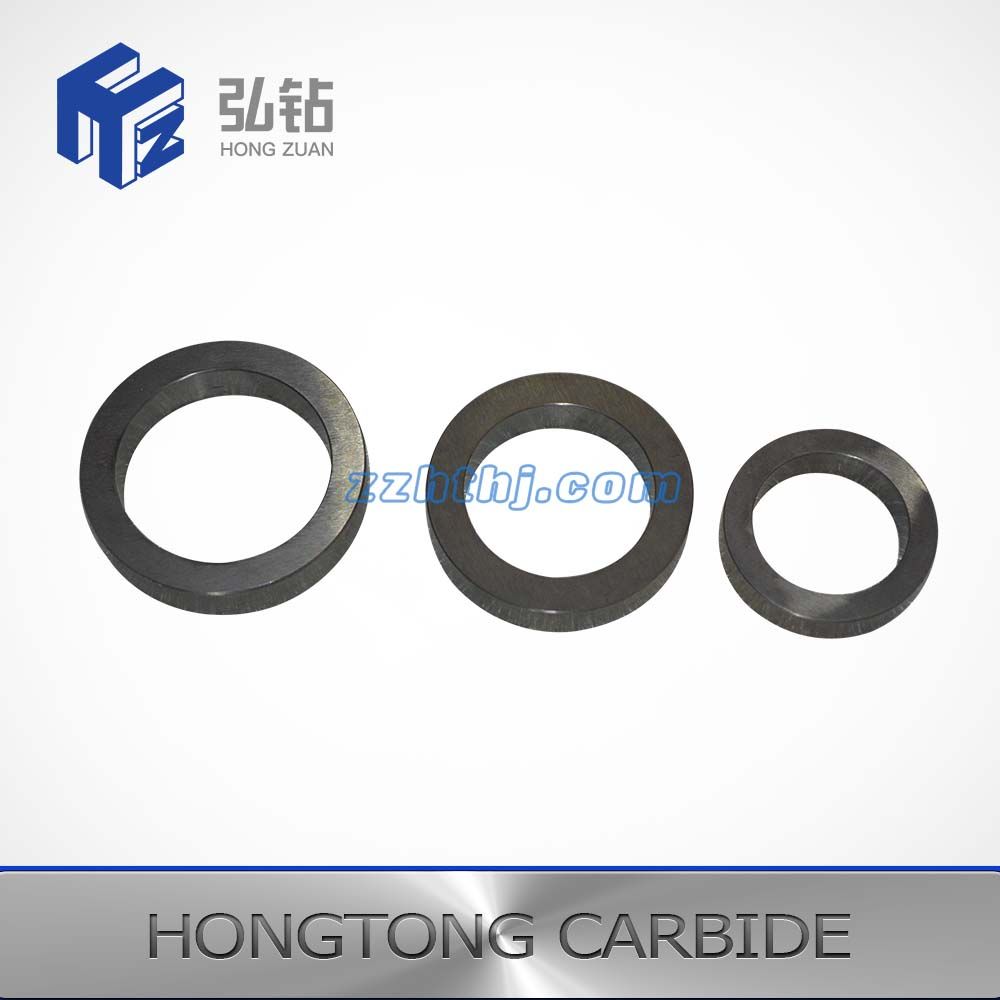

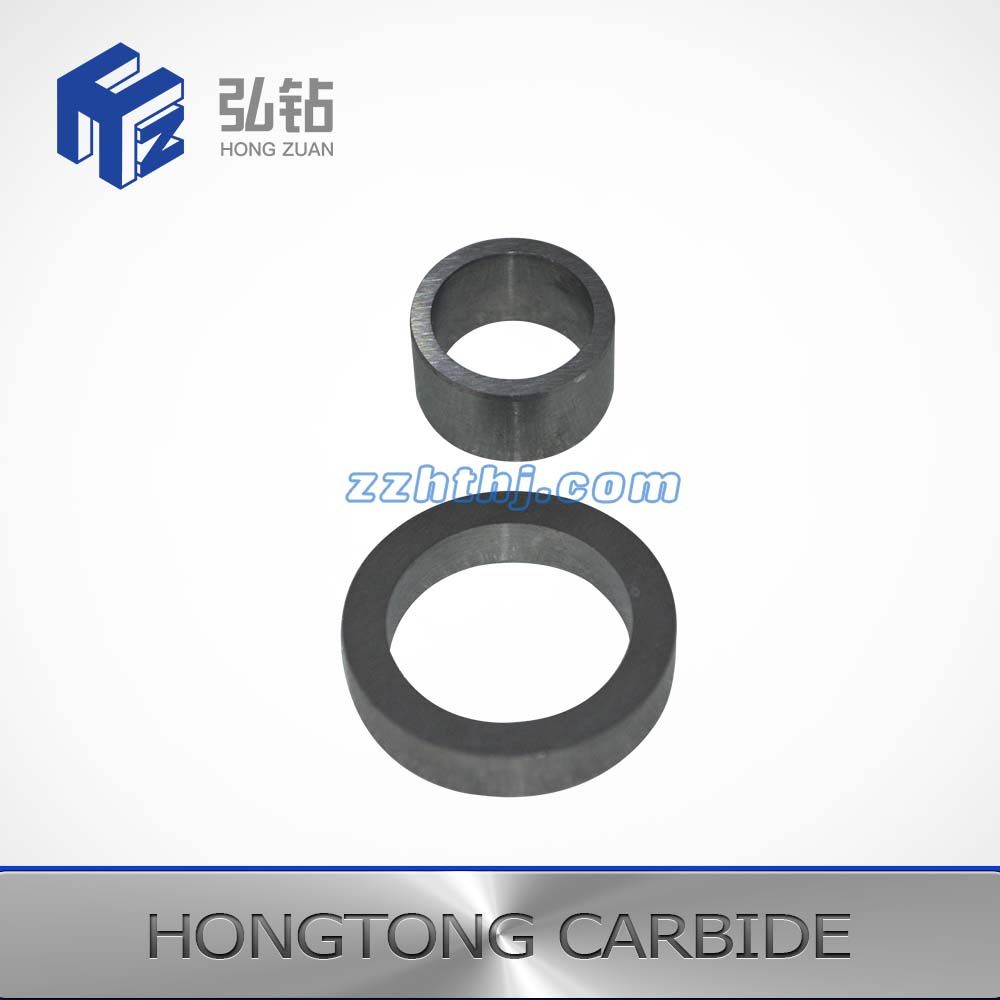

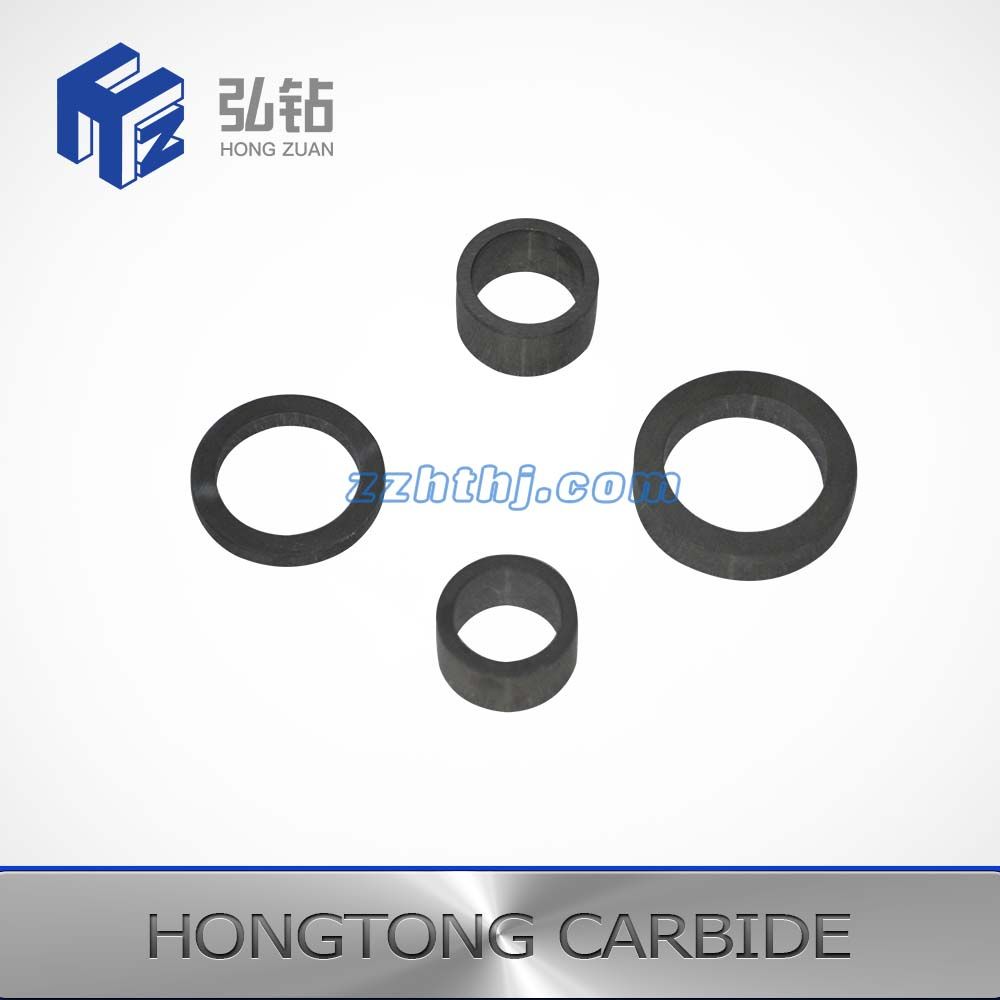

Tugsten carbide seal rings
Application.
Tungsten Carbide Seal Rings has the characters of high wear resistance, high corrosion resistance and good compressive properties. They are used as Mechanical Seal faces in pumps, Compressors and Agitators, widely used in Oil Refineries, Petrochemical plants, Fertilizer Plants, and Drugs/Pharmaceutical Industries.
Properties.
--Superior wear resistance
--High hardness and mechanical strength
--Good corrosion resistance
--High precision for tolerance
--OEM & ODM are welcomed
--Fast delivery and after-sale service timely
Grades recommend.
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
