| Prod Model: |
TYQD-P |
| Operating Speed: |
50~800 mm/S |
| Material: |
Aluminum |
| Structure: |
Piston Cylinder |
| Power: |
Pneumatic |
| Standard: |
Nonstandard |
| Pressure Direction: |
Double-acting Cylinder |

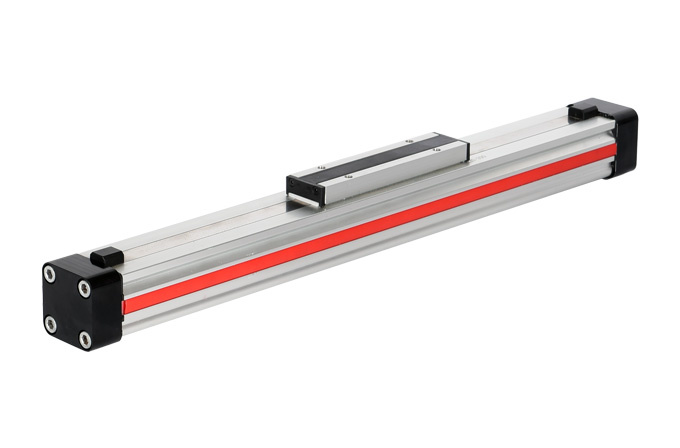

Product Description
Characteristics according to VDI 3292 Pressures quoted as gauge pressure Rodless
Pneumatic
Cylinder
ø 10-80 mm
Characteristics
General Features
Type
Symbol Unit Description
Rodless cylinder
Series OSP-P
System Double-acting, with cushioning,
position sensing capability
Mounting See drawings
Threaded OSP
OSKIA
Air Connection
Ambient
temperature
range
ϑϑ
°C
°C
-10 Other temperature ranges SYSTEM
min +80 on request PLUS
max
Weight (mass)
Installation
Medium
kg See table below
In any position
Standard Versions:
• Double-acting with adjustable
end cushioning
• With magnetic
piston for position sensing
Filtered, unlubricated compressed air
(other media on request)
Lubrication Permanent grease lubrication
(additional oil mist lubrication
not required) Special Versions:
• Stainless steel screws
• Slow speed lubrication
• Viton® seals
• Both air connections on one end
• Air connection on the end-face
• Integrated Valves
Option: special slow speed grease
Cylinder Profile Anodized aluminium
Carrier Anodized aluminium
(piston)
End caps
Sealing bands
Seals
Aluminium, lacquered
Corrosion resistant steel
NBR (Option: Viton®) SeriesOSP-P..
Screws Galvanized steel
Option: stainless steel
Dust covers,
wipers
Plastic
Max. operating pressure pmax bar 8
Weight (mass) kg
Cylinder series Weight (Mass) kg
(Basic cylinder) per 100 mm stroke
OSP-P10
OSP-P16
OSP-P25
OSP-P32
OSP-P40
OSP-P50
OSP-P63
OSP-P80
At 0 mm stroke
0.087
0.22
0.052
0.1
0.65 0.197
0.354
0.415
0.566
0.925
1.262
1.44
1.95
3.53
6.41
12.46
• End cap can be
rotated 4 x 90° to
position air connection
as desired
Size Comparison
P10 P16 P25 P32 P40 P50 P63 P80
• Free choice of stroke
length up to 6000 mm
(longer strokes on
