Machinery Parts DIN6796 Conical Lock Washers/Fastener (DIN6796)
| Price: |
US $ 0.01-0.1/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DIN6796 |
| Delivery Time: |
3-20 Working Days |
| MOQ: |
1000PCS |
| Packing: |
Poly Bag + Carton Box |
| Standard: |
DIN6796 |
| HS Code: |
7318210001 |
| Production Ability: |
5000000 PCS / Month |
| Loading Port: |
Shanghai Port |
| ODM&OEM: |
Supported |
| Certificate: |
ISO9001:2008 |
| Sample: |
Free |
| Type: |
Lock Washer |
| Material: |
Stainless Steel |
Product Description

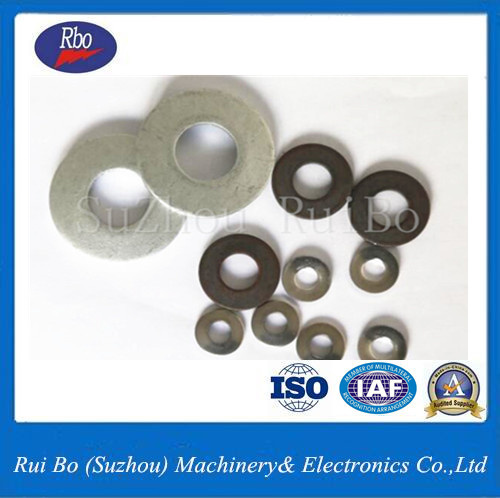

Machinery Parts DIN6796 Conical Lock Washers/Fastener(DIN6796) Description:
DIN6796 Dimension:
DIN6796 |
| Dimensions | D | d | t | H max | H min | Kilo/1000 pcs |
| M2 | 5 | 2.2 | 0.4 | 0.6 | 0.5 | 0.05 |
| M2.5 | 6 | 2.7 | 0.5 | 0.72 | 0.61 | 0.09 |
| M3 | 7 | 3.2 | 0.6 | 0.85 | 0.72 | 0.14 |
| M3.5 | 8 | 3.7 | 0.8 | 1.06 | 0.92 | 0.25 |
| M4 | 9 | 4.3 | 1 | 1.3 | 1.12 | 0.38 |
| M5 | 11 | 5.3 | 1.2 | 1.55 | 1.35 | 0.68 |
| M6 | 14 | 6.4 | 1.5 | 2 | 1.7 | 1.42 |
| M7 | 17 | 7.4 | 1.75 | 2.3 | 2 | 2.51 |
| M8 | 18 | 8.4 | 2 | 2.6 | 2.24 | 3.1 |
| M10 | 23 | 10.5 | 2.5 | 3.2 | 2.8 | 5.13 |
| M12 | 29 | 13 | 3 | 3.95 | 3.43 | 12.35 |
| M14 | 35 | 15 | 3.5 | 4.65 | 4.14 | 21.44 |
| M16 | 39 | 17 | 4 | 5.25 | 4.58 | 30.19 |
| M18 | 42 | 19 | 4.5 | 5.8 | 5.08 | 38.68 |
| M20 | 45 | 21 | 5 | 6.4 | 5.6 | 48.52 |
| M22 | 49 | 23 | 5.5 | 7.05 | 6.15 | 63.07 |
| M24 | 56 | 25 | 6 | 7.75 | 6.77 | 92.3 |
| M27 | 60 | 28 | 6.5 | 8.35 | 7.3 | 112.13 |
| M30 | 70 | 31 | 7 | 9.2 | 8 | 168.92 |
| M33 | 76 | 34 | 7.5 | 10 | 8.5 | 213.52 |
| M36 | 83 | 37.2 | 8 | 10.5 | 9.2 | 271.39 |
| M42 | 96 | 43.5 | 8.5 | 12 | 10.5 | 383.61 |
| M48 | 110 | 49.5 | 9 | 12.5 | 11 | 535.18 |
| M56 | 128 | 58 | 9.5 | 13.5 | 12 | 762.21 |
| M64 | 136 | 66 | 10 | 14 | 12.8 | 871.34 |
| M72 | 145 | 74 | 10.5 | 15 | 13 | 1006.08 |
| M90 | 160 | 92.5 | 11 | 16 | 14 | 1155.31 |
| M100 | 180 | 102.5 | 11.5 | 17 | 15 | 1551.52 |
| M125 | 220 | 128 | 12 | 19 | 16.5 | 2367.49 |
Features of Machinery Parts DIN6796 Conical Lock Washers/Fastener(DIN6796):
1. Certifications: ISO, TUV
2. Available Standard: DIN, ISO, ANSI, JIS, BS, UNI,NFE
3. Available Material: Carbon Steel, Stainless Steel
4. Size:M2-M125
5. Surface Treatments:Dacromet,Plated Zinc,Black Finishing
6. Production Ability: 5000000 pcs / Month
7. MOQ:500pcs
8. Port:Shanghai
9. Packaging:Carton Box or Customized As Per Clients' Requirement
10. Payment Term: L/C, T/T, D/P, Western Union, Paypal, Money Gram, Others
What can you get from the Washer ?
1. Efficient Leading Time: 3-20 working days for the stocked size or based on the specific order quantities.
2. Samples can be free for the standard size within 7 days with available.
3. Certifications & MTC report can be shown together with the Samples&Mass production.
4. Right quality with the reasonable offer, OEM &ODM designs are acceptable.
5. We are fighting for NO.1 in industry.
About us
Established in 2005, Suzhou Ruibo Machinery and Electronics Co. Ltd has always been focusing on the advanced market. We manufacture different types of anti-loose washers and stamping pieces and committed to providing professional and personalized services to customers by integration of R&D, design, manufacturing and sales.

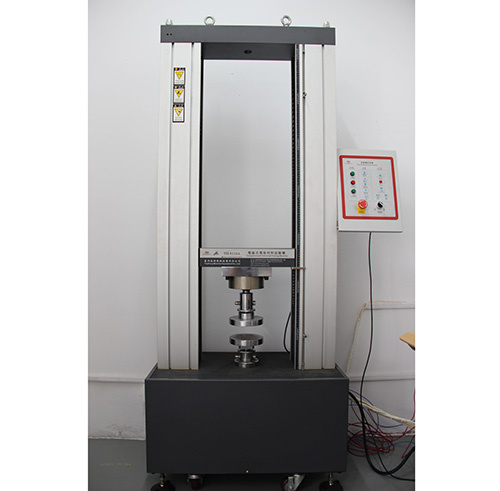

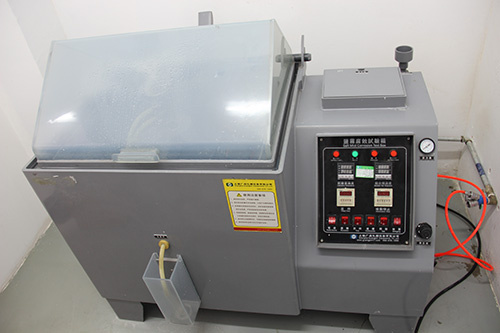

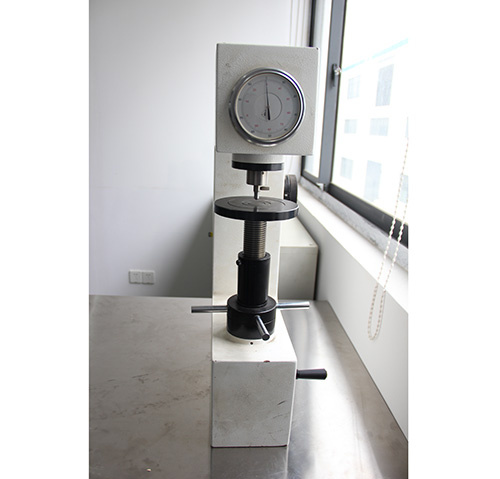

We set up automatic production lines and execute strict process control, which ensures the products with high quality. There are also professional inspection equipment such as computerized tensile testing machine, salt mist test instrument and hardness tester, ensuring the dimension and performance of the products to meet the standards. Our high quality products are used in the industry of railways, mechanical equipment, elevators, motors, automobiles, wind power, photovoltaic and etc. Besides the domestic markets, our products are well received by the overseas customers in Americas, South East Asia and Middle East.
We produce different types of anti-loose washers strictly according to the standards and requirements e.g. Chinese Standards, German Standard, American Standard and International standard. We also customize the stamping pieces according to the samples or drawings provided by customers.
The raw materials we use are mainly cold rolled belts and boards of 65Mn, Spring Steel SK5 / SK7, Stainless Steel SUS304 / 316. Through stamping by high-precision moulds and heat treatment, our products have excellent mechanical performance. We provide different surface treatments: friendly environmental blue white zinc plated, color zinc plated, mechanically deposited zinc coating, powder zinc coating, dacromet, geomet and black finishing, which satisfy the market needs.
We started to use ERP system in 2008 to manage our logistic chain and received ISO9001:2008 quality system certificate. We promise to provide customers with reliable and high quality products and quick response services to assist our customers to improve the competitiveness in the markets.
For the fast results, when requesting a quote:
1.Please email to us as much information as possible,it will be helpful for us to quote accurate price.
2.Please include quantities required, material requirements,dimension,surface treatments,any special
needs or details, packing details and shipping requirements, lead time requirements, quotation time ... etc.
3.We will acknowledge receiving your quote request ASAP, via fax or email.Testing Equipments:
Suzhou Ruibo Machinery & Electronics Co., Ltd.
Established in 2005, Suzhou Ruibo Machinery and Electronics Co. Ltd has always been focusing on the advanced market. We manufacture different types of anti-loose washers and stamping pieces and committed to providing professional and personalized services to customers by integration of R&D, design, manufacturing and sales.
We set up automatic production lines and execute strict process control, which ensures the products with high quality. There are also professional inspection equipment such as computerized tensile testing machine, salt mist test instrument and hardness tester, ensuring the dimension and performance of the products to meet the standards. Our high quality products are used in the industry of railways, mechanical equipment, elevators, motors, automobiles, wind power, photovoltaic and etc. Besides the domestic markets, our products are well received by the overseas customers in Americas, South East Asia and Middle East.
We produce different types of anti-loose washers strictly according to the standards and requirements e. g. Chinese Standards, German Standard, American Standard and International standard. We also customize the stamping pieces according to the samples or drawings provided by customers.
The raw materials we use are mainly cold rolled belts and boards of 65Mn, Spring Steel SK5 / SK7, Stainless Steel SUS304 / 316. Through stamping by high-precision moulds and heat treatment, our products have excellent mechanical performance. We provide different surface treatments: Friendly environmental blue white zinc plated, color zinc plated, mechanically deposited zinc coating, powder zinc coating, dacromet, geomet and black finishing, which satisfy the market needs.
We started to use ERP system in 2008 to manage our logistic chain and received ISO9001: 2008 quality system certificate. We promise to provide customers with reliable and high quality products and quick response services to assist our customers to improve the competitiveness in the markets.
