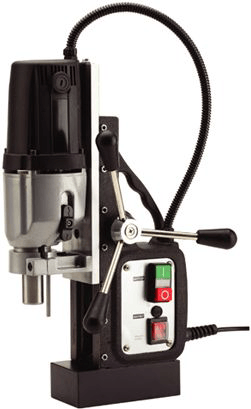

Magnetic Broach Drill Hgtyp-50 2.5-23mm

Prod Model:	HGTYP-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
No Load Speed:	260/560rpm
Taps:	M24
Electric Data:	230V/50Hz/1450W, 120V/60Hz/1450W
Magnetic Adhesion:	13000n
Core Size:	170 *90*60mm
Stroke:	210mm
Net Weight:	22kg
Gross Weight:	30kg
Package Size:	53X39X17cm
Spindle:	Mt2

Product Description

Article:Magnetic Drill
Magnetic drill also called Magnetic broach drill or Magnetic drill press. Its performance Principle is the Magnetic base adhesive onto the surface of working metal.Then press the working handle downwards and drill through the heaviest beams and steel plating. The magnetic base adhesive power controlled by electric coil that Electromagnetic.Using annular cutters, these drills can punch up to 1-1/2" diameter holes in steel up to 2" thick. They are built with durability and heavy use in mind and feature powerful motors and strong magnetic bases.
Magnetic drill Usage:
Magnetic drills is a new type of drilling tools, which construction and design very precision and uniform .Very potable and universal drilling machine for its light duty. Magnetic base made it very convenient on working Horizontally(water level), vertically, upwards or in high point. Magnetic drills is an ideal machine in steel contruction, industrial construction,engineering,equipment reparation, railways, bridges, ship building, crane, metal working, boilers, machinery manufacturing, environmental protection, oil and gas pipline industries.
Performance: Before switch on the magnetic base,there is electronic protection switch.The protection switch avoid any mistake or unintentionally handl and to assure it safe. If its magnetic base loss power for outwards effection,the machine shall safety cut off .
MANUFACTURING features:
Aluminium frame formed and manufactured by CNC Machine.
Stable and high quality motor.
Two-Speed variable,Non-Speed available.
DIN, ANSI, BS STANDARD.
CE, TUV, EMC,CCC Certificated.
