| Prod Model: |
GY-1390T |
| Model: |
Gy-1390t |
| Working Area: |
1300mm*900mm |
| Positioning Accuracy: |
0.01mm |
| Cutting Accuracy: |
0.03mm |
| Cutting Thickness: |
6mm 18mm |
| Machine Voltage: |
220V,50Hz |
| Machine Dimension: |
1860mm*1350mm*1080mm |
| Machine Weight: |
230kg |
| Cooling Type: |
Water Cooling |
Product Description

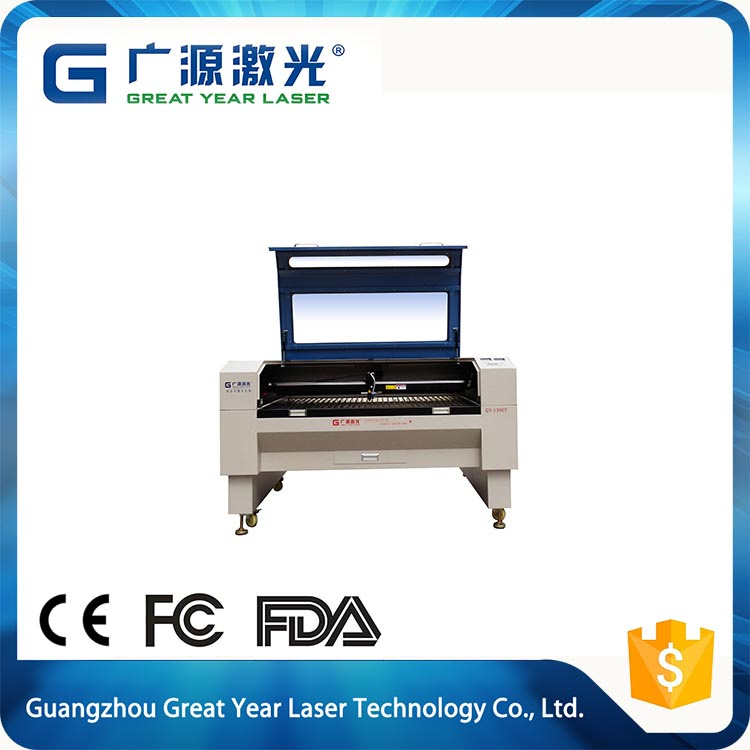

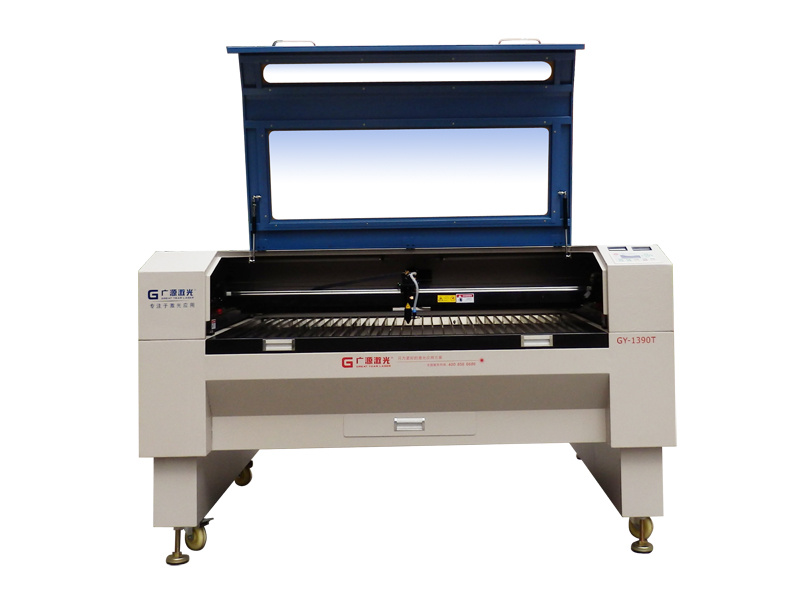

manual paper laser cutter machine
1) Specially for cutting 1300*900mm, thickness 6mm, 15mm, 18mm wood etc, Easy adjustable!
2) Special focus system easy adjust the focus length, inside with American Focus lens.
3) 180W powerful laser tube, easy cutting and maintaince.
4) Precise and Stable runing---Janpan PANASONIC servo motor and driver, Ball screw rail transmission
5) Human friendly software, English version operations, support multiple file formats supporting
Applicable materials:
MDF, Acrylic etc.
Applicable industry:
It is widely use in Corrugated Die Cutting industry, printing dies, pakages dies, advertising signs,etc.
Technical index:
| Model | GY-1390T |
| Laser Power | 180w, |
| Gas of Laser | Co2 |
| Working Area | 1300*900mm |
| Positioning Accuracy | 0.01mm |
| Cutting Accuracy | 0.03mm |
| Transmitting system | 3 axis Ball screw rail PANASONIC servo |
| Cutting Thickness | 6MM 15MM 18MM |
| Support Software | AUTOCAD, CORELDRAW |
| Support Format | PLT, DXF, DSF, AI |
| Machine Voltage | 220V±10% 50HZ, Gross Power: 10KW |
| Working Temperature | 0ºC-45ºC (No Condensation) |
| Working Humidity | 5-95% |
| Cooling way of Laser | Water Cooling |
| Machine Weight 215Kg | 230Kg |
| Demension | Machine: 1860*1350*1080 Mm |
| water chiller: 70*55*90cm |

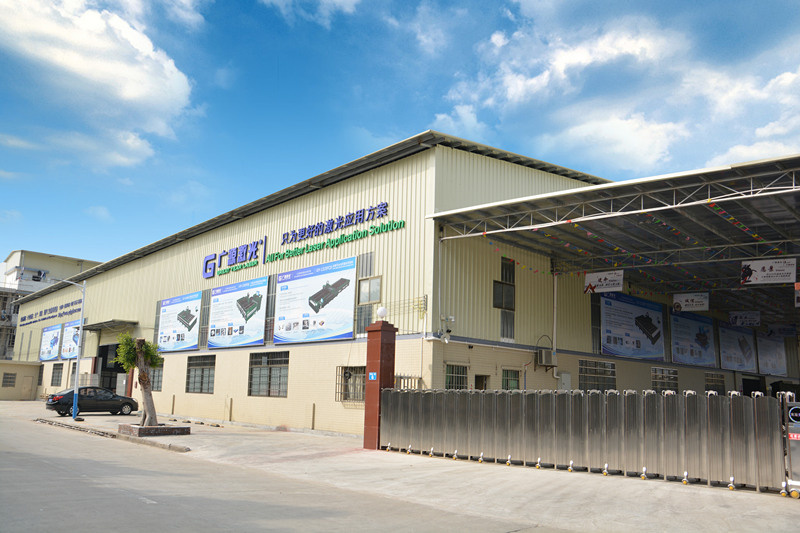

Guangzhou Great Year Laser Technology Co., Ltd (hereafter referred to as GYC laser) is a high-tech enterprise in Guangdong province, which specializes in R&D, manufacturing, sales and maintenance of industrial equipment and precision machinery. The main products include fiber laser cutting machine, laser die cutting machine and CO2 laser cutting and engraving machine, which are special for processing metal materials, kitchen electrical appliances, light fixtures, auto parts, advertising signs, printing and packaging products, leather and textile, clothes accessories, etc.
Set up in November 2009, GYC laser focus on the innovation of the laser application solutions. The enterprise mission, to create the largest benefit for customers, encourages the staff to keep pursuing for breakthroughs. The speedy development of GYC laser depends on a professional research and development team which aims to fulfill the requirements of different customers, and an efficient service team which offers rapid response such as remote supporting, regular maintenance and spot training to assist our customers operating the machines better. Different models of our laser equipment have been sold to 65 countries and regions by December 2016, including the USA, Germany, Italy, Turkey, Mexico, Colombia, Peru, Thailand, Vietnam, Philippines, India, Iran, Egypt, Algeria, and got high appreciation from our customers in different industries.
We believe that there will be better and better in our laser technology career. Only continuous innovation and better quality can make our career flourishing. All staff of GYC laser will keep our mission in mind, which is striving for a global reputation for China's laser technology!
