| Prod Model: |
BSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Bsp |
| Color: |
Siliver Golden |
| Compound: |
NBR, EPDM, HNBR |
| Metal: |
Galvanization |
| Material: |
VITON |
| Shape: |
Triangle Ring |
| Standard: |
Standard |
Product Description
Manufacturer Unique Type Bonded Seal for machinery
we have clients Cummins,Emerson,Neway,Linde,etc,and our products are applied in automobile,
chemical,electrical industry and electronics,hydraulics and pneumatics,machine builders,petrol and
allied industry,power industry, incl nuclear,off shore,solar,oil and gas ,etc

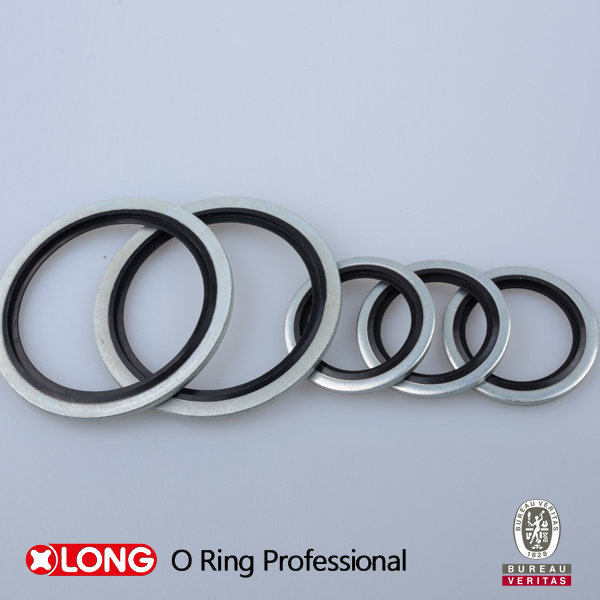

BONDED SEAL was originally designed to withstand high pressures, and it
Is being substituted for copper type washers in higher pressure system. The XLONG Bonded
Seal comprises a metal washer and an elastomeric ring bonded inside the diameter. The metal
Washer prevents over-compression and limits deformation of the elastomeric ring; The elastomer
Prevents lubricant leakage internally and avoids water or the pollutant invasion from outside
Environment.
Advantages of XLONG Bonded Seal
Provides efficient cost to solve the sealing of bolt/thread
Can be used in various applications, i. E.: Threaded bolt, studs and clearance holes
Available in different temperature ranges
Reliable to suit for high and low-pressure sealing
Metal washer prevents the elastomer from over compression and deformation
Available to suit for all thread sizes
Easy to assemble
Available to self-centralizing
Ability to pre-assemble

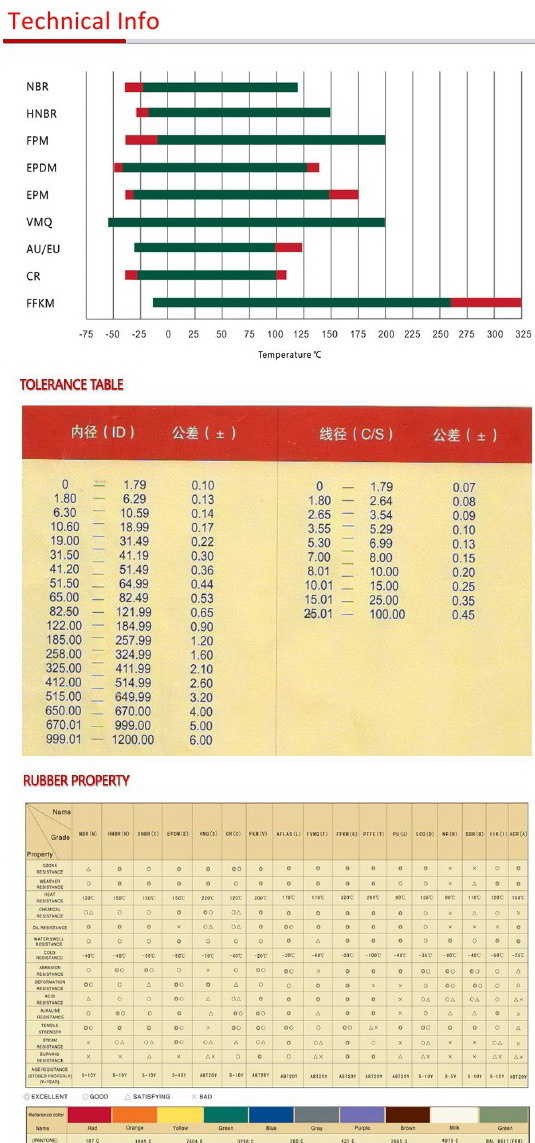

| Materials |
Materials &
Temperature Ranges | Fluid Examples |
| Suitable With | Not Suitable With |
Nitrile (NBR)
-40ºC to 120ºC
-40ºF to 248ºF | Petroleum Oils
Hydraulic Oils
Water | Brake Fluids
Ketones
Phosphate Esters
Strong Acids (H2S) |
Hydrogenated Nitrile (HNBR)
-40ºC to 150ºC
-40ºF to 302ºF | Petroleum Oils
H2S (10%)
Water | Polar Solvents
Brake Fluids
Strong Acids |
Ethylene Propylene(EPDM)
-50ºC to 150ºC
-58ºF to 302ºF | Brake Fluids
Water/ Hot Water
Steam | Mineral Oils
Ozone at High Temperatures |
Fluoroelastomer (FKM)
-20ºC to 200ºC
-4ºF to 392ºF | Petroleum Oils
Silicone Oils
Gasoline | Brake Fluids
Ammonia Gas
Steam |
Perfluoroelastomer (FFKM)
-20ºC to 320ºC
-4ºF to 608ºF | Most Media | Liquid Sodium & Potassium
Fluorinated Solvents &
Refrigerants |
Silicone (VMQ)
-70ºC to 220ºC
-94ºF to 428ºF | Vegetable Oil
Water
Ozone | Acids &Alkalis
Hot Water & Steam (>120ºC) |
Neoprene (CR)
-40ºC to 120ºC
-40ºF to 248ºF | Ammonia
Refrigerants
Ozone | Aromatic Hydrocarbons
Polar Solvents
|
PTFE
-200ºC to 280ºC
-148ºF to 536ºF | Most Media | Fluorine
Molten Alkali Metals
Strong Oxidizing Agents |
Polyurethane (PU)
-40ºC to 90ºC
-40ºF to 194ºF | Most Petroleum Oils | Brake Fluids
Hot Water
Steam |
PEEK
-70ºC to 260ºC
-94ºF to 500ºF | Most Media | Hydrochloric, Nitric &
Sulfuric Acids |
Xiamen Xlong Seal Co., Ltd. is an experienced rubber O ring producer in China. The rubber seal products include O-ring, X-ring, back up ring, E D-ring, V-ring, gasket, bonded seal and customized rubber seal, etc. The sizes cover AS 568, JIS, BS1516, DIN and Metric. We have in -house tooling workshop for the customized size to absorb the development costs and would assist with design & technical difficulties in high efficiency and quality.
The rubber compound covers the NBR, FKM/Viton, Silicone, HNBR, EPDM, Aflas, FFKM and others, which is original from 3 M, DuPont, Bayer and Dow Corning and the other world brand suppliers, the material has strict batch traceability in ERP system. The rubber property is tested by the advanced equipments in our own laboratory to secure the vary application with about 1200 kinds of solution.
We have about 300 employees and stick to meet the American and European quality standard. TS16949 RoHS, Reach and NORSOK M710 certifications guarantee. With long term customer relationship in mind, we always keep the consistently high standards in services and quality products to ensure complete satisfaction. Our business reaches the U S A, Canada, European, Asia and the other corner in the world. Our products are applied in automobile, chemical, electrical industry and electronics, hydraulics and pneumatics, machine builders, petrol and allied industry, power industry, incl nuclear, off shore, solar, oil and gas, etc
More than 35000 sizes without tooling charge and Mini MOQ requirement in the lead time of 5~25 days for o ring are our characteristic services. The true value you will find inside our company is the team of people that work to serve you. Biblically based principles such as Integrity, Ethics, Honesty and a caring attitude have made us a company you can trust and enjoy working with. You are appreciated to do the business with us. Choose Xlong, choose the reliable quality.
