| Prod Model: |
HQ400-600-700 |
| Table Size(L*W): |
3200*2000 mm |
| Max.Cut Thick: |
110mm/180mm/230mm |
| Table Tilting: |
0-85 Degree Easy for Materials Loading |
| Table Rotation (Hq400-Hq600): |
0-90 Degree (0-360 Degree Optional) |
| Table Rotation (Hq700): |
0-360 Degree Stop at Any Position |
| Blade Tilting (Hq700): |
0-45 Degree for Miter Cut |
| Power Of Spindle Motor: |
15kw/15kw/18.5kw |
| Type: |
Laser Cutting Machine |
| Usage: |
Quartz Sandstone |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

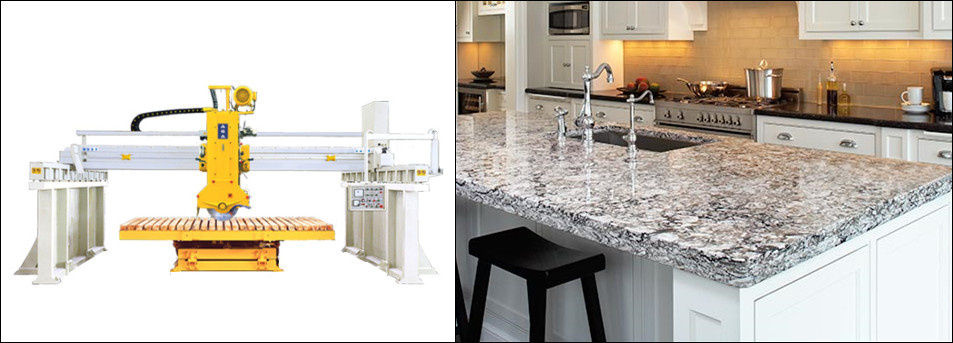

Automatic Bridge Saw for Marble Granite Slabs&Tiles&Kitchen Tops
Bridge saw HQ400/HQ600/HQ700 is made with USA standard, using the advanced technology for marble granite fabricators to cut and fabricate slabs&tiles&counter tops&vanity tops for customers' kitchens.Machine working video to see how it works:
HQ400-HQ600 working video on http://youtu.be/9HcXYJilfO0
HQ700 working video on http://youtu.be/MciWoGjgob0
Machine specs:
| Model | HQ700 | HQ600 | HQ400 |
| Blade tilting 45° (Angle Cut Mitered) | Yes | N/A | N/A |
| Table Rotation 90° | Yes | Yes | Yes |
Table Rotation 0-360°
(stopping at each 45°) | Yes | Optional | Optional |
| Table tilting 0 - 85° | Yes | Yes | Yes |
| Power Of Spindle Motor | 18.5kw / 25 HP | 18.5kw / 25 HP | 15kw / 20 HP |
| Max Length of Cutting: (Table Size) | 3200 x 2000mm / 126"x78" | 3200 x 2000mm / 126"x78" | 3200 x 2000mm / 126"x78" |
| Max Thick of Cutting: | 230 mm 9" | 180 mm 7" | 110 mm 4" |
| Steel Walls Included | Yes | Optional | Optional |

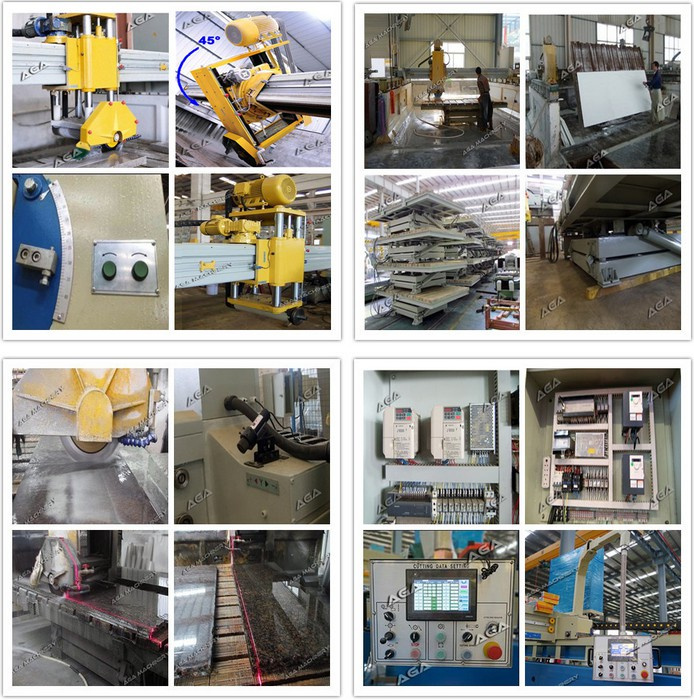

Bridge saw features
1. Table tilting and rotation: Bridge saw table tilts 0-85 degree hydrauliclly for easy load of stone materials. It can rotate 0-90 degree or 0-360 degree stopped any positon for square cuts.

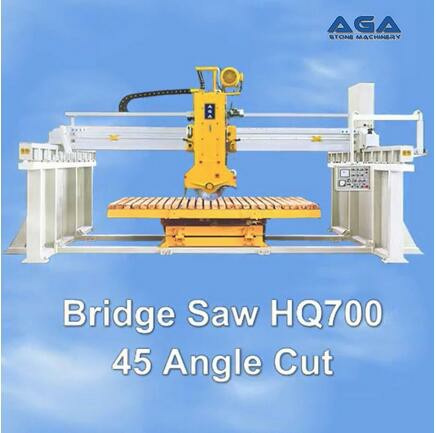

2. Blade tilting for miter cut:
The blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. Blade tilting 0-45 degree automaticlly for miter cut is for model HQ700.
3. Color touch screen and laser guide:
Our bridge saw is made with PLC system, electric system is simple and easy to operate. Color touch screen provides live datas and all functions are operated on the control panel which makes its users very friendly. Laser guide makes precision cutting within +/-0.2mm.
Related Bridge Saws with 45 degree cutting:
Other Information:1) Payment:
The first payment of deposit for order, we start to produce the machine→the second payment, we start the container load and effect the shipment→ the last payment of balance, we send you the scan copy of B/L by email.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean transport depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

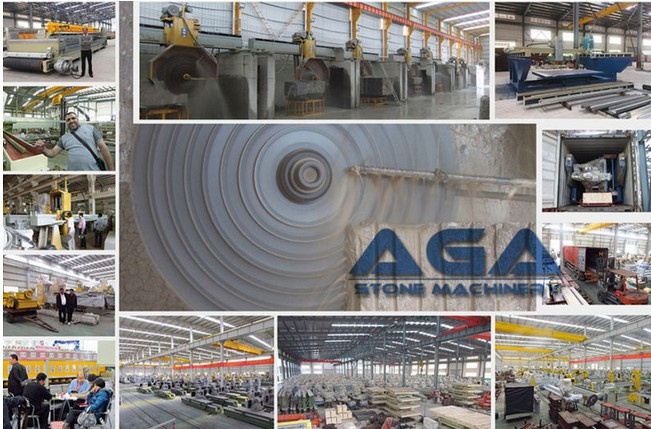

AGA Machinery:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
More machines can be checked on
http://www.marblegranitemachine.com/en.html
Key words:
Stone bridge saw, stone cutting mahcine, bridge saw, granite cutting machine, stone bridge cutter, bridge cutter machine, etc.
