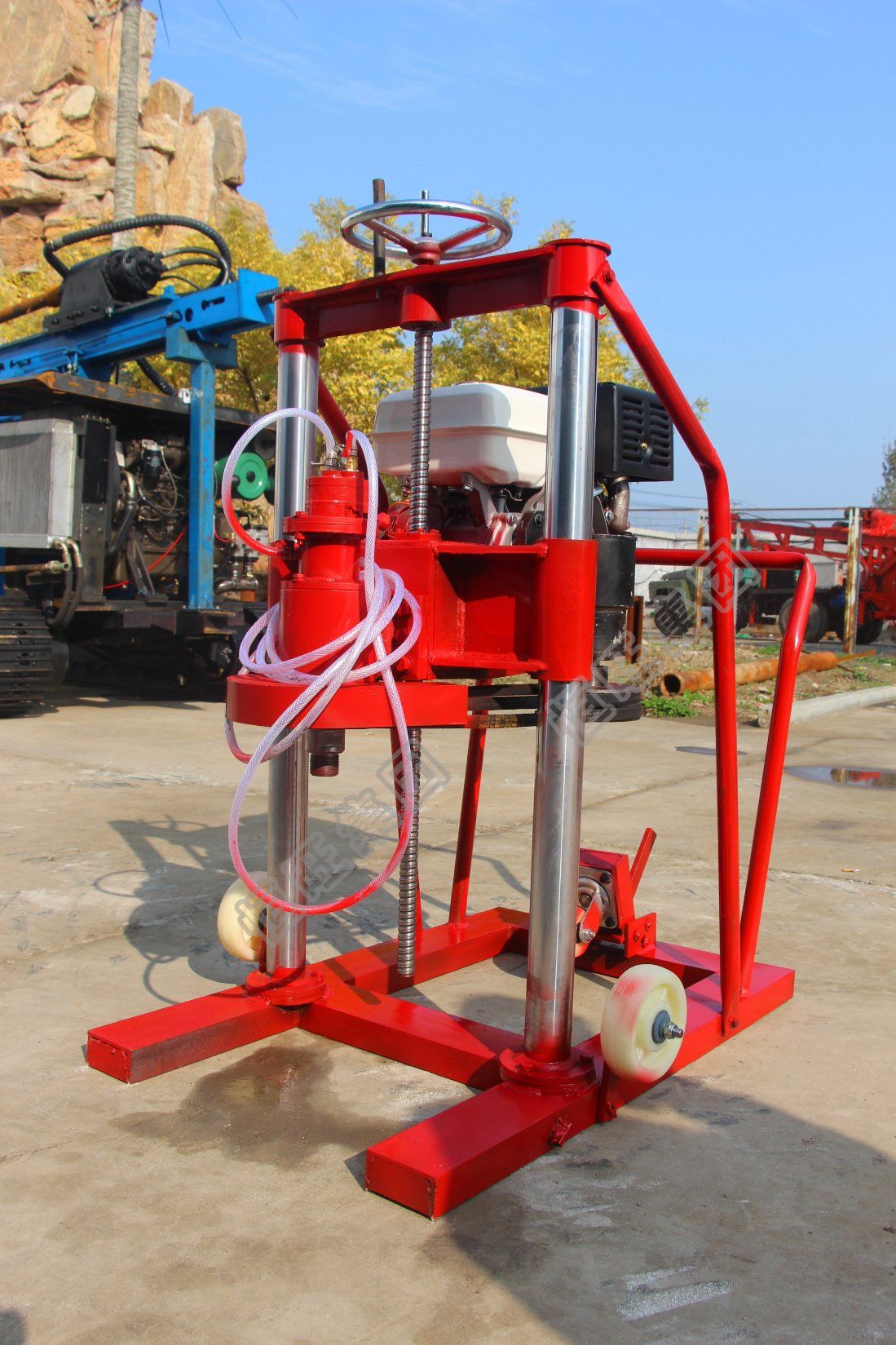

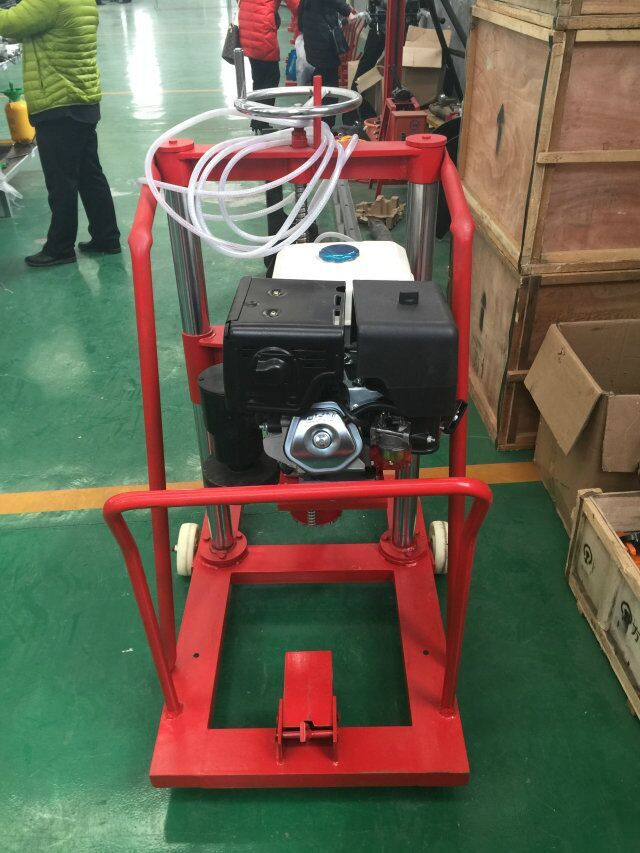

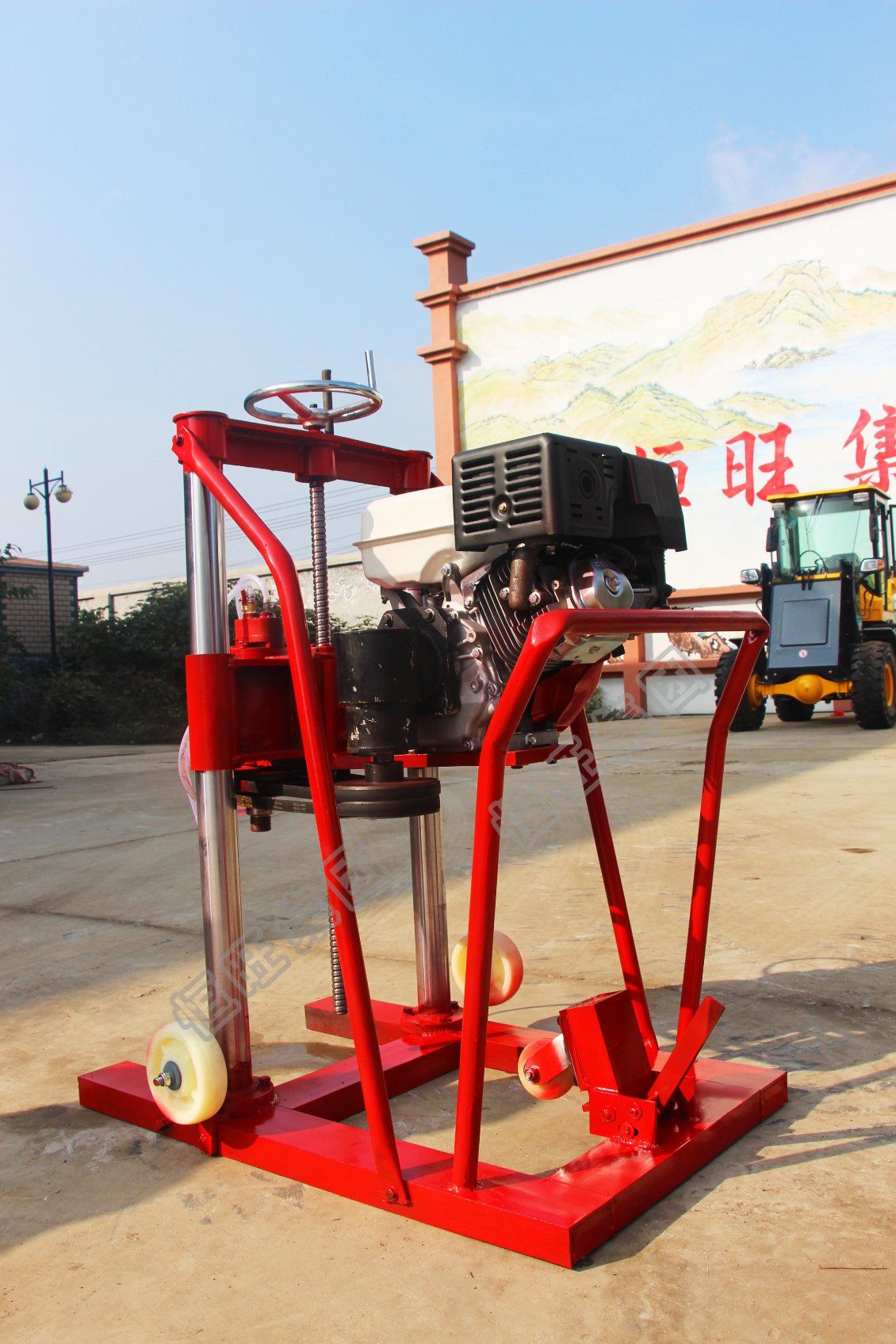

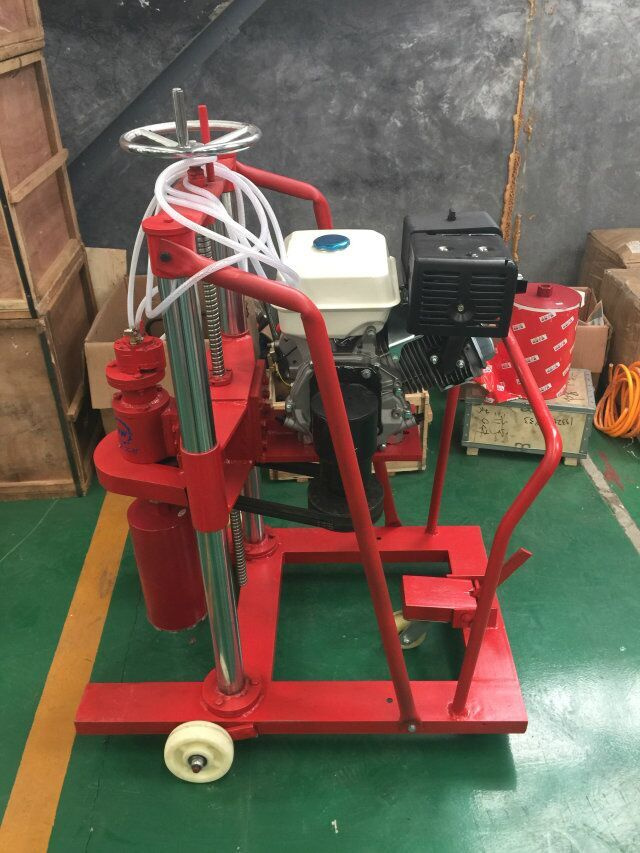

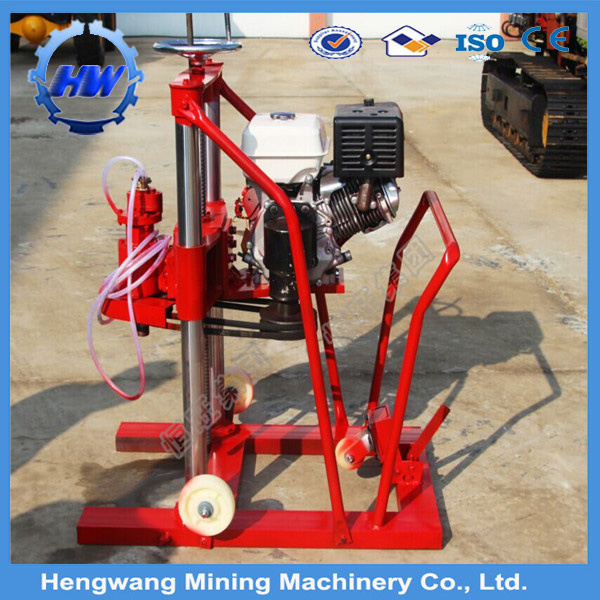

Max 200mm Diameter Gasoline Diamond Asphalt Road Core Drilling Machine

Max 200mm Diameter Gasoline Diamond Asphalt Road Core Drilling Machine
Price: US $ 950-1150/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: HW
Item No: Zdy650
Drilling Depth M: 150
Diameter Of Beginning Hole Mm: 65, 85, 115
Diameter Of Final Hole Mm: 65, 75
Type Of Drill Pipe Mm: 42.50
Angle Of Drill O: 0~90
Drilling Azimuth O: 0~360
Feeding Travel Mm: 850
Power Of Motor Kw: 15
Weight Kg: 1200

Product Description

Max 200mm Diameter Gasoline Diamond Asphalt Road Core Drilling Machine
Product Introduction
The drill rig is a multi-function drill rig developed facing drilling grouting hole for hydro-power station. It also can be used for drillng the hole of support, penetration-proof, blasting and treating dangerous rock and hillside.
It is mainly suitable for drilling hard rock with diamond bit and PDC bit, and DTH drilling as well.
Features
Resonable specification, assure more efficiently drilling;
Fully hydraulic drive, top-drive head rotation, feed and hoist are all done by ration pupm and ration motor which composite independent open hydraulic system, it is simple, advance, easy to use and maintain;
The main hydraulic components are from world famous hydraulic manufacturers, two-step filtering, to assure the reliability of the hydraulic system;
Newly-designed structure, three speeds, and can get different speeds through changing oil motor of top-drive head, to satisfy the needing of different drilling technology;
Light weight, easy to move, re-assembly and maintain. Especially suitable for drilling in tunnel an don the frame.





Technology Parameters

NO.

item

unit

ZDY-650

ZDY-750

ZDY-1250

ZDY-2300

1

Drilling depth

m

150

150

200

300

2

Diameter of beginning hole

mm

65,85,115

65,85,115

85,115

94,115,133

3

Diameter of final hole

mm

65,75

65,75

65,75

94

4

Type of drill pipe

mm

42.50

42.50

50

63

5

Angle of drill

º

0~90

0~90

0~90

0~90

6

Drilling azimuth

º

0~360

0~360

0~360

0~360

7

Feeding travel

mm

850

850

850

850

8

Model of motor



YBK2-160L-4

YBK2-180M-4

YBK2-180L-4

YBK2-225S-4

9

Power of motor

kW

15

18.5

22

37

10

Voltage of motor

V

380/660

380/660

380/660

380/660

13

weight

Kg

1200

1400

1600

2200
