| Prod Model: |
MD |
| Cutting Edge Diameter: |
0.1-2.0mm |
| Flute Length: |
1.2-12mm |
| Shank Diameter: |
3mm |
| Overall Length: |
38mm |
Product Description
MD Solid Carbide Micro Drill
Features:- All dimension is fixed by our norm and also accepted non standard order.
- Tolerance of dc 0--0.01; tolerance of ds 0--0.005.
- Point angel 150°;better centering ability because of geometry and flute design

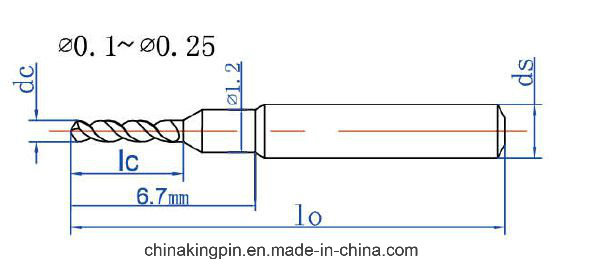

Picture:
Specification: | MD type (coating) | Cutting Edge Diameter | Flute Length | Shank Diameter | Overall Length |
| EA5A2901 | dc | lc | ds | lo |
| EA5A2902 | 0.10 | 1.2 | 3 | 38 |
| EA5A2903 | 0.11 | 1.2 | 3 | 38 |
| EA5A2904 | 0.12 | 1.4 | 3 | 38 |
| EA5A2905 | 0.13 | 1.4 | 3 | 38 |
| EA5A2906 | 0.14 | 1.4 | 3 | 38 |
| EA5A2907 | 0.15 | 2.0 | 3 | 38 |
| EA5A2908 | 0.16 | 2.0 | 3 | 38 |
| EA5A2909 | 0.17 | 2.0 | 3 | 38 |
| EA5A2910 | 0.18 | 2.0 | 3 | 38 |
| EA5A2911 | 0.19 | 2.0 | 3 | 38 |
| EA5A2912 | 0.20 | 2.5 | 3 | 38 |
| EA5A2913 | 0.21 | 2.5 | 3 | 38 |
| EA5A2914 | 0.22 | 2.5 | 3 | 38 |
| EA5A2915 | 0.23 | 2.5 | 3 | 38 |
| EA5A2916 | 0.24 | 2.5 | 3 | 38 |
| EA5A2917 | 0.25 | 3.0 | 3 | 38 |
| EA5A2918 | 0.26 | 3.0 | 3 | 38 |
| EA5A2919 | 0.27 | 3.0 | 3 | 38 |
| EA5A2920 | 0.28 | 3.0 | 3 | 38 |
| EA5A2921 | 0.29 | 3.0 | 3 | 38 |
| EA5A2922 | 0.30 | 5.0 | 3 | 38 |
| EA5A2923 | 0.31 | 5.0 | 3 | 38 |
| EA5A2924 | 0.32 | 5.0 | 3 | 38 |
| EA5A2925 | 0.33 | 5.0 | 3 | 38 |
| EA5A2926 | 0.34 | 5.0 | 3 | 38 |
| EA5A2927 | 0.35 | 6.0 | 3 | 38 |
| EA5A2928 | 0.36 | 6.0 | 3 | 38 |
| EA5A2929 | 0.37 | 6.0 | 3 | 38 |
| EA5A2930 | 0.38 | 6.0 | 3 | 38 |
| EA5A2931 | 0.39 | 6.0 | 3 | 38 |
| EA5A2932 | 0.40 | 7.0 | 3 | 38 |
| EA5A2933 | 0.41 | 7.0 | 3 | 38 |
| EA5A2934 | 0.42 | 7.0 | 3 | 38 |
| EA5A2935 | 0.43 | 7.0 | 3 | 38 |
| EA5A2936 | 0.44 | 7.0 | 3 | 38 |
| EA5A2937 | 0.45 | 7.0 | 3 | 38 |
| EA5A2938 | 0.46 | 7.0 | 3 | 38 |
| EA5A2939 | 0.47 | 7.0 | 3 | 38 |
| EA5A2940 | 0.48 | 7.0 | 3 | 38 |
| EA5A2941 | 0.49 | 7.0 | 3 | 38 |
| EA5A2942 | 0.50 | 7.0 | 3 | 38 |
| EA5A2943 | 7.50 | 7.0 | 3 | 38 |
| EA5A2944 | 0.51 | 7.0 | 3 | 38 |
| EA5A2945 | 0.52 | 7.0 | 3 | 38 |
| EA5A2946 | 0.53 | 7.0 | 3 | 38 |
| EA5A2947 | 0.54 | 7.0 | 3 | 38 |
| EA5A2948 | 0.55 | 7.0 | 3 | 38 |
| EA5A2949 | 0.56 | 7.0 | 3 | 38 |
| EA5A2950 | 0.57 | 7.0 | 3 | 38 |
| EA5A2951 | 0.58 | 7.0 | 3 | 38 |
| EA5A2952 | 0.59 | 7.0 | 3 | 38 |
| EA5A2953 | 0.60 | 7.0 | 3 | 38 |
| EA5A2954 | 0.61 | 7.0 | 3 | 38 |
| EA5A2955 | 0.62 | 7.0 | 3 | 38 |
| EA5A2956 | 0.63 | 7.0 | 3 | 38 |
| EA5A2957 | 0.64 | 7.0 | 3 | 38 |
| EA5A2958 | 0.65 | 7.0 | 3 | 38 |
| EA5A2959 | 0.66 | 7.0 | 3 | 38 |
| EA5A2960 | 0.67 | 7.0 | 3 | 38 |
| EA5A2961 | 0.68 | 7.0 | 3 | 38 |
| EA5A2962 | 0.69 | 7.0 | 3 | 38 |
| EA5A2963 | 0.70 | 8.0 | 3 | 38 |
| EA5A2964 | 0.71 | 8.0 | 3 | 38 |
| EA5A2965 | 0.72 | 8.0 | 3 | 38 |
| EA5A2966 | 0.73 | 8.0 | 3 | 38 |
| EA5A2967 | 0.74 | 8.0 | 3 | 38 |
| EA5A2968 | 0.75 | 8.0 | 3 | 38 |
| EA5A2969 | 0.76 | 8.0 | 3 | 38 |
| EA5A2970 | 0.77 | 8.0 | 3 | 38 |
| EA5A2971 | 0.78 | 8.0 | 3 | 38 |
| EA5A2972 | 0.79 | 8.0 | 3 | 38 |
| EA5A2973 | 0.80 | 10.00 | 3 | 38 |
| EA5A2974 | 0.81 | 10.0 | 3 | 38 |
| EA5A2975 | 0.82 | 10.0 | 3 | 38 |
| EA5A2976 | 0.83 | 10.0 | 3 | 38 |
| EA5A2977 | 0.84 | 10.0 | 3 | 38 |
| EA5A2978 | 0.85 | 10.0 | 3 | 38 |
| EA5A2979 | 0.86 | 10.0 | 3 | 38 |
| EA5A2980 | 0.87 | 10.0 | 3 | 38 |
| EA5A2981 | 0.88 | 10.0 | 3 | 38 |
| EA5A2982 | 0.89 | 10.0 | 3 | 38 |
| EA5A2983 | 0.90 | 10.0 | 3 | 38 |
| EA5A2984 | 0.91 | 10.0 | 3 | 38 |
| EA5A2985 | 0.92 | 10.0 | 3 | 38 |
| EA5A2986 | 0.93 | 10.0 | 3 | 38 |
| EA5A2987 | 0.94 | 10.0 | 3 | 38 |
| EA5A2988 | 0.95 | 10.0 | 3 | 38 |
| EA5A2989 | 0.96 | 10.0 | 3 | 38 |
| EA5A2990 | 0.97 | 10.0 | 3 | 38 |
| EA5A2991 | 0.98 | 10.0 | 3 | 38 |
| EA5A2992 | 0.99 | 10.0 | 3 | 38 |
| EA5A2993 | 1.00 | 10.0 | 3 | 38 |
| EA5A2994 | 1.01 | 10.0 | 3 | 38 |
| EA5A2995 | 1.02 | 10.0 | 3 | 38 |
| EA5A2996 | 1.03 | 10.0 | 3 | 38 |
| EA5A2997 | 1.04 | 10.0 | 3 | 38 |
| EA5A2998 | 1.05 | 10.0 | 3 | 38 |
| EA5A2999 | 1.06 | 10.0 | 3 | 38 |
| EA5A29100 | 1.07 | 10.0 | 3 | 38 |
| EA5A29101 | 1.08 | 10.0 | 3 | 38 |
| EA5A29102 | 1.09 | 10.0 | 3 | 38 |
| EA5A29103 | 1.10 | 10.0 | 3 | 38 |
| EA5A29104 | 1.11 | 10.0 | 3 | 38 |
| EA5A29105 | 1.12 | 10.0 | 3 | 38 |
| EA5A29106 | 1.13 | 10.0 | 3 | 38 |
| EA5A29107 | 1.14 | 10.0 | 3 | 38 |
| EA5A29108 | 1.15 | 10.0 | 3 | 38 |
| EA5A29109 | 1.16 | 10.0 | 3 | 38 |
| EA5A29110 | 1.17 | 10.0 | 3 | 38 |
| EA5A29111 | 1.18 | 10.0 | 3 | 38 |
| EA5A29112 | 1.19 | 10.0 | 3 | 38 |
| EA5A29113 | 1.20 | 10.0 | 3 | 38 |
| EA5A29114 | 1.21 | 10.0 | 3 | 38 |
| EA5A29115 | 1.22 | 10.0 | 3 | 38 |
| EA5A29116 | 1.23 | 10.0 | 3 | 38 |
| EA5A29117 | 1.24 | 10.0 | 3 | 38 |
| EA5A29118 | 1.25 | 10.0 | 3 | 38 |
| EA5A29119 | 1.26 | 10.0 | 3 | 38 |
| EA5A29120 | 1.27 | 10.0 | 3 | 38 |
| EA5A29121 | 1.28 | 10.0 | 3 | 38 |
| EA5A29122 | 1.29 | 10.0 | 3 | 38 |
| EA5A29123 | 1.3 | 10.0 | 3 | 38 |
| EA5A29124 | 1.31 | 10.0 | 3 | 38 |
| EA5A29125 | 1.32 | 10.0 | 3 | 38 |
| EA5A29126 | 1.33 | 10.0 | 3 | 38 |
| EA5A29127 | 1.34 | 10.0 | 3 | 38 |
| EA5A29128 | 1.35 | 10.0 | 3 | 38 |
| EA5A29129 | 1.36 | 10.0 | 3 | 38 |
| EA5A29130 | 1.37 | 10.0 | 3 | 38 |
| EA5A29131 | 1.38 | 10.0 | 3 | 38 |
| EA5A29132 | 1.39 | 10.0 | 3 | 38 |
| EA5A29133 | 1.4 | 10.0 | 3 | 38 |
| EA5A29134 | 1.41 | 10.0 | 3 | 38 |
| EA5A29135 | 1.42 | 10.0 | 3 | 38 |
| EA5A29136 | 1.43 | 10.0 | 3 | 38 |
| EA5A29137 | 4.44 | 10.0 | 3 | 38 |
| EA5A29138 | 1.45 | 10.0 | 3 | 38 |
| EA5A29139 | 1.46 | 10.0 | 3 | 38 |
| EA5A29140 | 1.47 | 10.0 | 3 | 38 |
| EA5A29141 | 1.48 | 10.0 | 3 | 38 |
| EA5A29142 | 1.49 | 10.0 | 3 | 38 |
| EA5A29143 | 1.5 | 10.0 | 3 | 38 |
| EA5A29144 | 1.51 | 10.0 | 3 | 38 |
| EA5A29145 | 1.52 | 10.0 | 3 | 38 |
| EA5A29146 | 1.53 | 10.0 | 3 | 38 |
| EA5A29147 | 1.54 | 10.0 | 3 | 38 |
| EA5A29148 | 1.55 | 10.0 | 3 | 38 |
| EA5A29149 | 1.56 | 10.0 | 3 | 38 |
| EA5A29150 | 1.57 | 10.0 | 3 | 38 |
| EA5A29150 | 1.58 | 10.0 | 3 | 38 |
| EA5A29151 | 1.59 | 10.0 | 3 | 38 |
| EA5A29152 | 1.6 | 12.0 | 3 | 38 |
| EA5A29153 | 1.61 | 12.0 | 3 | 38 |
| EA5A29154 | 1.62 | 12.0 | 3 | 38 |
| EA5A29155 | 1.63 | 12.0 | 3 | 38 |
| EA5A29156 | 1.64 | 12.0 | 3 | 38 |
| EA5A29157 | 1.65 | 12.0 | 3 | 38 |
| EA5A29158 | 1.66 | 12.0 | 3 | 38 |
| EA5A29159 | 1.67 | 12.0 | 3 | 38 |
| EA5A29160 | 1.68 | 12.0 | 3 | 38 |
| EA5A29161 | 1.69 | 12.0 | 3 | 38 |
| EA5A29162 | 1.70 | 12.0 | 3 | 38 |
| EA5A29163 | 1.71 | 12.0 | 3 | 38 |
| EA5A29164 | 1.72 | 12.0 | 3 | 38 |
| EA5A29165 | 1.73 | 12.0 | 3 | 38 |
| EA5A29166 | 1.74 | 12.0 | 3 | 38 |
| EA5A29167 | 1.75 | 12.0 | 3 | 38 |
| EA5A29168 | 1.76 | 12.0 | 3 | 38 |
| EA5A29169 | 1.77 | 12.0 | 3 | 38 |
| EA5A29170 | 1.78 | 12.0 | 3 | 38 |
| EA5A29171 | 1.79 | 12.0 | 3 | 38 |
| EA5A29172 | 1.80 | 12.0 | 3 | 38 |
| EA5A29173 | 1.81 | 12.0 | 3 | 38 |
| EA5A29174 | 1.82 | 12.0 | 3 | 38 |
| EA5A29175 | 1.83 | 12.0 | 3 | 38 |
| EA5A29176 | 1.84 | 12.0 | 3 | 38 |
| EA5A29177 | 1.85 | 12.0 | 3 | 38 |
| EA5A29178 | 1.86 | 12.0 | 3 | 38 |
| EA5A29179 | 1.87 | 12.0 | 3 | 38 |
| EA5A29180 | 1.88 | 12.0 | 3 | 38 |
| EA5A29181 | 1.89 | 12.0 | 3 | 38 |
| EA5A29182 | 1.90 | 12.0 | 3 | 38 |
| EA5A29183 | 1.91 | 12.0 | 3 | 38 |
| EA5A29184 | 1.92 | 12.0 | 3 | 38 |
| EA5A29185 | 1.93 | 12.0 | 3 | 38 |
| EA5A29186 | 1.94 | 12.0 | 3 | 38 |
| EA5A29187 | 1.95 | 12.0 | 3 | 38 |
| EA5A29188 | 1.96 | 12.0 | 3 | 38 |
| EA5A29189 | 1.97 | 12.0 | 3 | 38 |
| EA5A29190 | 1.98 | 12.0 | 3 | 38 |
| EA5A29191 | 1.99 | 12.0 | 3 | 38 |
| EA5A29192 | 2.00 | 12.0 | 3 | 38 |
FAQ:(1) Are you a manufacturer or a trading company?We are a manufacturer , and a trading company too.We sell our own products, at the same time, we also sell other products. (2) Where is the loading port?Qingdao port, or to meet client's requirement. (3) How long is the production lead time?It takes about 30-40 days. But the delivery date is 30-40days after we received your deposit. If we have stock we can delivery the goods to you asap. (4) Do you accept OEM? Sure, we accept and provide OEM production. (5) What's your payment term?T/T (30% of total amount deposit and 70% before shipment), Western Union
