Measuring Tool Mechanical Tube Micrometer
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal |
Prod Model: |
P8066-25A |
Supplied With: |
Standard Rods |
Size: |
Metric/Inch |
Inner Packing: |
Plastic Box |
With: |
Zero Adjusting Wrench |
Usage: |
Wall Thickness of Tubes |
Anvil: |
a Is Standard,Type B,C,D,E,F Are Optional |
Type: |
Universal |
Measure Method: |
Manual |
Material: |
Ratchet Stop, Carbide Tips, Painted and Fine Cast |
Precision: |
0.006mm |
Product Description

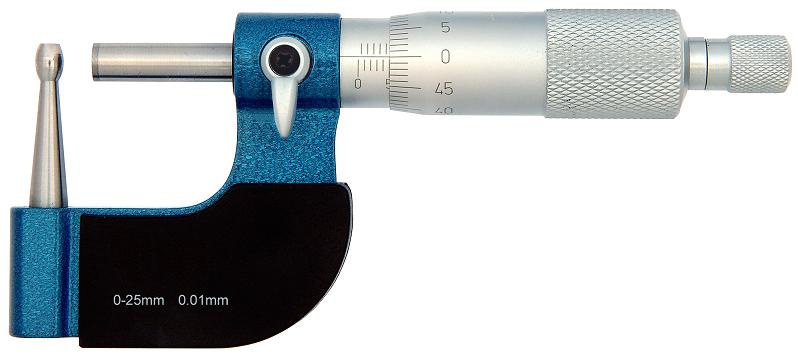

Tube Micrometer
· Graduation: metric 0.01mm / inch 0.0001"
· Ratchet stop, carbide tips, painted and fine cast frame
· For wall thickness of tubes
· Anvil: A is standard,type B,C,D,E,F are optional
· With zero adjusting wrench
· Supplied with standard rods
· Packed in plastic boxMetric | Inch |
Model No.(Anvil type A) | Range | Model No.(Anvil type A) | Range | Accuracy |
P8066-25A | 0-25mm | P8066-1A | 0-1" | 0.006mm |
P8066-50A | 25-50mm | P8066-2A | 1-2" | 0.006mm |
Model No.(Anvil typeB) | Range | Model No.(Anvil type B) | Range | Accuracy |
P8066-25B | 0-25mm | P8066-1B | 0-1" | 0.006mm |
P8066-50B | 25-50mm | P8066-2B | 1-2" | 0.006mm |
Model No.(Anvil type C) | Range | Model No.(Anvil type C) | Range | Accuracy |
P8066-25C | 0-25mm | P8066-1C | 0-1" | 0.006mm |
P8066-50C | 25-50mm | P8066-2C | 1-2" | 0.006mm |
Model No.(Anvil type D) | Range | Model No.(Anvil type D) | Range | Accuracy |
P8066-25D | 0-25mm | P8066-1D | 0-1" | 0.006mm |
P8066-50D | 25-50mm | P8066-2D | 1-2" | 0.006mm |
Model No.(Anvil type E) | Range | Model No.(Anvil type E) | Range | Accuracy |
P8066-25E | 0-25mm | P8066-1E | 0-1" | 0.006mm |
P8066-50E | 25-50mm | P8066-2E | 1-2" | 0.006mm |
Model No.(Anvil type F) | Range | Model No.(Anvil type F) | Range | Accuracy |
P8066-25F | 0-25mm | P8066-1F | 0-1" | 0.006mm |
P8066-50F | 25-50mm | P8066-2F | 1-2" | 0.006mm |
