Prod Model: |
J23 series |
Control Voltage: |
24V |
Type: |
General Punching Machine |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Power Source: |
Pneumatic |
Precision: |
High Precision |
Product Description

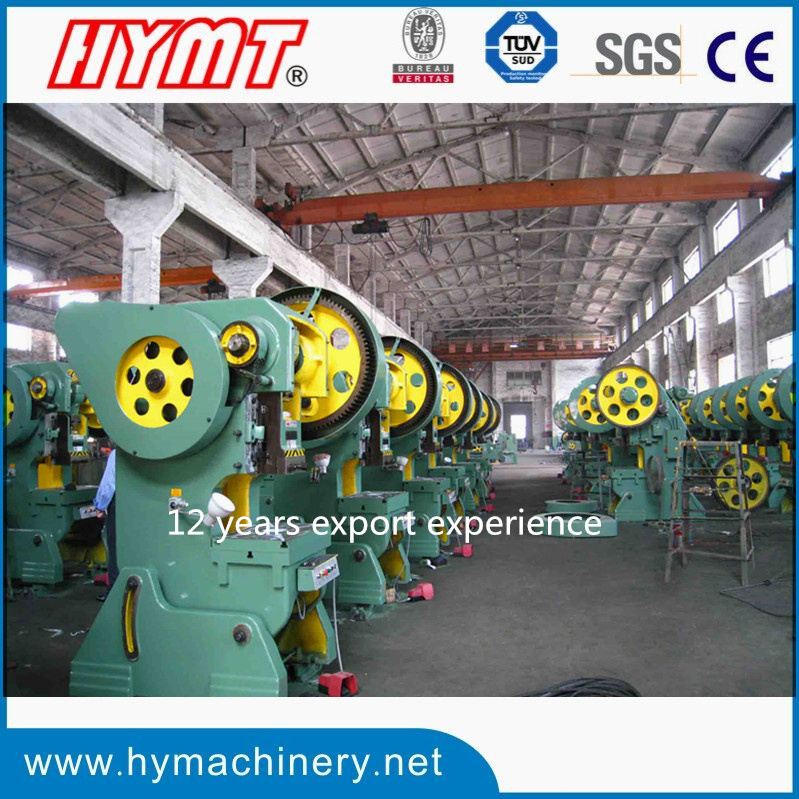

C-Frame Inclinable worktable Mechanical Power Press(J23 series):
1. Cast and Inclinable Frame, To ensure the high rididity and less deformation
2. Turn-Key and rigid clutch, with flexible movement and reliable performance.
3. Crankshaft placed crosswise, V-Type guides to the slide in high accuracy.
4. Emergency brake device, to control the slight stop at any position.
5. Adop double cylinder balanced structure for above 80 Ton
6. Opton with Photoelectic protector, transmission output axle, Feeder, air cushion as per customer's demand.
Parameters | Unit | J23- 6.3 | J23-10 | J23-16 | J23-25 | J23-35 | J23-40 | J23-63 | J23-63 | J23-80 | J23-100 | J23-125 |
Nominal pressure on sliding block | KN | 63 | 100 | 160 | 250 | 350 | 400 | 630 | 630 | 800 | 1000 | 1250 |
Nominal pressure stroke Sp | mm | 2 | 2 | 2 | 2.5 | 3.5 | 6 | 6 | 7 | 7 | 7 | 8 |
Slide stroke | mm | 35 | 45 | 55 | 65 | 80 | 90 | 110 | 110 | 120 | 140 | 150 |
Stroke frequency | Fast speed | times/ min | 170 | 145 | 120 | | | | | | | | |
Low speed | | | | 55 | 50 | 45 | 50 | 40 | 38 | 38 | 35 |
Die height | mm | 150 | 180 | 220 | 270 | 290 | 320 | 360 | 390 | 440 | 480 | 500 |
Die Height Adjustment | mm | 30 | 35 | 45 | 55 | 60 | 65 | 80 | 80 | 90 | 100 | 100 |
Distance between slider center and machine | mm | 110 | 130 | 160 | 200 | 220 | 250 | 260 | 310 | 350 | 380 | 390 |
Vertical columns distance | mm | 150 | 180 | 220 | 270 | 280 | 340 | 350 | 420 | 450 | 560 | 550 |
Slider bottom size | L-R | mm | 140 | 170 | 200 | 250 | 250 | 300 | 300 | 400 | 430 | 540 | 540 |
F-B | mm | 120 | 150 | 180 | 220 | 220 | 220 | 260 | 360 | 360 | 480 | 480 |
Size of handle hole | Diameter | mm | 30 | 30 | 40 | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 60 |
Depth | mm | 55 | 55 | 60 | 60 | 60 | 70 | 70 | 70 | 75 | 75 | 75 |
Size of worktable | L-R | mm | 310 | 370 | 450 | 560 | 610 | 700 | 760 | 860 | 950 | 1080 | 1100 |
F-B | mm | 200 | 240 | 300 | 370 | 400 | 460 | 480 | 570 | 650 | 710 | 720 |
Thickness of worktable | mm | 30 | 35 | 40 | 50 | 60 | 65 | 80 | 80 | 100 | 120 | 130 |
Max. inclination angle | | 45 | 35 | 35 | 30 | 30 | 30 | 30 | 20 | 20 | 15 | 13 |
Worktable height | mm | 750 | 730 | 750 | 800 | 815 | 850 | 810 | 850 | 850 | 850 | 860 |
Size | F-B | mm | 780 | 900 | 1150 | 1345 | 1460 | 1721 | 1810 | 1958 | 2060 | 2254 | 2200 |
L-R | mm | 620 | 665 | 847 | 950 | 1058 | 1335 | 1350 | 1500 | 1715 | 1790 | 1790 |
High | mm | 1503 | 1658 | 1910 | 2130 | 2225 | 2488 | 2740 | 2868 | 3290 | 3625 | 3590 |
Anchor bolts distance | F-B | mm | 530 | 610 | 780 | 920 | 1020 | 1060 | 1180 | 1300 | 1360 | 1550 | 1710 |
L-R | mm | 314 | 394 | 450 | 600 | 650 | 750 | 850 | 920 | 1010 | 1130 | 1110 |
Power of electric motor | KW | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 |
Weight(Approximate) | KG | 420 | 595 | 1095 | 1830 | 2650 | 3600 | 4200 | 5580 | 8020 | 10800 | 12035 |
Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Xi'an Huayue Machinery and Equipment Co., Ltd is a specialized exporter and manufacturer of metal forming machine and machine tools since 2001 year.
Our main products range including hydraulic press brake, shearing machine, rolling machine, hydraulic press machine, power press, lathe machine, milling machine, drilling machine, grinding machine, shaping machine, sawing machine, woodworking machine etc.
We have exported our machines to our clients with high quality, good service and reasonable price. Until now, we have exported our machines more than 30 countries, such as Germany, U. S. A, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia, Brazil, Venezuela, Argentina etc. We have quality control term who will carefully inspect every machine in workshop before packing.
You are Welcome to visit our website and contact us. We will give you quick response upon any of your requirement. Also we will supply our good quality machine completed with reasonable price, hope I have chance to serve you.
