Mechanical Power Press Mechanical Punching Machine

Name: Mechanical Power Press Mechanical Punching Machine
Brand: tool-buy.com
SKU: 800871465
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	US $ 1000-10000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Jinhua Jinteng Rubber and Plastic Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	JHJT
Type:	High-Speed Punching Machine
Controlling Mode:	CNC
Automatic Grade:	Automatic
Power Source:	Hydraulic Pressure
Precision:	High Precision

Product Description

Use: 1. Suitable for various cold stamping process :blanking, punching, molding, bending,
      pulling and stretching etc.
     2. Widely used in electronic components, instruments and meters, vehicles,
       machinery, agricultural machinery ,hardware tools, and other industrial fields.

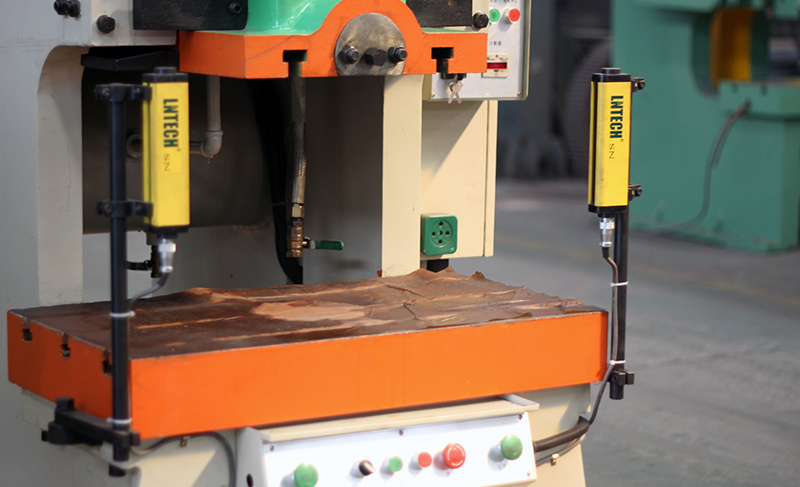

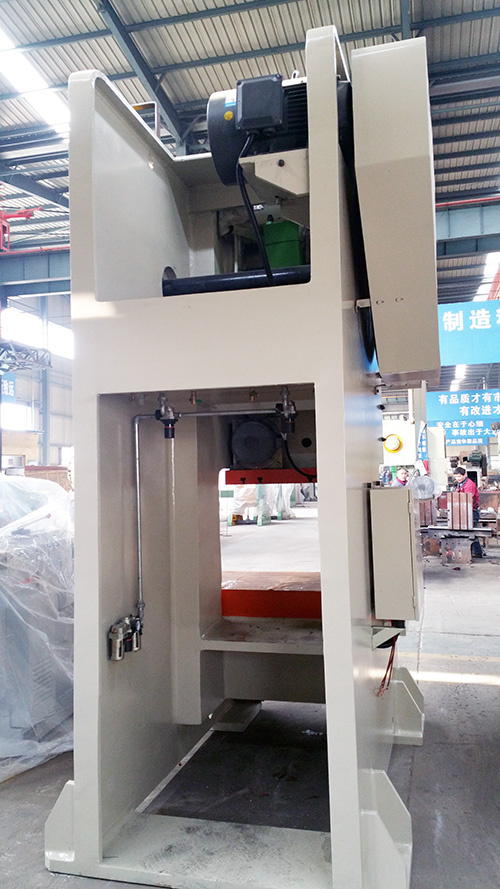

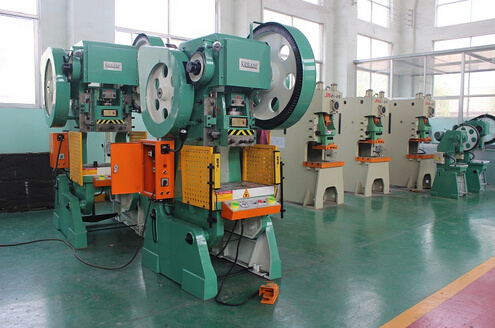

Mechanical Eccentric Power Press Punching Machine Jc21-63ton

Mechanical Eccentric Power Press Punching Machine Jc21-63ton

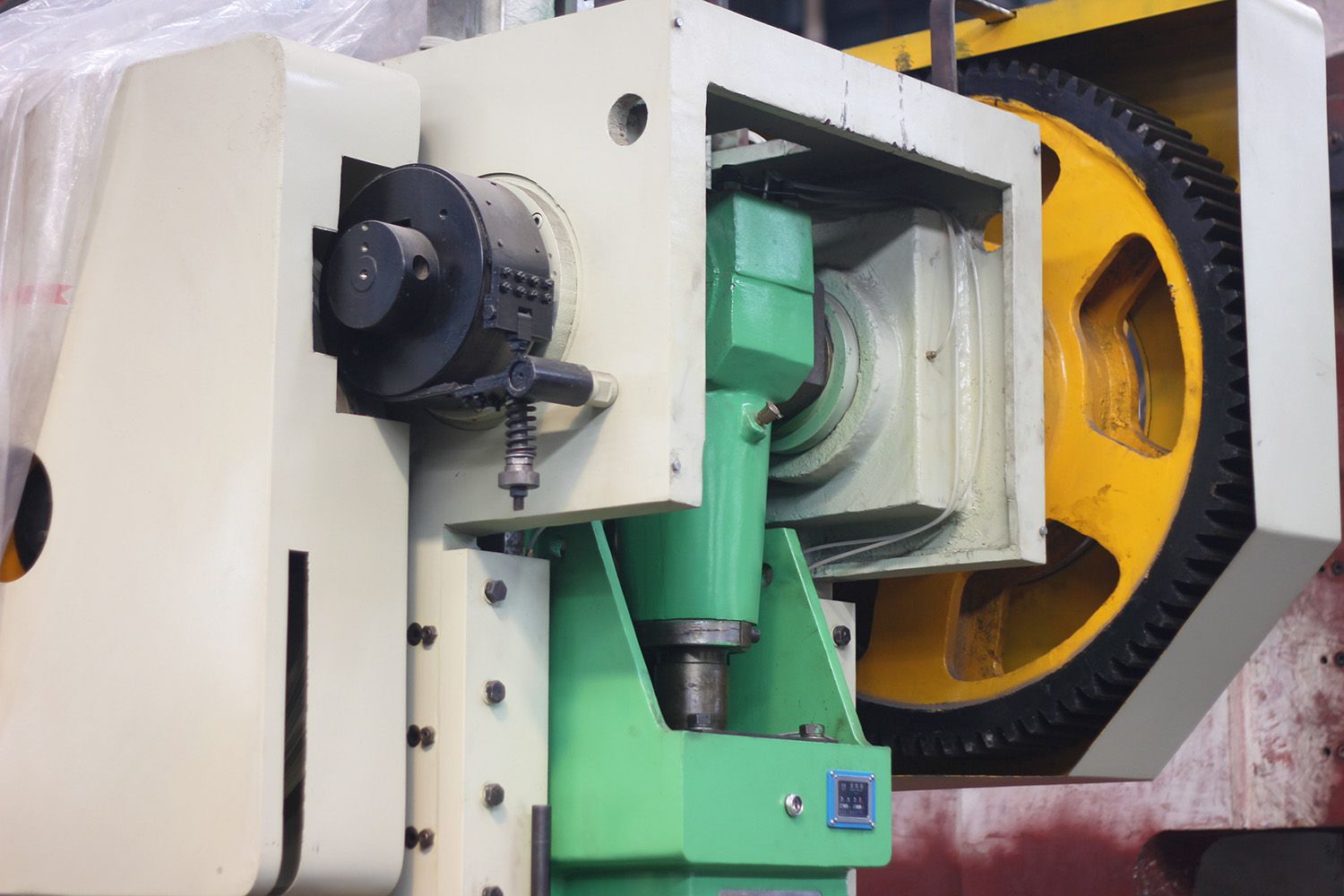

Structure:1.Welded body with steel plate ,higher strength and stiffness.
        2.C type body, convenient for the processing of the die with larger size material
        3. Adopts horizontally placed crankshaft, easily maintain.
        4. Rigid clutch, simple structure
        5. Casting body, stable performance
        6.Fixed with the slide,the overload protector will be damaged to protect the machine         from overloading.

Feature: 1.Higher strength and stiffness. economical presses.
       2.Simple structure, excellent versatility,and easy to maintain and operate

Mechanical Eccentric Power Press Punching Machine Jc21-63ton

Model Specification		Unit	JC21-63ton	JC21-80ton	JC21-100ton	JC21-125ton	JC21-160ton	JC2-200ton
Nominal force		kN	630	800	1000	1250	1600	2000
Stroke under nominal force		mm	4	5	5	6	6	6
Slide block stroke		mm	80	100	100	120	140	160
Number of stroke		times/min	50	50	40	38	40	36
Max die set height		mm	250	300	300	320	350	390
Die set height adjustment		mm	50	60	80	100	110	110
Distance from slide block center to the frame		mm	250	260	310	350	380	400
Workable dimensions(F·B×L·R)		mm	*440670**	470*750	570*860	650*1000	710* 1120	740*1300
Dimensions of worktable		mm	Φ180	Φ180	Φ180	Φ200	Φ220	Φ180
Thickness of bolster		mm	70	80	90	110	130	160
Dimensions of slide block(F·B×L·R)		mm	*240280**	260*300	360*450	420*520	440*560	580*760
Size of the handle hole(Diameter×Depth)		mm	*Φ5070**	Φ60*80	Φ60*80	Φ60*80	Φ65*90	Φ65* 90
Distance between columns of body		mm	320	360	460	520	640	740
Motor	Type		Y132S-4	Y132M-4	Y132M-4	Y160L-6	Y180L-6	Y200L1-6
Motor	Power	Kw	5.5	5.5	7.5	11	15	18.5
Outline dimension(F·B×L·R×H)		mm	14401100 2430	16501265 2450	18201400 2850	19001650 2850	20401765 3200	23801950 3520
Net weight		kg	4150	5400	6420	9500	12500	16200

Model Specification		Unit	JC2-250ton	JC21-315ton	JC21-400ton	JC21-500ton	JC21-630ton	JC21-800ton
Nominal force		kN	2500	3150	4000	5000	6300	8000
Stroke under nominal force		mm	6	6	6	10	10	10
Slide block stroke		mm	160	180	180	140	140	140
Number of stroke		times/min	35	35	35	35	35	30
Max die set height		mm	450	500	500	500	500	500
Die set height adjustment		mm	110	120	120	120	120	120
Distance from slide block center to the frame		mm	420	460	460	460	460	460
Workable dimensions(F·B×L·R)		mm	800*1400	880* 1500	880* 1500	880* 1500	880* 1500	880*1500
Dimensions of worktable		mm	Φ220	Φ250	Φ250	Φ250	Φ250	Φ250
Thickness of bolster		mm	160	180	200	220	240	250
Dimensions of slide block(F·B×L·R)		mm	600*780	700*930	700*930	700*930	700*930	700*930
Size of the handle hole(Diameter×Depth)		mm	Φ70* 100	Φ70*100	Φ70*100	Φ70*100	Φ70*100	Φ80*100
Distance between columns of body		mm	740	820	840	840	840	760
Motor	Type		Y200L2-6	Y225M-6	Y250M-6	Y280S-6	Y315S-6	Y315M-6
Motor	Power	Kw	22	30	37	45	75	90
Outline dimension(F·B×L·R×H)		mm	26302100 3750	27902450 4050	28502550 4100	29502600 4100	30502650 4200	32502650 4300
Net weight		kg	21000	27600	34260	37500	40400	50500
