Mechanical Press J23-25t, Mechanical Power Press, Punch Press Machine for Aluminum

Name: Mechanical Press J23-25t, Mechanical Power Press, Punch Press Machine for Aluminum
Brand: tool-buy.com
SKU: 762054095
Availability: InStock
Rating: 4.9 (65 reviews)

Price:	NegotiableUNIT
Trade Terms:	FOB,CFR,CIF
Min Order:	1Unit
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Shanghai Bohai Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	J23-25T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	250kn
Nominal Stroke:	2.5mm
Slide Stroke Length:	65mm
Die Shut Height Adjustment:	55mm
Throat Depth:	200mm
Distance Between Uprights:	270mm
Type:	High-Speed Punching Machine
Controlling Mode:	CNC
Automatic Grade:	Automatic
Power Source:	Hydraulic Pressure
Precision:	High Precision

Product Description

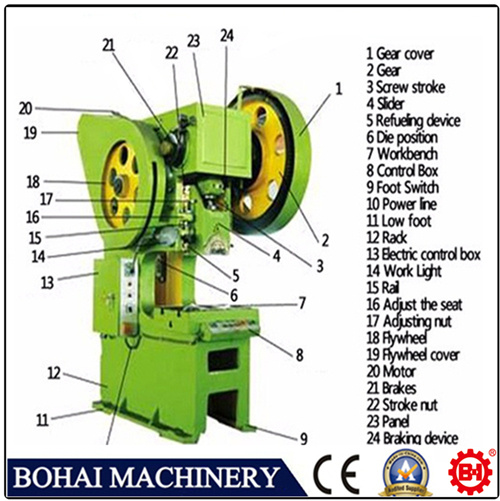

Model:Mechanical press J23-25T,mechanical power press,punch press machine for aluminum

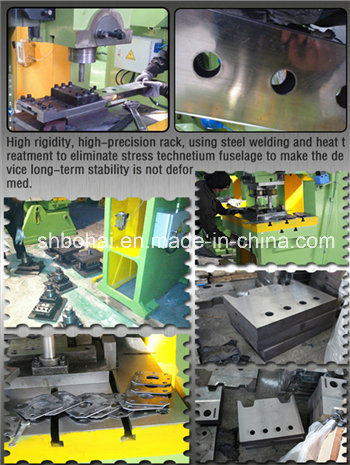

1.C-Type Steel-welded frame, high rigidity and less deformation

Compact,wide body frame eliminating vibration for improved ide life and machine.

2.Rigid construction guarantees exact die mating,Six-side
long rectangle guides of the slide with high moving precision
and high accuracy, extending the service life of the die.

3.Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces,shaft deflection, increases gear life.

4.High accuracy,high efficiency,simple and convenient operation,good performance,favorable price and best service.

Transmission control and brake systems:

1.The Press adopts the low inertia combined dry pneumatic friction clutch and brake from OMPI, Italy, Smoother press performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life.

2. Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor. which is stepless speed regulation within a certain range and enlarge the area of craf.

3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

Ram adjustment and Structure

The RAM is a whole cast form construction which adopts imported hydraulic overload protector from Showa, Japan with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press.

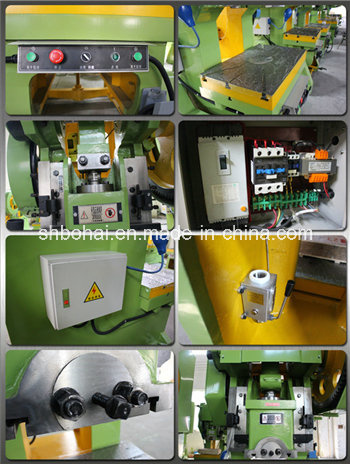

Electrical system and the safety interlock

1. Electrical components are imported or from Sino-foreign joint
Venture,in accordance with international standards,reliable safety,
long life,good anti-interference ability,a radiation unit is fitted in
electrical cabinet.

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

J23 series pressure machines is common type open type can the pressure machine
1. Its structure is simple, operation convenience, function credibility, the usage maintain convenience.

2. J23 series shut type list orders the pressure machine fuselage of airplane srtaight line form design, well balanced to be subjected to dint, constant form, rigid and strong.

3. Extemely high closing height, pack the mould space big, slippery piece the piece six noodles directionn, the accurancy is high, stability good.

4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type, oil road, electric circuit, beauty clean and net, have a safety, dependable type more.

5. The hand operation button the switch match pressure machine national security standard.

Standard Equipments:

1) Wet clutch

2) PLC

3) Hydraulic overload protecting pump

4) Touch screen

5) Cam controller

6) Die height adjusted motor (JH21-60 and upon models)

7) Auto lubrication system

8) Manual lubrication system

9) Double hand control panel

10) Electronic crankshaft angle indicator

11) Predetermined counter

12) Balance cylinders for slide and upper die

13) Work light

14) Joint for air

15) Joint for miss-feeding

16) Absorbing pads

Optional Equipments:

1) Dry clutch

2) Light curtain

3) Foot pedal

4) Die cushion

5) Inverter

6) Variable speed motor

7) Auto feed shaft

8) Die quick change device

Technical Data

ITEMS		UNIT	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40	J23-63	JB23-63	J23-80	J23-100	J23-125
Capacity		KN	63	100	160	250	350	400	630	630	800	1000	1250
Nominal stroke		mm	2	2	2	2.5	3.5	6	6	7	7	7	8
Slide stroke length		mm	35	45	55	65	80	90	110	110	120	140	150
Stroke times per minute		spm	170	145	125	55	50	45	50	40	38	38	38
Max. Die set height		mm	150	180	220	270	290	320	360	390	440	480	500
Die shut height adjustment		mm	30	35	45	55	60	65	80	80	90	100	100
Throat depth		mm	110	130	160	200	220	250	260	310	350	380	390
Distance between uprights		mm	150	180	220	270	280	340	350	420	450	560	550
Slide bottom size	L-R	mm	140	170	200	250	250	300	300	400	430	540	540
Slide bottom size	F-B	mm	120	150	180	220	220	260	260	360	360	480	480
Stemhole size	Diameter	mm	30	30	40	40	40	50	50	50	60	60	60
Stemhole size	Depth	mm	55	55	60	60	60	70	70	70	75	75	75
Bolster size	L-R	mm	310	370	450	560	610	700	760	860	950	1080	1100
	F-B	mm	200	240	300	370	400	460	480	570	650	710	720
	Thickness	mm	30	35	40	50	60	65	80	80	100	120	130
Table hole diameter		mm	60	80	100	120	130	150	180	180	200	220	240
Max. inclinable angle		°	45	35	35	30	30	30	20	20	20	15	13
Bolster surface height		mm	750	730	750	800	815	850	810	850	850	850	860
Over all dimensions	L-R	mm	620	665	847	950	1058	1335	1350	1500	1715	1790	1790
	F-B	mm	780	900	1150	1345	1460	1721	1810	1958	2060	2404	2504
	Height	mm	1503	1658	1910	2130	2225	2488	2740	2868	3290	3625	3715
Distance between foundation bolts	L-R	mm	314	394	450	600	650	750	850	920	1010	1130	1110
Distance between foundation bolts	F-B	mm	530	610	780	920	1020	1060	1180	1300	1360	1550	1710
Motor power		kw	0.75	1.1	1.5	2.2	4	5.5	5.5	7.5	7.5	11	11
Weight		kg	400	576	1085	1780	2650	3540	4550	5500	7390	10800	12035

The above date is just for your reference.if there is any disaccord please refer to actual adate.
