| Prod Model: |
NS-1011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White/Sliver |
| Cofiguration: |
Standard |
| Oscillations: |
0-18000 Ocs/ Min |
| Temp.Rise: |
Less Than 25 Degree |
| Noise: |
Less Than 60dB |
| Recommendations: |
Joint & Thoracic OPS |
| Certifications: |
Germany Ce 0123 & ISO |
| Kind: |
Orthopedics |
| Certification: |
ISO13485 |
| LCD Display: |
Without LCD Display |
| Type: |
Orhtopedic Surgery |
| Group: |
No Limit |
| Source: |
/ |
| Anesthesia: |
/ |
| Type Of Operating Light: |
/ |
Product Description

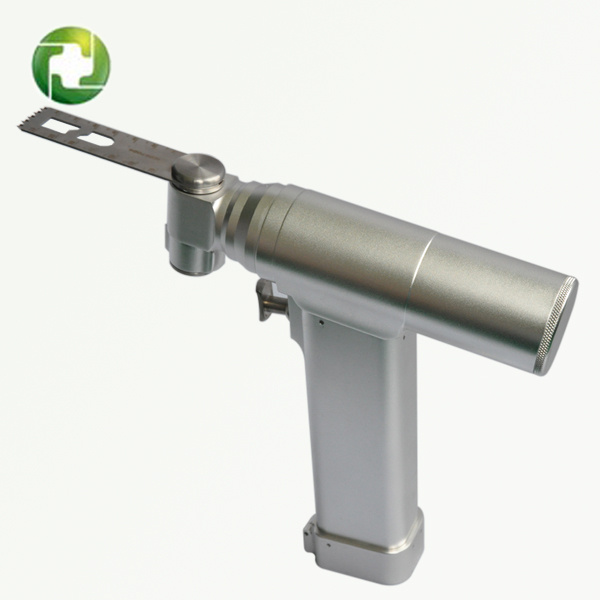

Medical Device Cutting Saw for Knee Joint Surgeries (NS-1011)
Application:
For application in cutting bone in joint replacement & trauma & thoracic operation
Working Voltage: 14.4V
Output Power: 95W
Unit rise in temperature: ≤ 30° C
Torque(N. M): /
Oscillations (osc/min): 0-18000
Speed(r. P. M): /
Swings (° ): 5 ° C
Sterilization: 135 ° C
Noise(db): ≤ 65
Packing
1. One set into a carton then put into out box
2. One set into an aluminum box then put into out box
3. One set into a sterilization case then put into out box
Notes:
1. Sterilize temperature ≤ 135 ° C, if the temperature is over 135 ° C, the motor will be damaged.
2. The battery cannot be sterilized, it is not autoclavable.
3. The medical electric drill, saw only the equivalent of medical doctors or professional use in a short time, can not use a long time continuously.
4. Charger power cord should not be traces of oil, solvents and other chemicals, erosion or mechanical damage, if it is found to be immediately replaced.
5. Users may not disassemble or repair, or responsibility by the user, the Company is not responsible for repairs. Man-made damage is not covered under warranty, the costs is incurred by the users themselves.
6. The tools need repairing during the warranty period, should be packaged well before transportation.
Standard Configuration:
1. One hand piece
2. One battery
3. One charger
4. Two saw blades
5. One sterilization channel
6. One aluminum box
Additional battery is chargeable
Warming tips for your reference:
Recommandations for Commonly Used Configuration: Joint Replacement Operation: Oscillating Saw, Acetabulum Reaming DrillTrauma Operation: Canulate Drill, Bone Drill, Torque LimiterCranial Operation: Cranial Drill, Cranial Bur, Bone DrillThoracic Operation: Sternum Saw, Oscillating Saw, Bone Drill, Overhual Saw
