| Prod Model: |
ND-1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
Less Than 60dB |
| Applicaton: |
Trauma,Cranial, Thoracic |
| Degree Of Accuracy: |
High Precision |
| Certifications: |
Germany Ce 0123 & ISO Certificates |
| Kind: |
Orthopedics |
| Certification: |
ISO13485 |
| LCD Display: |
Without LCD Display |
| Type: |
Truma Surgery |
| Group: |
No Limit |
| Source: |
/ |
| Anesthesia: |
/ |
| Type Of Operating Light: |
/ |
Product Description

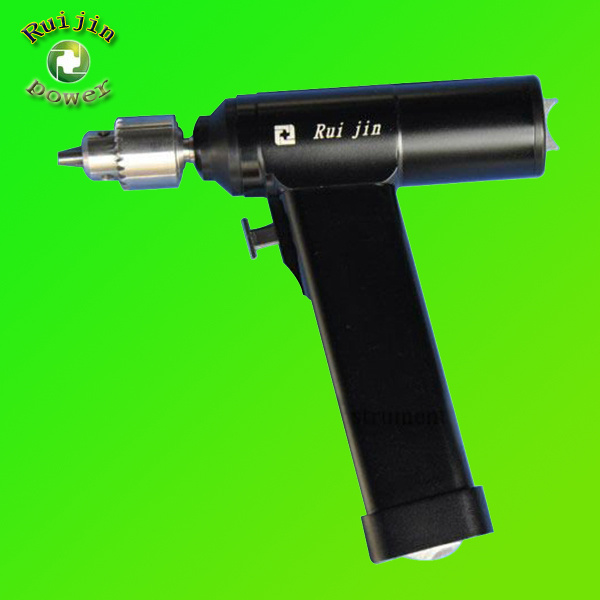

medical device hand tool electric bone drill for orthopedic surgery (ND-1001)
I: Professional surgical power tool drill manufacture.
II: Varible speed, convenient, high coaxiality, lower-noise
III: Surgical power tool motor and electric.
IV: Autoclavable and stainless steel.
2: Standard configuration
I: One drill chuck with key.
II: One battery
III: One charger
IV: One hand piece
: One sterilizing channel
VI: One aluminium box
3: Technical merits
I: Autoclavable
II: We can autoclavable for 135 ° C (Improved type ≤ 155 ° C), with 1.6Mpa, in this way the bacilli and virus which can not killed by the suffocating will be killed.
III: Used for internal fixation with steel plate.
IV: We use environment friendly nickel-metal hydride battery.
V: The machine has very low noise.
4: Payment terms
I: MOQ: 1 piece
II: Port: Shanghai
III: Payment terms: T/T in advance or wester union.
: Delivery time: Within 3 days after payment
5: Please note: If your source is 110V/60Hz, we can send you a transformer for change. And thanks for your attention of our surgical power tool drill, any further question, please contact me freely.
Hand piece working voltage 14.4V
Hand piece output power 20W
Hand piece unit rise in temperature 25 degree
Charger input power AC 220V, 50Hz
Charger output power 14.4V, 700mA
Charger input power 30va
Battery voltage 14.4V
Battery charging time about 3 hours
Non-loaded speed 1100r/min
Non-loaded noise 75db(a)
Radial run-out 0.5mm
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
