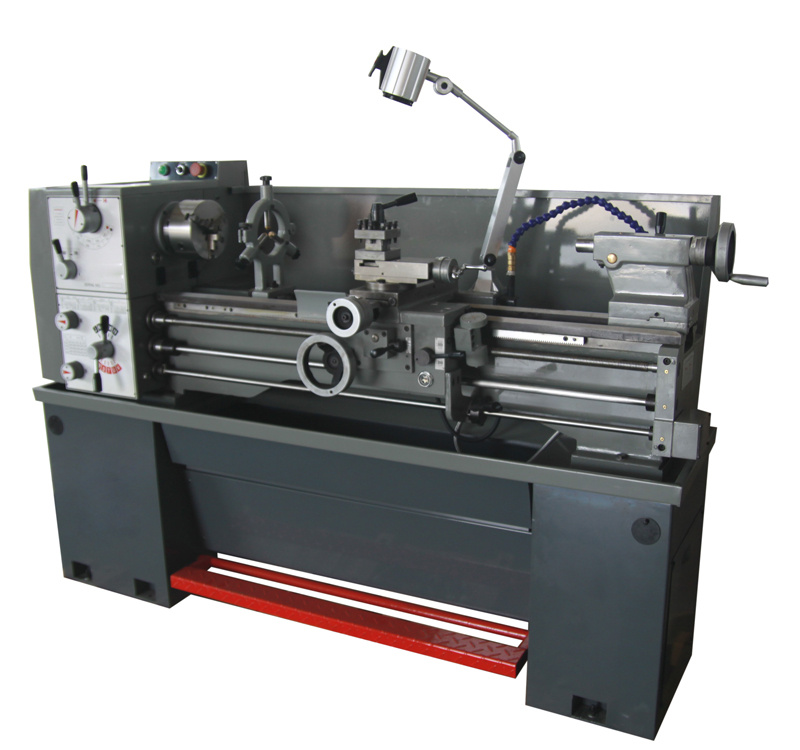

Metal Bench Cutting Lathes Machine C0632A
| Price: |
US $ 2500-3100SET |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
C0632A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery: |
2 Months After Order Confirmed |
| Color: |
Made to Order |
| Voltage: |
Optional |
| Spindle Bore: |
38mm |
| Swing Over Bed: |
330mm |
| Spindle Speed: |
70-2000r/Min |
| Bed Width: |
186mm |
| Bed Length: |
500/750/1000mm |
| Main Motor: |
1.5 Kw |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Floor-type |
| Precision: |
Normal Precision |
| Processing Accessory: |
Manual Lathe |
| Tool Holder: |
4-Way Tool Post |
Product Description
C0632A/lathe machine/lathe/lathes/cutting machine/cut machine/metal lathe/mini lathe

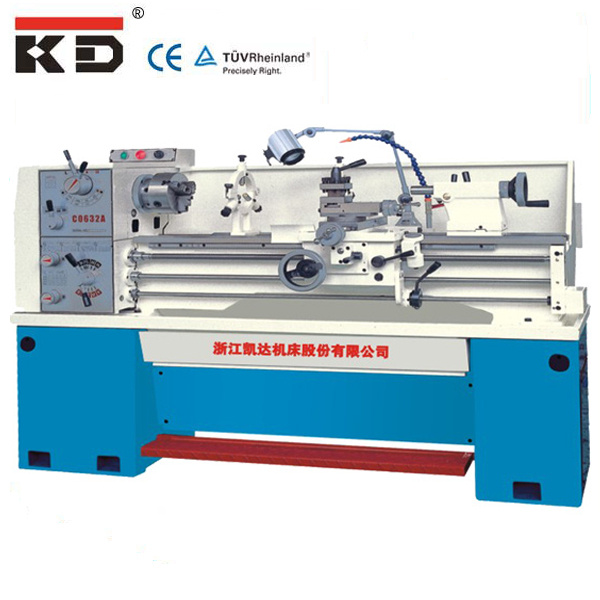

Metal Bench Cutting Lathes Machine C0632A

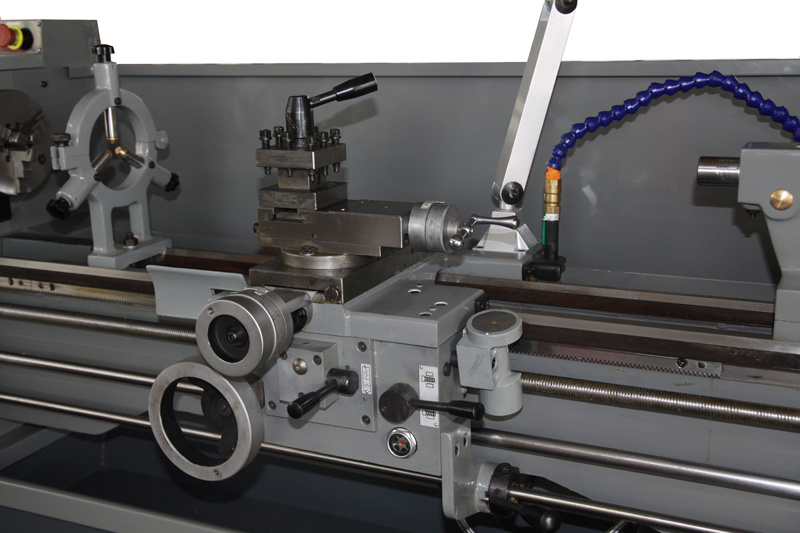

PRODUCT FEATURES:1. Precision ground and hardened bed ways
2. The spindle is supported with precision roller bearings
3. Head stock gears are made of high quality steel, ground and hardened
4. Easy operating speed change leversSTANDARD ACCESSORIES:160mm 3-jaw chuck;
200mm 4-jaw chuck;
300mm face plate;
Steady rest;
Follow rest;
Tool box;
Taper dead center;
Live center;
Spindle sleeve;
Chuck wrench;
Key for cam lock;
Tool post wrench;
Operator's manual;
Test record OPTIONAL ACCESSORIES:Chuck cover;
Tool post cover;
Leadscrew cover;
Tapper attachment;
Quick change tool post;
DRO;
| TECHNICAL SPECIFICATIONS |
| MODELS | C0632A |
| CAPACITY |
| Max.swing over bed | 330mm (13") |
| Max. swing over gap | 476mm |
| Max.swing over slide | 198mm |
| Width of bed | 186mm |
| Max.length of workpiece(two centers) | 20"(500mm)/30"(750mm)/ 40"(1000mm) |
| SPINDLE |
| Spindle nose | D4 |
| Spindle bore | 38mm |
| Taper bore of spindle | M.T.NO.5 |
| Steps of spindle speed | 8 |
| Range of spindle speed | 70~2000rpm |
| FEED |
| Range of longitudinal feeds | 0.0026-0.040in/r (0.0067~1.019mm/r) |
| Range of cross feeds | 0.0009-0.0138in/r (0.018~0.275mm/r) |
| THREADING |
| Inch threads | 3-1 /2~80T.P.I/36 |
| Metric threads | 0.45-10mm/ 27kinds |
| Diametral threads | 7-160D.P/32 |
| Moduler threads | 0.25 ~ 5M.P/20 |
| LEADSCREW |
| Diameter of leadscrew | 22mm (7/8") |
| Pitch threads of leadscrew | 4mm or 8TPI |
| TAILSTOCK |
| Travel of tailstock quill | 95mm |
| Taper bore of tailstock quill | M.T.NO.3 |
| POWER |
| Power of main motor | 2.4kw(3HP), 3Ph, 4P, 60Hz, 230V |
| Coolant pump motor power | 0.04kw(0.055HP) |
| OTHERS |
| Electric motor | 2HP(1.5KW)110V or 220V(1PH) |
| 220V or 380V(3PH) |
| Net weight/Gross weight(1000mm) | 400/495/595 |
| STANDARD DEVICES OR ACCESSORIES |
| ITEMS | REMARK |
| 1. Main motor | China brand |
| 2. Spindle bearing | China brand |
| 3. Main electrical component | German brand |
| 4. Coolant pump | China brand |
| 5. Stead rest | China brand |
| 6. Follow rest | China brand |
| 7. 4-way tool post |
|
| 8. Tailstock |
|
| 9. 3-jaw chuck | 160mm |
| 10. 4-jaw chuck | 200mm |
| 11. Face plate | 300mm |
| 12. Working light |
|
| 13. Foot brake |
|
| 14. Splash guard( below 2000mm: overall length; 3000mm: moved) |
|
| 15. Tool box including: |
| 1) Flat screw driver | 3" |
| 2) Cross screw driver | 3" |
| 3) Open ended wrench | 10/12,9/11, 12/14 |
| 4) Hex socket wrench | 2.5,3,4,5,6,8 |
| 5) Taper dead center | Morse NO.3 |
| 6) Live center | Morse NO.3 |
| 7) Spindle sleeve | Morse NO.5/3 |
| 8) Chuck wrench |
|
| 9) Key for cam lock |
|
| 10) Tool post wrench |
|
| 11) Change gears |
|
| 13) Oil gun |
|
| 14) Paint can |
|
| 16) Operator's manual |
|
| 17) Test record |
|
| 18) Spare parts |
|
| The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation. |
| OPTIONAL DEVICES OR ACCESSORIES |
|
|
| ITEMS | EXTRA CHARGE |
| Chuck guard |
|
| Tool post guard |
|
| Curtain guard |
|
| 2-axe DRO |
|
| 3-axe DRO |
|
|
|
|
| Quick change tool post |
|
| *Different devices and accessories can be combined according to customer's requirement. |
DELIVERY:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. PAYMENT:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)WARRANTY:The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)Our mission:Kaida is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines. We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005 to ensure the best in quality.Agents wanted:We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop KD to a global brand. Wherever you are from, we are looking forward to explore new market with you.
FAQ : 1. Are you a factory or trading company ?
RE: Kaida was founded in 1952 and has a history of more than 60 years in manufacturing lathes. Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise. In 1992, we began to explore overseas market step by step. Gradually, our partners from around the world become more and more. We believe that a brighter further is waiting for us. 2. What's your advantage?
RE: We have strong R&D ability which can support us to offer "Turnkey Engineering Service"
-Technology Assessment;
- Process Analysis
- Jigs planning
- Production process
- Trial cut processing
- Education & Training
3. Question : Where is your factory located ? How can I visit there ? RE: We are located in Zhuji City. Which is only 2 hours' away from Shanghai by train, and 20 mintues' from Hangzhou. Also you can fly to Hangzhou Airport, it is only 45 minutes and we will pick up you.

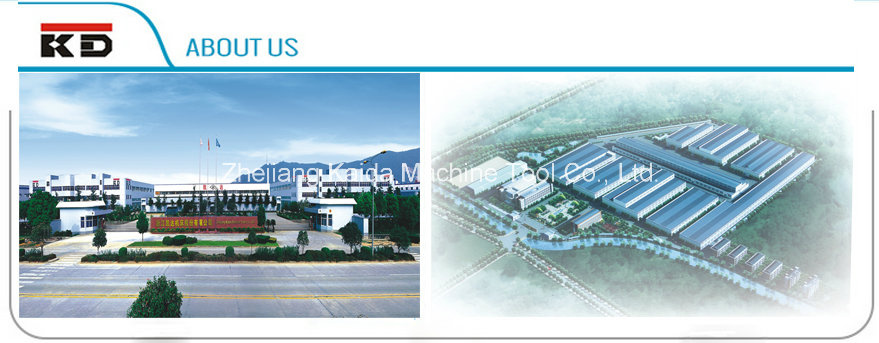

Zhejiang Kaida Machine Tool Co., Ltd
Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.
Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.
We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.
We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.
As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.
We are fully confident to meet any challenges or opportunities that present to us.
