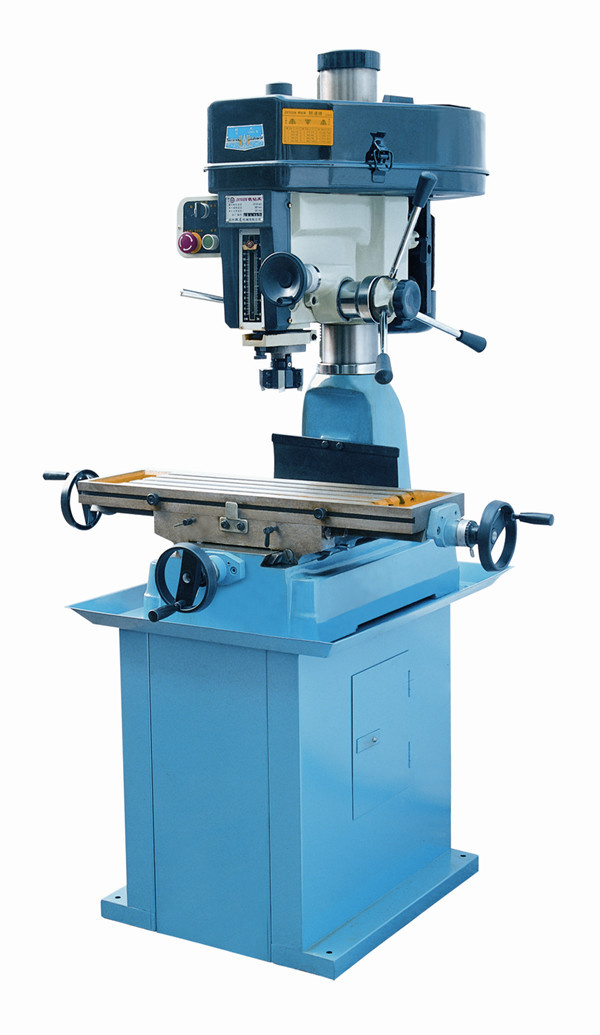

| Prod Model: |
ZX7032 |
| Max Drilling Capacity: |
31.5mm |
| Width Of Face Milling: |
80mm |
| Diameter Of Vertical Milling: |
22mm |
| Spindle Travel: |
120mm |
| Type: |
Rotary Hammer Drill |
Product Description
Below are all models and specification.
Any questions feel free to contact us.
Welcome to visit our website: http://www.hydraulicbaler.com/
| Model | ZX7045 | ZX-40 | ZX7032 | ZX7025 | ZX7020 | ZX7016 |
| Max drilling capacity | 45mm | 31.5mm | 31.5mm | 25mm | 20mm | 16mm |
| Width of face milling | 80mm | 80mm | 80mm | 63mm | 50mm | 50mm |
| Diameter of vertical milling | 28mm | 28mm | 22mm | 12mm | 12mm | 12mm |
| Spindle travel | 120mm | 120mm | 120mm | 90mm | 125mm | 100mm |
| Distance spindle axis to colum surface | 260mm | 272.5mm | 202mm | 202mm | 240mm | 193mm |
| Distance spindle nose to worktable | 475mm | 450mm | 460mm | 380mm | 375mm | 300mm |
| Taper of spindle | MT.4 | MT.3 | MT.3 | MT.3 | MT.2 | MT.2 |
| Spindle speeds range | 65-1380rpm | 95-1600rpm | 100-2150rpm | 100-2150rpm | 320-1320r/min | 320-2700rpm |
| Spindle speeds | 6 | 6 | 12 | 12 | 4 | 5 |
| Size of worktable | 820X240mm | 730X210mm | 730X210mm | 585X190mm | 560X200mm | 500X170mm |
Travel of worktable
(LxW) | 550X200m | 500X175mm | 500X175mm | 370X145mm | 280X150mm | 200X90mm |
| Overall height | 1050mm | 1100mm | 1095mm | 930mm | 980mm | 937mm |
| Motor power | 1100W 6steps | 750W 4steps | 1500W 4steps | 750W 4steps | 1100W 6steps | 550W steps |
| G.W./N.W. | 370/320kg | 307/275kg | 310/275kg | 225/185kg | kg | 150/145kg |
| Packing size | 105X100X122cm | 100X86X122cm | 105X100X122cm | 95X90X113cm | 90X73X96cm | 97X65X90cm |
Jiangyin Chuangda Machinery Industry Co., Ltd. is located in Zhouzhuang Town, Jiangyin City, Jiangsu Province. Our factory is specialized in producing Hydraulic balers, briquetting presses, Alligators, as well as firefighting equipment and machinery, etc.
Most of our machines are used in recycling process in recycling companies and steel factories, and they use our machines to help recycle and compress waste metal & non-metal materials to save the space for delivery and store, and also help reuse the waste materials.
We have 150 employees and 17 engineers and technicians, and our factory also cooperates with experts with rich experience and innovative technology, guaranteeing the good quality of our presses and improvement in R&D.
We sincerely welcome friends from recycling, metallurgy & other fields to visit our factory and cooperate with us. We have exported equipment to East Europe, South Africa, America, Asia, the Middle East, and many other worldwide countries and regions. We have pleasant cooperation with all our customers.
