Metal Engraving Machine for Sale Small Laser Cutter
| Price: |
US $ 17000-18000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Metal engraving machine for sale small laser cutte |
| X.Y.Z Movement Positioning Accuracy: |
±0.01/300mm |
| X.Y.Z Repeated Positioning Accuracy: |
±0.01mm |
| Work Stroke Of X/Y/Z/a: |
200mm X 100mm X 60mm X360° |
| Fast Moving Speed Of Idle Stroke: |
12m/Min |
| The Maximum Cutting Feed Speed: |
6m/Min |
| Spindle Motor: |
220V/1.5kw |
Product Description

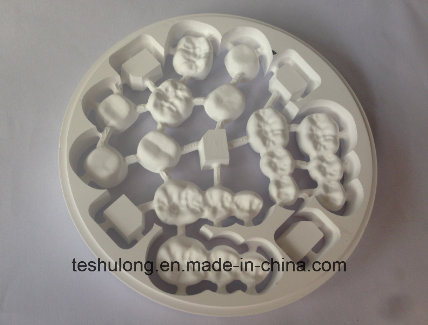

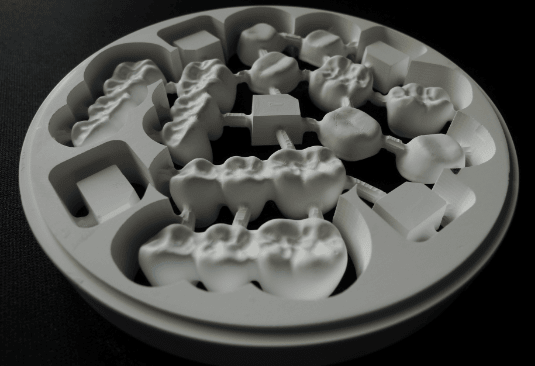

Metal engraving machine for sale small laser cutter Zirconia products :
Configuration of Metal engraving machine for sale small laser cutterI. Main parameter| Performance Index | Standard values | Notes |
| X.Y.Z Movement positioning accuracy | ±0.01/300mm | |
| X.Y.Z Repeated positioning accuracy | ±0.01mm | |
| Operating stroke of X/Y/Z/A axes | 200mm X 100mm X 60mm X360° | |
| Rapid moving speed of Idle running | 12m/min | |
| The maximum cutting speed | 6m/min | |
| Max tool diameter | ¢6 mm | |
| Overall dimensions | 620mm X 620mm X 700mm | |
II. Main configuration| Name | Model specification | |
| Guide rail of X.Y.Z axes | Rectangular linear rolling guide with P Grade | Taiwan Brand |
| | Grinding ball screw | Taiwan Brand |
| Spindle motor | 220v/1.5kw | 7000-60000rpm Pneumatic tool change spindle |
| Rotating shaft(The fourth shaft) | Harmonic drive | Servo drive,with Zero signal |
| Frequency converter | 1.5kw Speed promise | Taiwan Brand |
| Tool changer holder | 3 station including the location of tool checking instrument | Including interface of Zero signal |
| Controlling system | Four axis four linkage control system | |
| Driving system | AC servo | MITSUBISHI |
| Power voltage | Two-phase 220v/50Hz | |
| Weight | 300kg | |
Features of this series machines
1.Four-axis horizontal machine makes processing be with good stability, and the processing products with high surface finish quality. 3 tool changer
2. Small footprint, quiet environment, health, small pollution
3. Processing products: zirconia, wax type. This product processing video link address: http://v.youku.com/v_show/id_XMTU3MjQxNTg4NA==.html

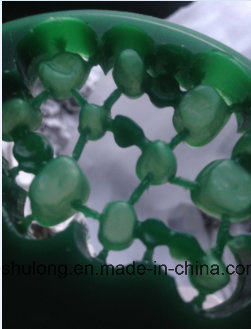

Wax type finished product:
Description:
The company headquarters and production base located in "China smart" city - changzhou city, jiangsu province economic development zone, is a high-tech private joint-stock enterprise, as the national science and technology innovation fund projects to undertake unit.
Our company focus on all kinds of high precision multi-function carved machine, engraving and milling machine and the development and application of metal drilling and tapping machine. The company has a professionala research and development team, mature manufacturing process control, and has a strict quality control system and perfect pre-sales, after-sales service system, has passed ISO9001 and 3 c certification, a number of products obtained national patent for invention or utility model patents.
My company's products sell well in domestic jade crafts, seal, hardware parts, automobile and motorcycle accessories, electronic instrumentation, measuring tool, denture, metal mold, fixture and other industries and fields, depth cooperation with the domestic many large enterprises, listed companies, colleges and vocational colleges, exported to southeast Asia, the Middle East, Africa and other regions and countries.
Main products:
1, TSL100120, 80100, 8080, 6060, such as heavy-weigh knife library series engraving and milling machine;
2, TSL6080, 6060, 5080, 5060, 4242, 4040, 3030, such as light-weigh libraries/four axis series of carved machine;
3, measuring tool (Vernier caliper) or hardware industry small screw drilling and tapping machine series;
4, TSL3020 vertical/horizontal series denture processing machine (tooth die engraving machine);
5, formulated in accordance with user requirements process solution, custom all kinds of CNC engraving machine or product processing required for automatic tooling fixture, etc.;
6, D scanner and 3D printer sales and application.
Product main features:
Structure of HT250/300 casting, two sections of the design, lathe bed and frame for the box structure, longmen for U the whole structure, the secondary tempering and outdoor natural aging for a long time, machine tool rigidity is strong, not deformation; Carrying Taiwan HIWIN high precision linear guide and ball screw, the configuration of international or domestic famous AC servo drive system and control system, the machine of high precision, good stability.
