Spindle Bore:
80 Mm
Type:
Horizontal Lathe
Processing Accessory:
Chuck CNC Lathe
Tool Holder:
Single-tool Holder CNC Lathe
Power Source:
Electric
Controlling Mode:
Artificial
Automatic Grade:
Semiautomatic
Setting Mode:
Floor-type
Precision:
High Precision
Product Description

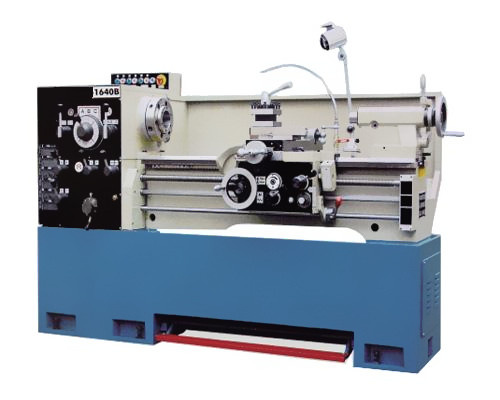

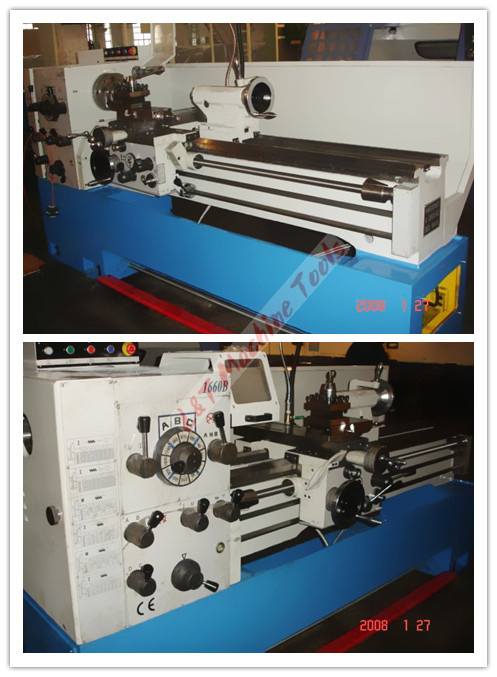

Features 1.The Max.swing over bed is 400mm 2.The width of bed is 300mm 3.The main motor power is 5.5KW
Standard: 3-jaw chuck Reduction sleeve Wrenches,centers coolant system 4-jaws chuck Face plate Steady rest Follow rest Driving board
Specification
LC1640B
LC1660B
Max.swing over bed
400mm(16″)
Max.swing over cross slide
210mm(81/4″)
Max.swing over gap
590mm(23″)
Distance between centers
1000mm(40″)
1500mm(60″)
Width of bed
300mm(115/4″)
Spindle nose(camlock)
90#
Spindle bore
80mm(31/5″)
Spindle speeds(12 steps)
48~1600 r.p.m.
Metric threads
0.5~7mm(21 kinds)
Inch threads
4~56T.P.I.(32 kinds)
Modile threads
0.5~7mm(21 kinds)
Diametral pitch threads
4~56T.P.I.(32 kinds)
Longitudial feeds range
0.059~0.831mm(0.002~0.033 in)
Cross feeds range
0.019~0.271mm(0.001~0.011 in)
Main motor power
5.5KW
Net/gross weight(kgs)
2000/2200
2200/2400
